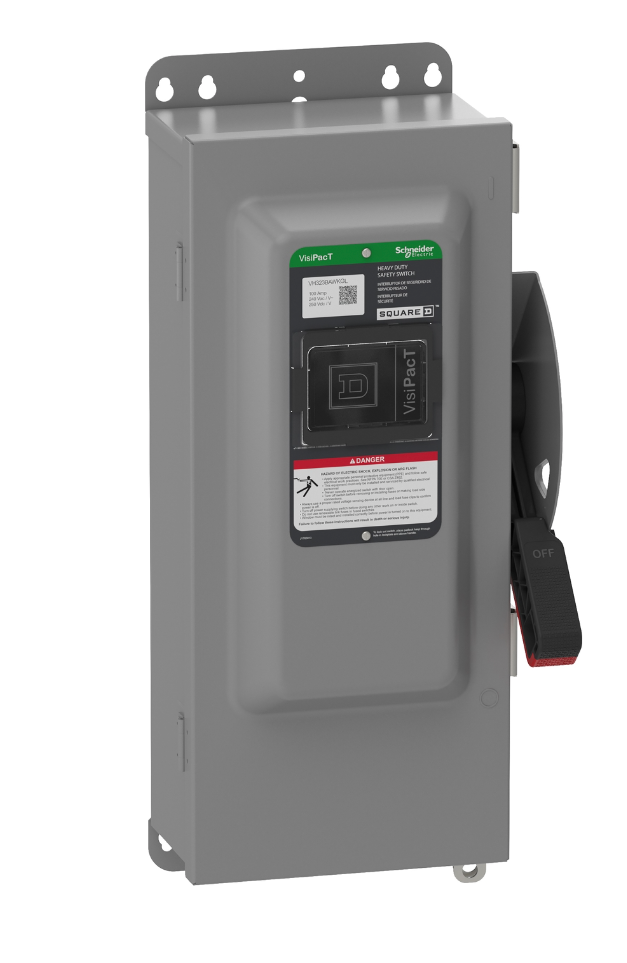

Square D VH363BAWKGL - Fusible Disconnect Switch 600V 100A (3-Pole NEMA 12)

Square D VH363BAWKGL is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This heavy-duty switch features a 600V AC voltage rating and 100A current capacity, providing robust electrical protection for three-phase systems. Constructed with a durable NEMA 12 enclosure, the unit weighs 20.94 lb and incorporates three poles in a single configuration design. The switch carries UL certification (file E2989), ensuring compliance with industry safety standards for industrial electrical components. Typical applications include motor control centers, industrial machinery, and power distribution systems requiring secure disconnection capabilities.

Key Features & Specifications

• Type: Fusible safety disconnect switch with manual operation
• Voltage Rating: 600V AC
• Current Rating: 100A
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• NEMA Rating: NEMA 12
• Switch Style: Fusible
• Certification: UL listed file E2989
• Weight: 20.94 lb
• Wire: 3-wire configuration
• Family: VH series
• Country of Origin: United States

Product Identification

• UPC: 060648589416
• GTIN: 03606485894164
