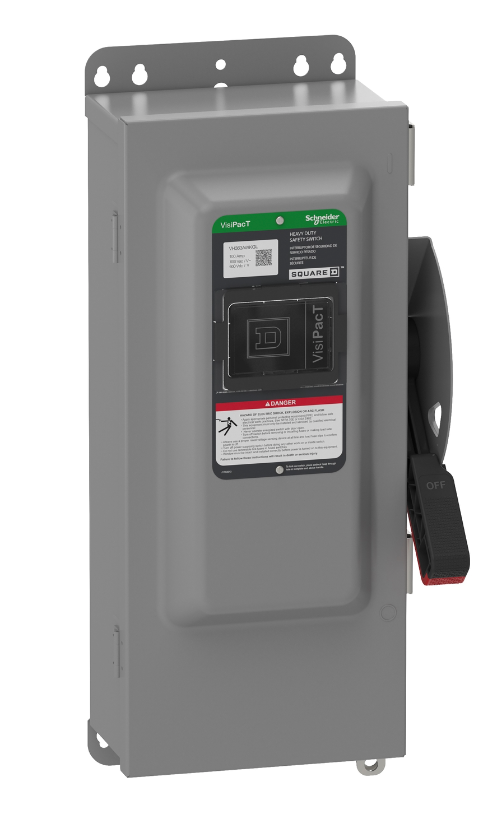

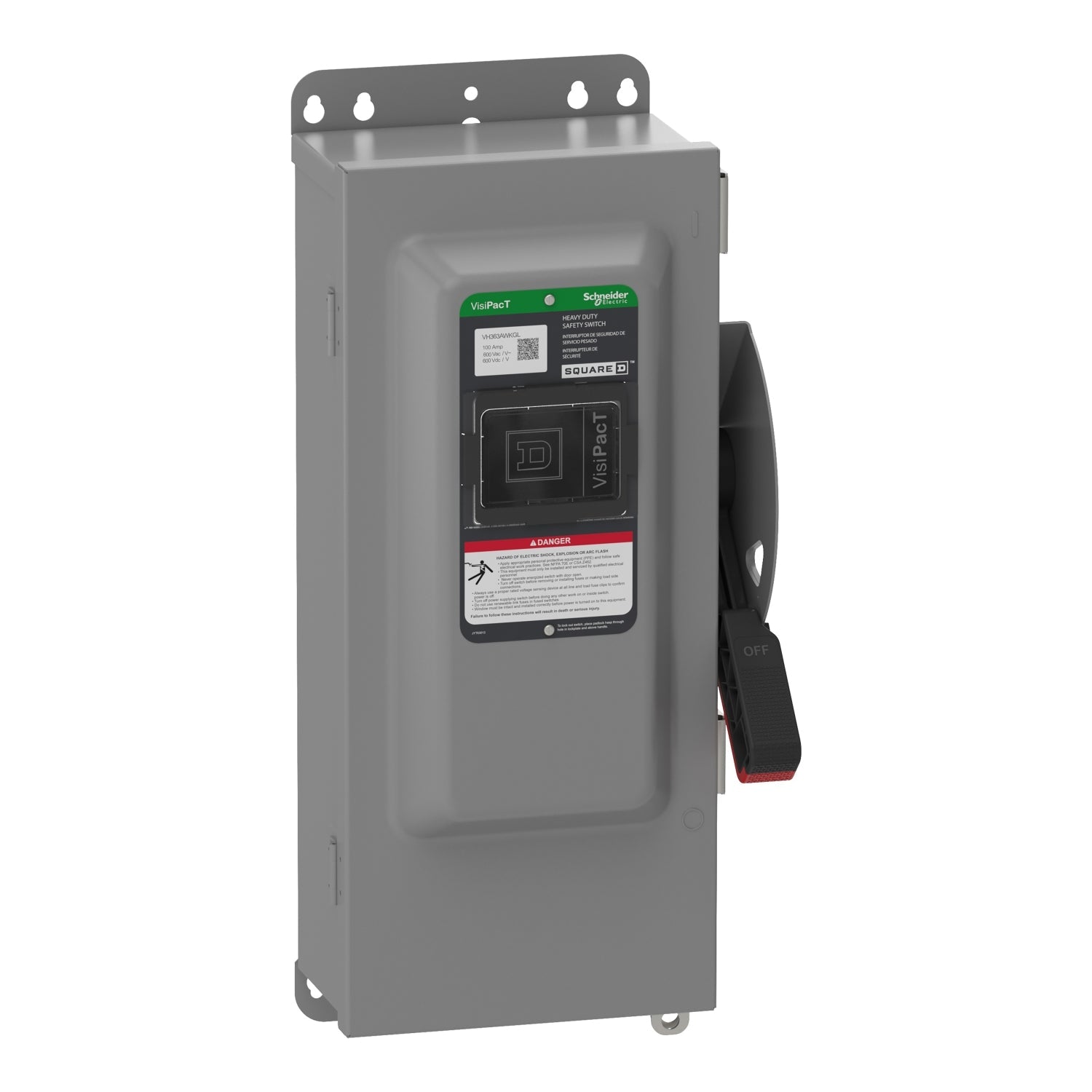

Square D VH363AWKGL - Fusible Disconnect Switch 600V AC/DC 100A (3-Pole NEMA 12)

Square D VH363AWKGL is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This UL-listed and EU RoHS-compliant unit features a 600V AC/DC voltage rating with 100A current capacity, housed in a NEMA 12-rated enclosure measuring 9" x 20.5" (228.6mm x 520.7mm) and weighing 20.94 lb. Its three-pole single-configuration design accommodates H, K, R, and J-class fuses for three-phase applications, meeting stringent safety standards for electrical protection in commercial and industrial environments.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 12 enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 9 in x 20.5 in (228.6mm x 520.7mm)
• Standards: UL listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control, HVAC systems
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 20.94 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589422
• GTIN: 03606485894225
