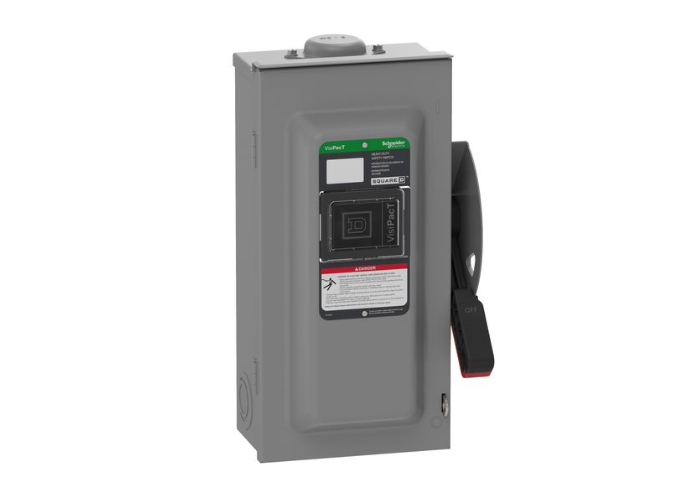

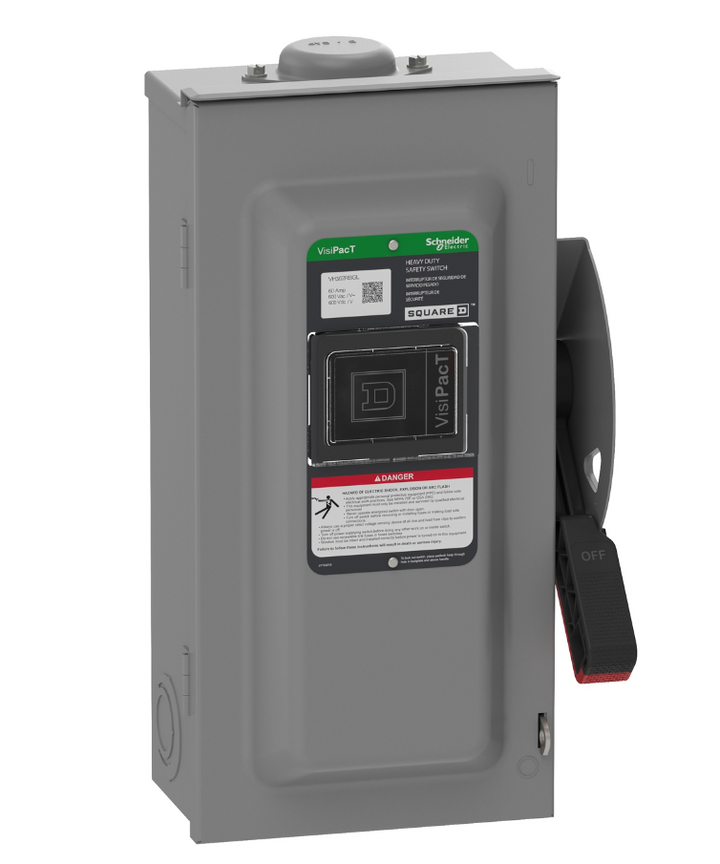

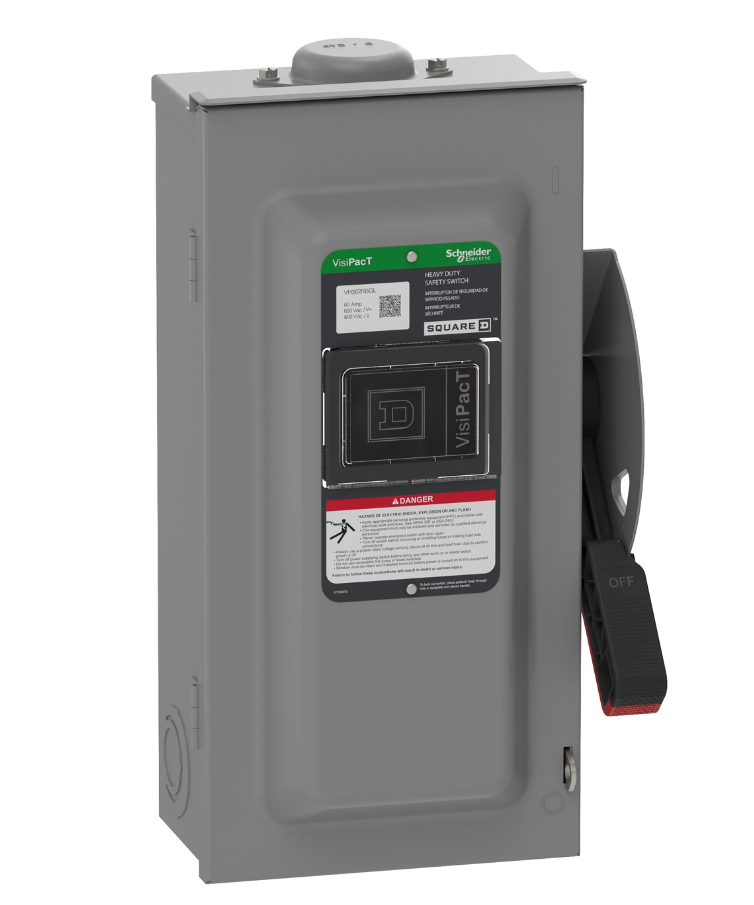

Square D VH362RBGL - Fusible Disconnect Switch 600V 60A (3-Pole NEMA 3R)

Square D VH362RBGL is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 3-pole switch provides reliable 600V AC power interruption with a 60A current rating for three-phase electrical systems. The unit features a compact industrial enclosure measuring 430.02 mm high × 112.78 mm wide × 78.49 mm deep and weighs 17.64 lb, constructed with NEMA 3R rated housing for outdoor weather resistance. UL listed under file E2985, this disconnect switch accommodates H, K, R, and J class fuses and is manufactured in the United States to meet industrial safety standards. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring secure power isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch with industrial enclosure
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 430.02 mm H × 112.78 mm W × 78.49 mm D (16.93 in × 4.44 in × 3.09 in)
• Weight: 17.64 lb
• Standards: UL Listed (File E2985), NEMA 3R
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• Fuse Class: H, K, R, J
• Wire: 3-wire configuration
• NEMA Rating: NEMA 3R
• Certification: UL Listed
• Country of Origin: United States

Product Identification

• UPC: 060648589405
• GTIN: 03606485894058
