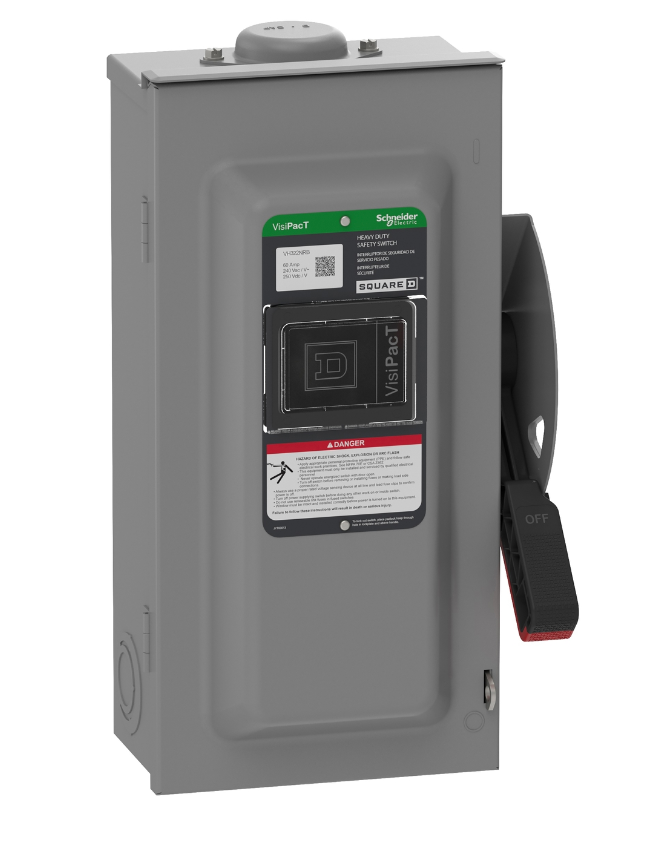

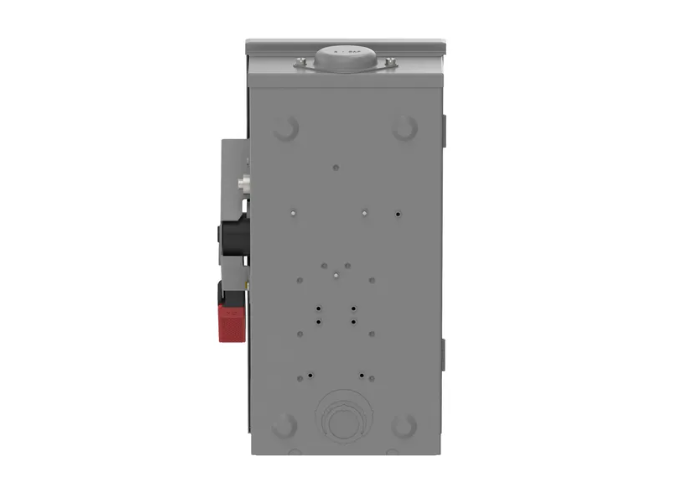

Square D VH362NRB - Fusible Disconnect Switch 600V AC/DC 60A 3-Pole (NEMA 3R Enclosure)

Square D VH362NRB is a fusible safety disconnect switch designed for industrial power isolation and circuit protection applications. This 3-pole switch provides reliable disconnection with a 600V AC/DC voltage rating and 60A current capacity, housed in a NEMA 3R rated enclosure measuring 9 x 18.5 inches and weighing 16.24 pounds. The unit accommodates H, K, R, and J class fuses and accepts copper or aluminum conductors from AWG 14 to AWG 3, complying with UL standards (file E2875) and EU RoHS requirements. This disconnect switch is engineered for three-phase industrial systems where safe maintenance and equipment isolation are critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole configuration
• Voltage Rating: 600V AC/DC
• Current Rating: 60A
• Dimensions: 9 in x 18.5 in
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power isolation, circuit protection
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Nema Rating: NEMA 3R
• Fuse Class: H, K, R, J
• Wire: 3
• Wire Size: AWG 12 to AWG 3, AWG 14 to AWG 3, Aluminum, Copper
• Weight: 16.24 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589394
• GTIN: 03606485893945
