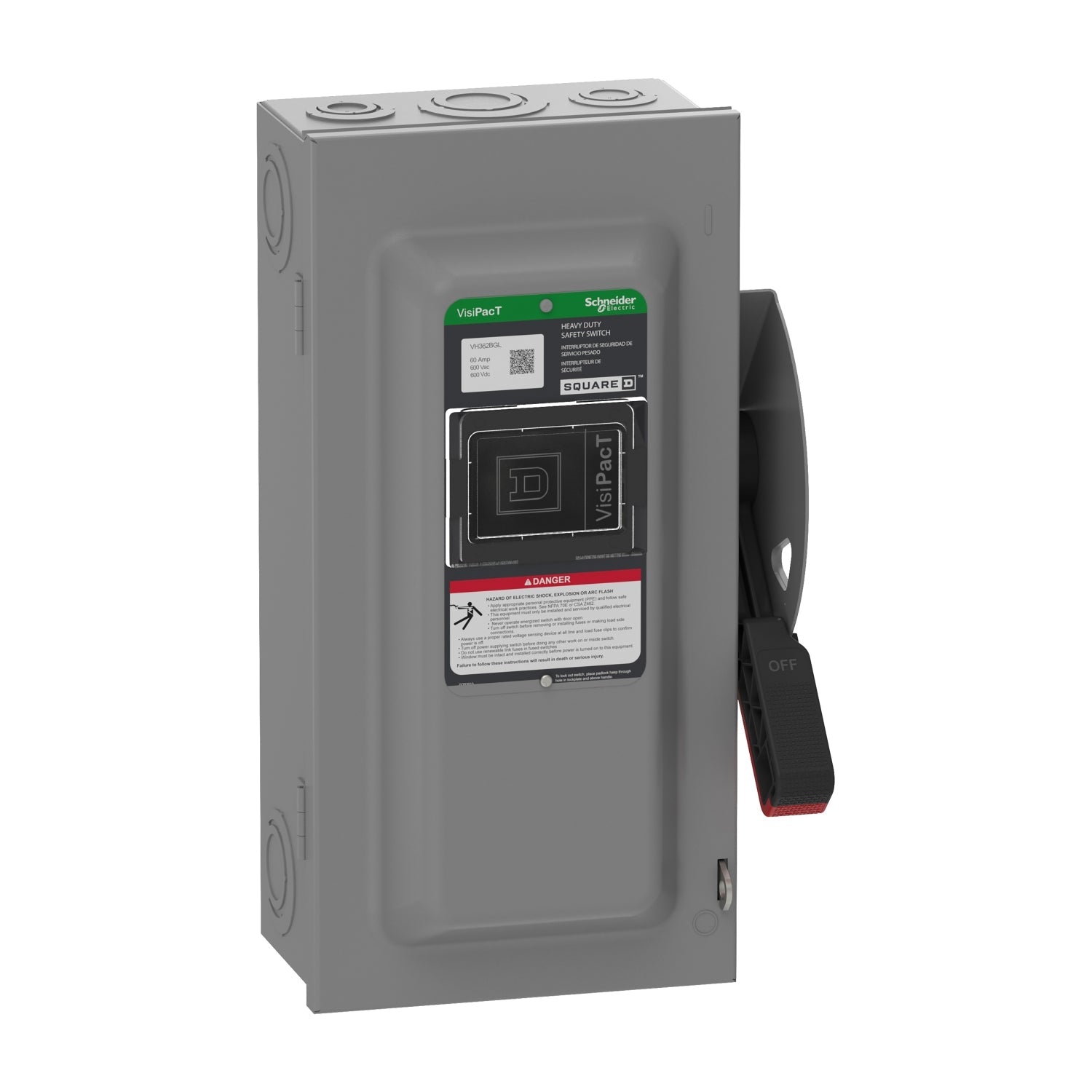

Square D VH362BGL - Fusible Disconnect Switch 600V 60A (3-Pole NEMA 1)

Square D VH362BGL is a fusible safety disconnect switch designed for industrial electrical isolation and circuit protection. This 3-pole switch operates at 600V AC with a 60A current rating, providing reliable power interruption for three-phase systems. The unit features a robust NEMA 1 enclosure measuring 468.78 mm high × 143.26 mm wide × 136.65 mm deep and weighs 17.64 lb, constructed to withstand demanding industrial environments. It carries UL certification (file E2975) and complies with industry standards for safety disconnects. Typical applications include motor control centers, industrial machinery, and power distribution systems where Class J fuse protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole configuration
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 468.78 mm H × 143.26 mm W × 136.65 mm D (18.456" × 5.64" × 5.38")
• Standards: UL listed (file E2975), NEMA 1 rated
• Applications: Industrial machinery, motor control centers, power distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single unit
• Phase: 3-phase
• Poles: 3
• Fuse Class: J
• Wire: 3-wire system
• Enclosure: NEMA 1
• Weight: 17.64 lb
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589398
• GTIN: 03606485893983
