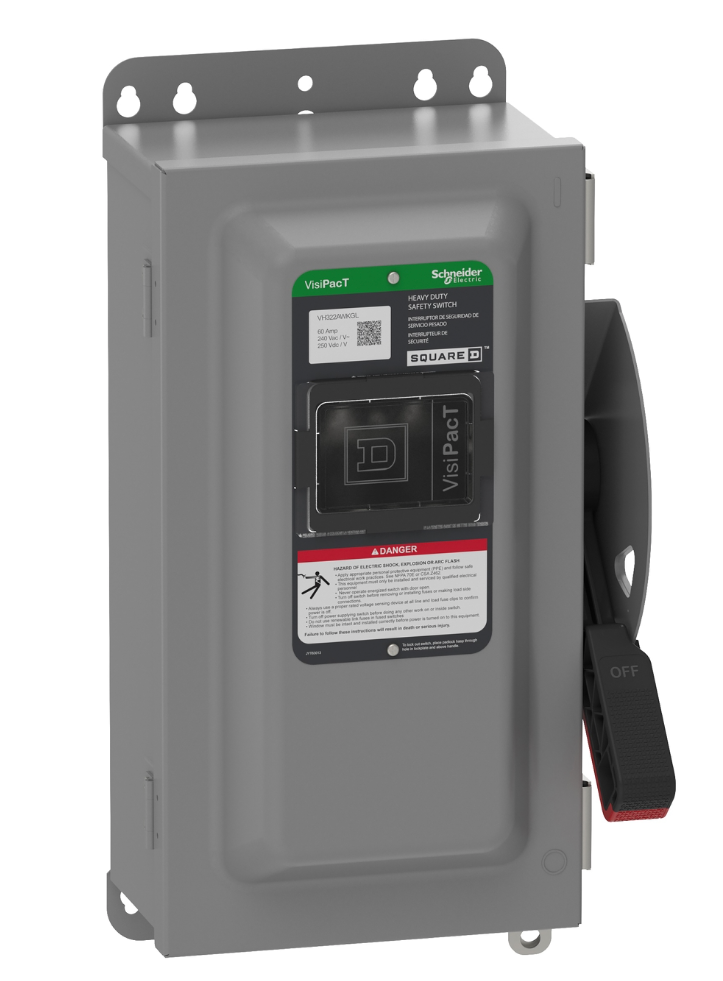

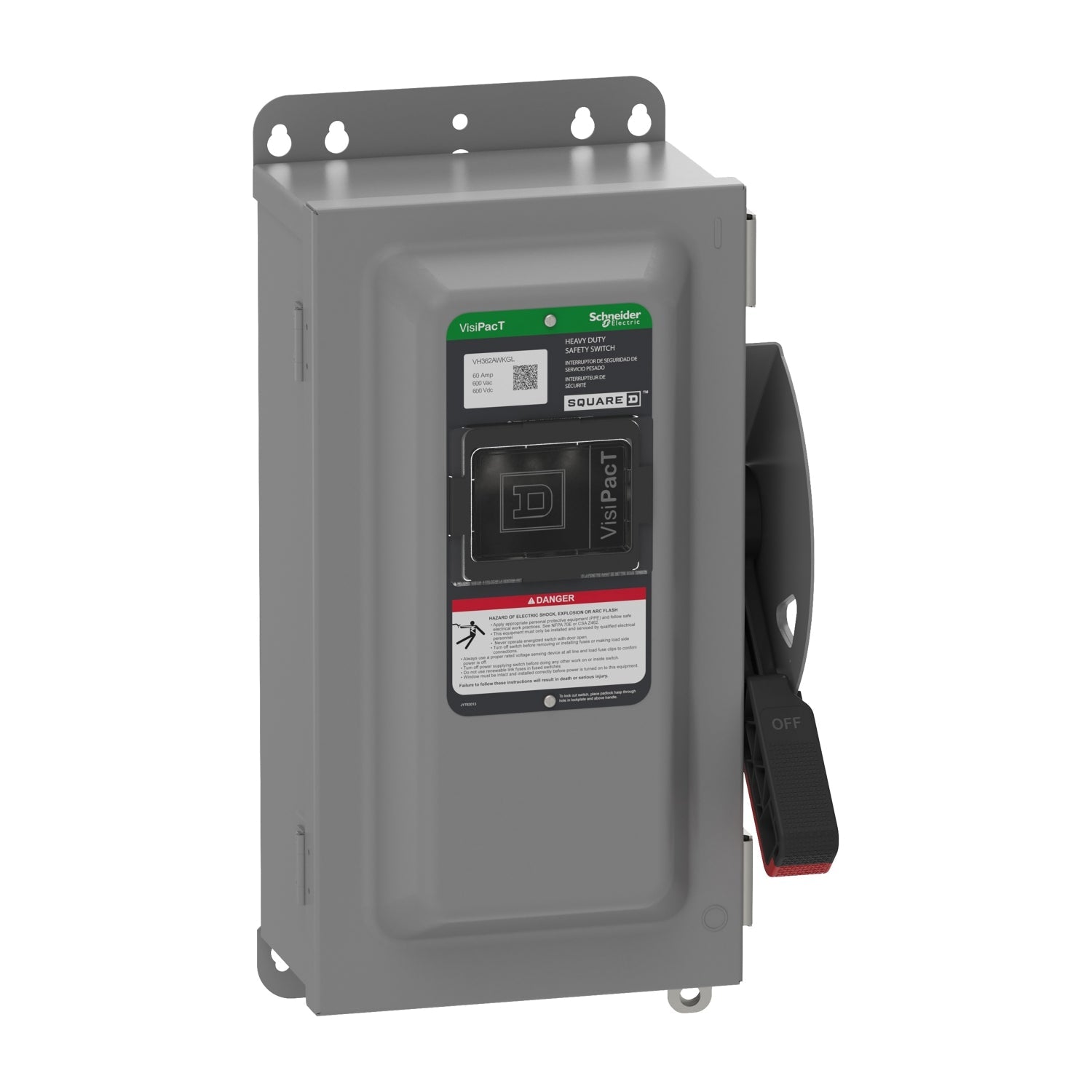

Square D VH362AWKGL - Fusible Disconnect Switch 600V AC/DC 60A (3-Pole NEMA 12)

Square D VH362AWKGL is a fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed and EU RoHS-compliant unit features a 600V AC/DC voltage rating with 60A current capacity in a compact 9" x 16.5" NEMA 12 enclosure weighing 20.94 lb. Its 3-pole single configuration supports H/K/R/J class fuses for three-phase applications, constructed with durable materials meeting industrial safety standards for electrical isolation and overload protection in manufacturing and commercial facilities.

Key Features & Specifications

• Type: Fusible safety switch with visible blade mechanism
• Voltage Rating: 600V AC/DC
• Current Rating: 60A
• Dimensions: 9" x 16.5" (228.6mm x 419.1mm)
• Standards: UL Listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• NEMA Rating: NEMA 12
• Weight: 20.94 lb (9.5 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589406
• GTIN: 03606485894065
