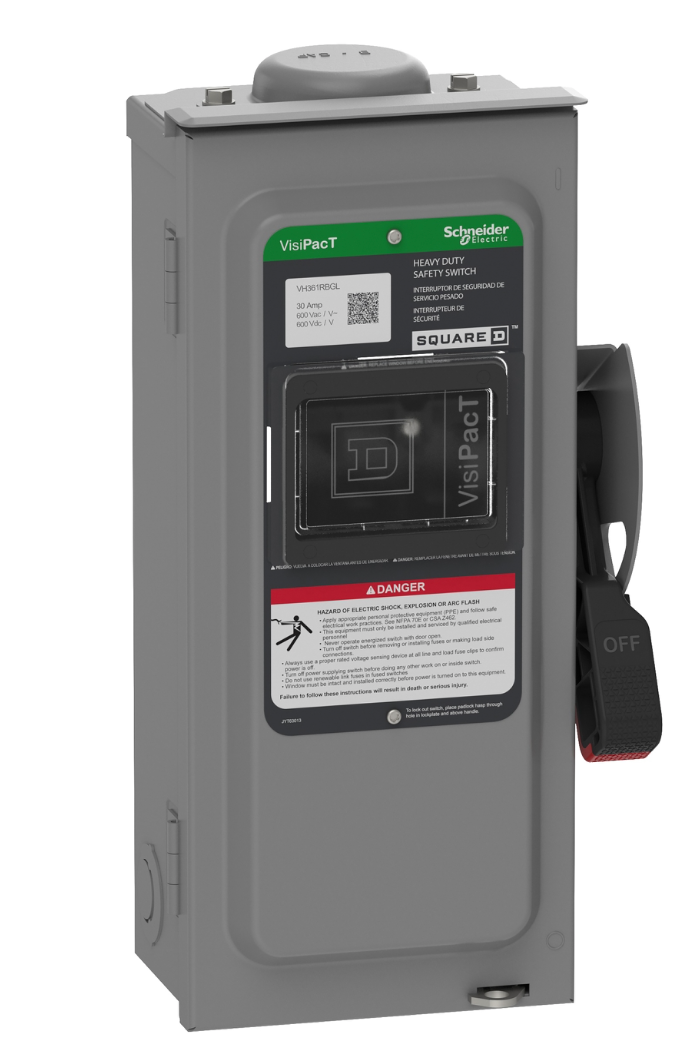

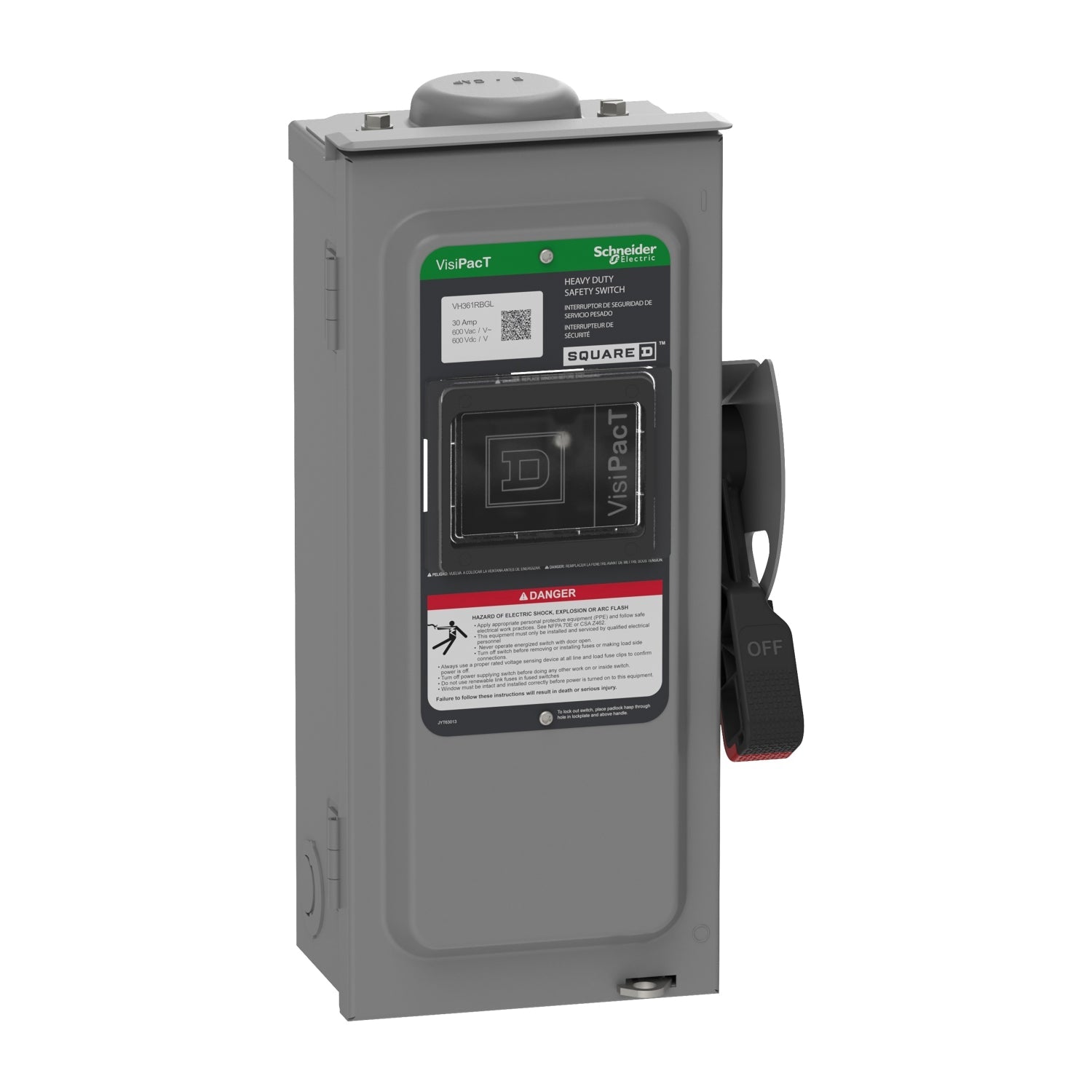

Square D VH361RBGL - Fusible Disconnect Switch 30A 600V (3-Pole NEMA 3R)

Square D VH361RBGL is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This 3-pole switch operates at 600V AC with a 30A current rating, providing robust electrical protection. The unit features a compact design measuring 379.22 mm height × 112.78 mm width × 78.49 mm depth and weighs 8.82 lb, constructed for durable performance. It carries UL listing (file E2969) and meets NEMA 3R standards for outdoor use, rainproof and sleet-resistant operation. Typical applications include industrial control panels, motor circuits, and power distribution systems requiring safe maintenance disconnects.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole single configuration
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 379.22 mm H × 112.78 mm W × 78.49 mm D (14.93 in × 4.44 in × 3.09 in)
• Weight: 8.82 lb
• Standards: UL listed (file E2969), NEMA 3R
• Applications: Industrial control panels, motor circuits, power distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• Fuse Class: H, K, R, J compatible
• Wire: 3-wire
• Certification: UL listed file E2969
• Nema Rating: NEMA 3R
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589388
• GTIN: 03606485893884
