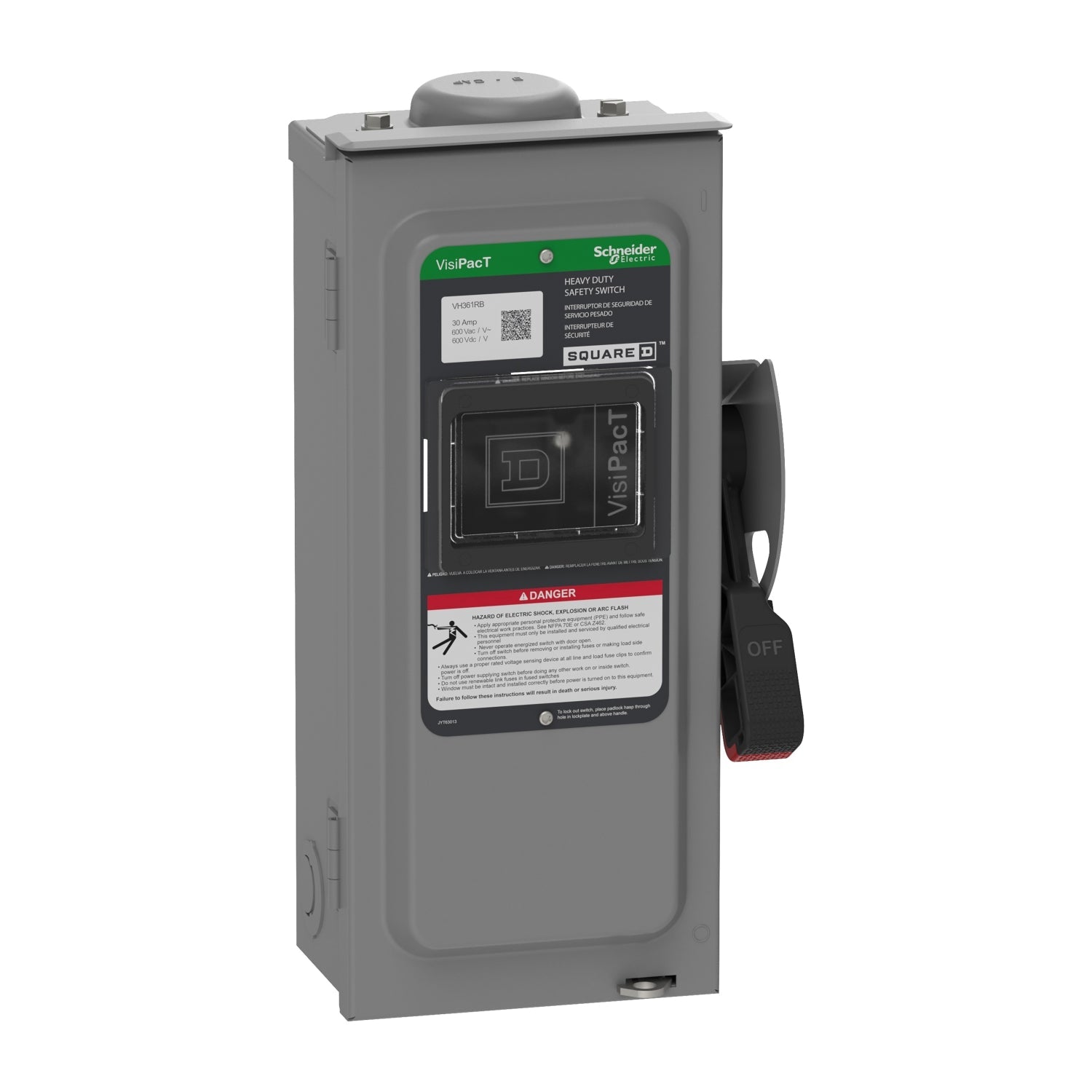

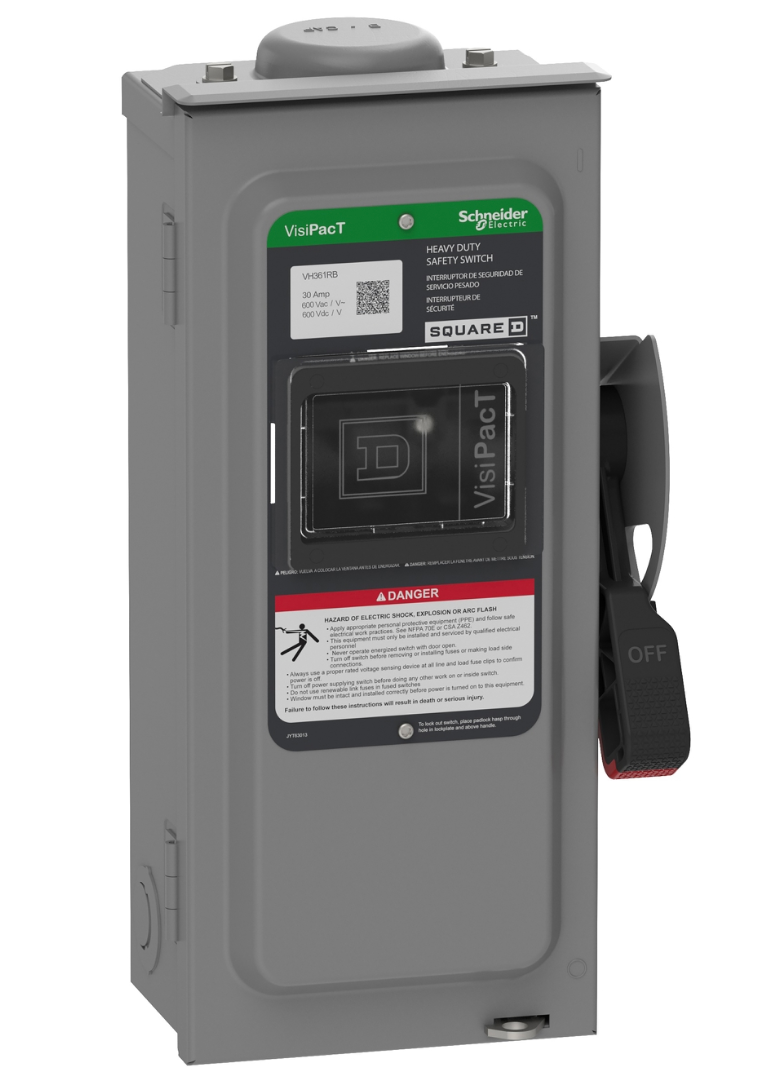

Square D VH361RB - Fusible Disconnect Switch 600V AC/DC 30A (3-Pole NEMA 3R)

Square D VH361RB is a fusible safety disconnect switch designed for secure electrical isolation in industrial power distribution systems. This 600V AC/DCV rated switch handles 30A current across three poles, housed in a durable NEMA 3R enclosure measuring 6½" x 14¾" with an 8.82 lb construction weight. It complies with EU RoHS and UL standards (file E2875), supporting H, K, R, and J-class fuses for robust circuit protection. The three-wire single-configuration disconnect is commonly deployed in motor control centers, HVAC systems, and heavy machinery power management.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 3R enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 6½" x 14¾" (165mm x 375mm)
• Standards: UL Listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers, HVAC systems
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J compatible
• Wire: 3-wire system
• Weight: 8.82 lb (4 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589386
• GTIN: 03606485893860
