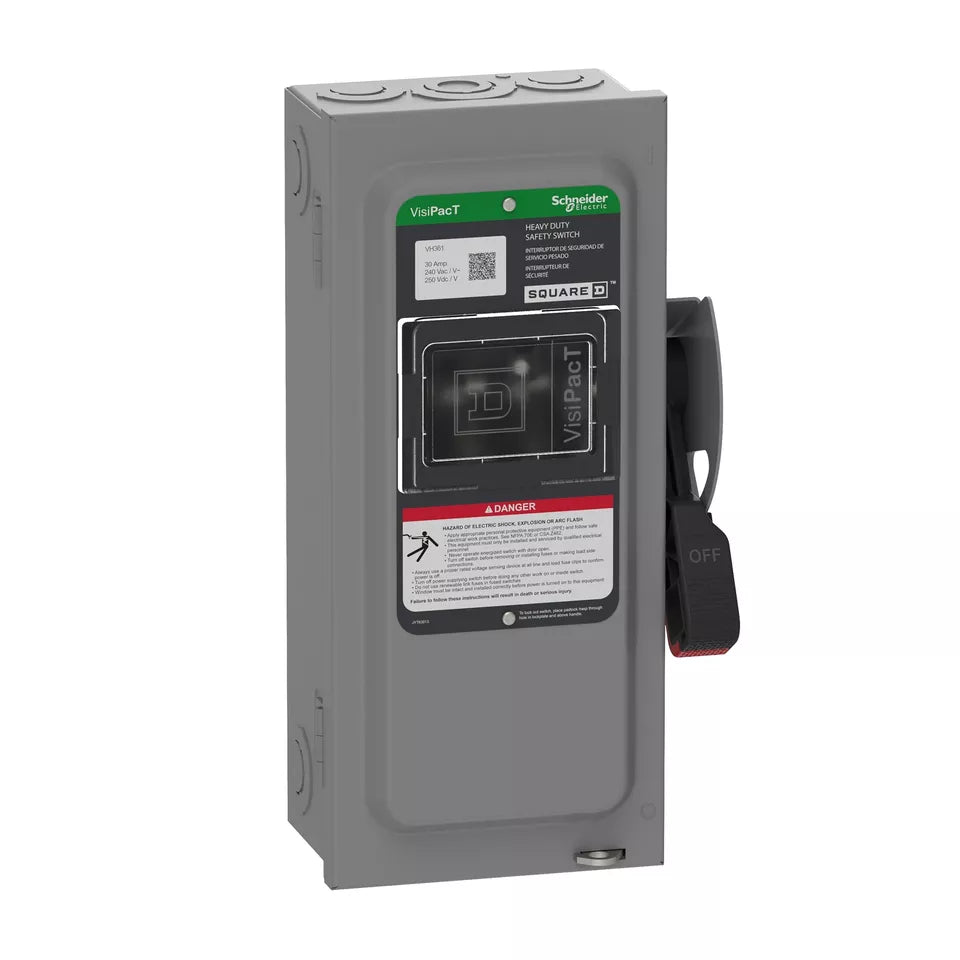

Square D VH361N - Fusible Disconnect Switch 600V AC/DC (30kA AIC, NEMA 1)

Square D VH361N is a fusible safety disconnect switch designed for secure electrical isolation in industrial applications. This 600V AC/DCV-rated switch features a 30kA AIC rating and accommodates H, K, R, and J class fuses for robust circuit protection. The NEMA 1-rated enclosure measures 6 1/4" x 14 1/2" with an 8.82 lb steel construction, housing three single-configuration poles for three-phase systems. UL-listed (file E2875) and EU RoHS compliant, this US-made disconnect provides reliable service in motor control centers, HVAC systems, and heavy machinery power distribution.

Key Features & Specifications

• Type: Fusible safety disconnect switch with steel enclosure
• Voltage Rating: 600V AC/DC
• Current Rating: 30kA AIC
• Dimensions: 6.25" x 14.5" (159mm x 368mm)
• Standards: UL Listed (E2875), EU RoHS
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• NEMA Rating: NEMA 1
• Weight: 8.82 lb (4 kg)
• Country of Origin: United States

Product Identification

• UPC: 60648589376
• GTIN: 03606485893761
