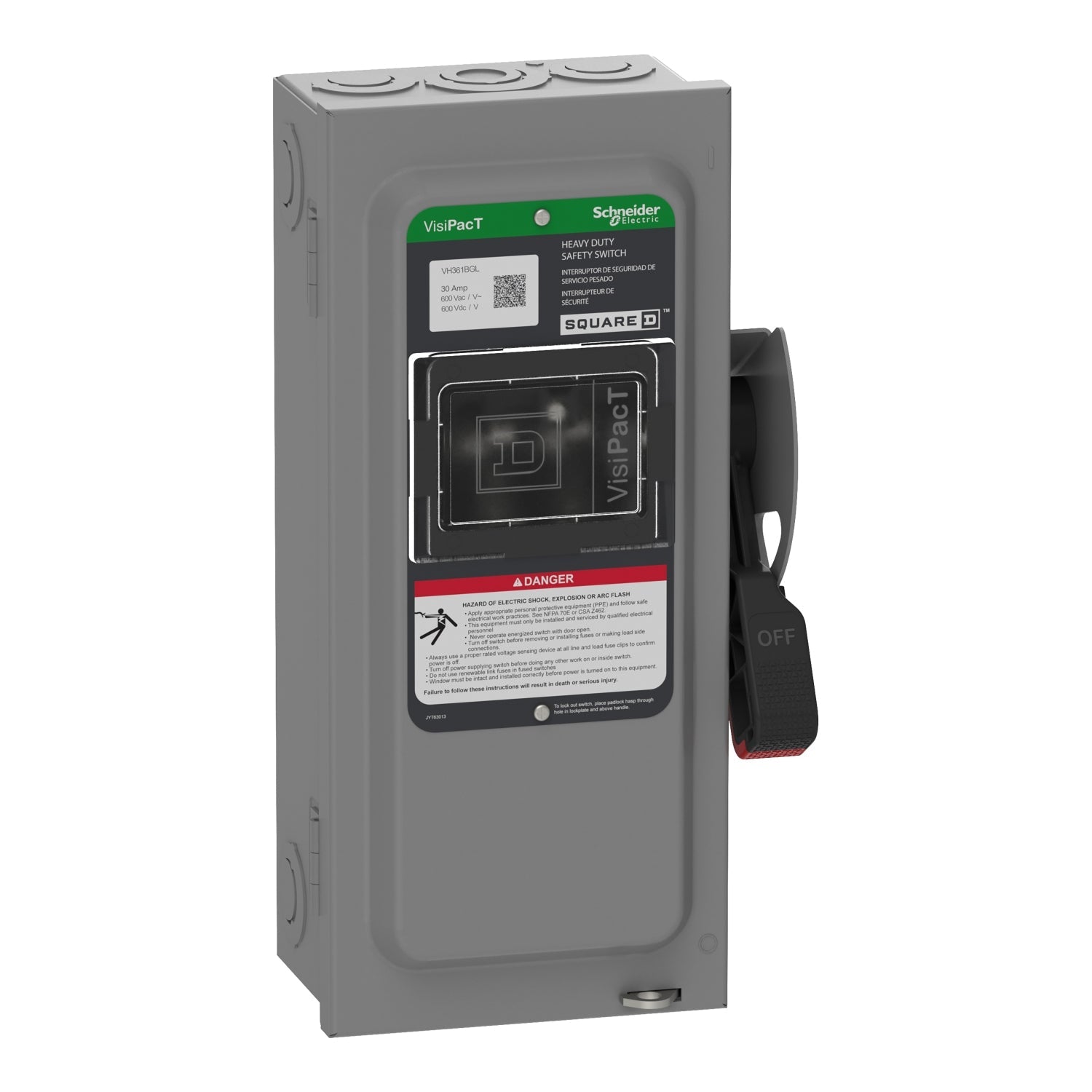

Square D VH361BGL - Fusible Disconnect Switch 30A 600V (3-Pole NEMA 1)

Square D VH361BGL is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This UL-listed device features a 600V voltage rating and 30A current capacity for robust electrical performance in three-phase systems. The compact unit measures 377.01 mm high × 112.78 mm wide × 78.49 mm deep with a durable NEMA 1 enclosure weighing 8.82 lb, constructed for industrial environments. Certified to UL standard E2959, this three-pole disconnect accommodates Class J fuses and provides safe disconnection capabilities. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring secure circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch with manual operation
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 377.01 mm H × 112.78 mm W × 78.49 mm D (14.843 in × 4.44 in × 3.09 in)
• Standards: UL Listed File E2959, NEMA 1 rated
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Certification: UL listed file E2959
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Weight: 8.82 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589381
• GTIN: 03606485893815
