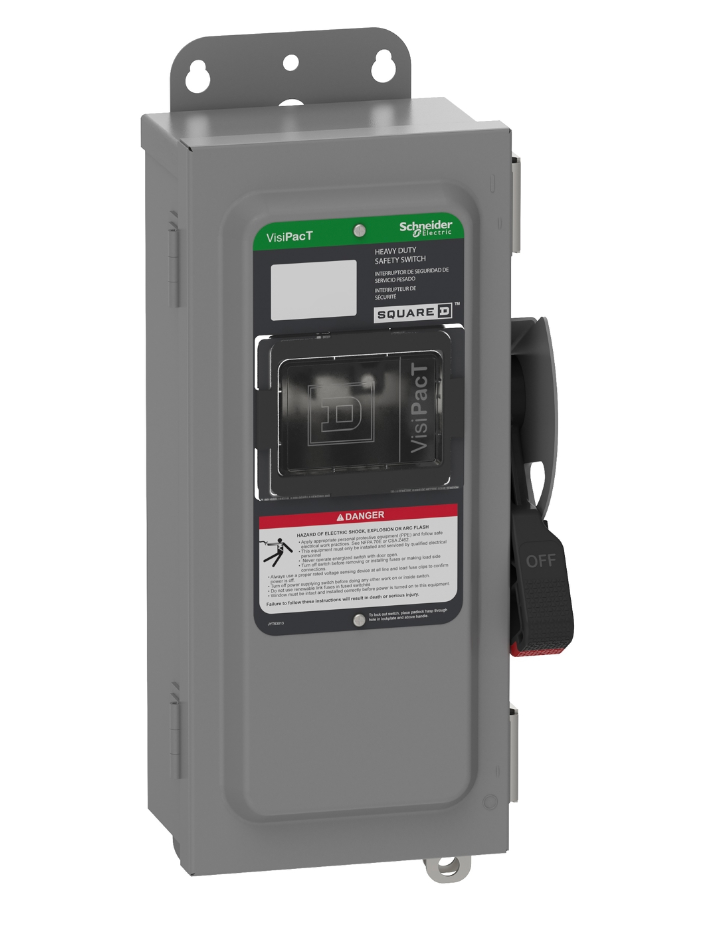

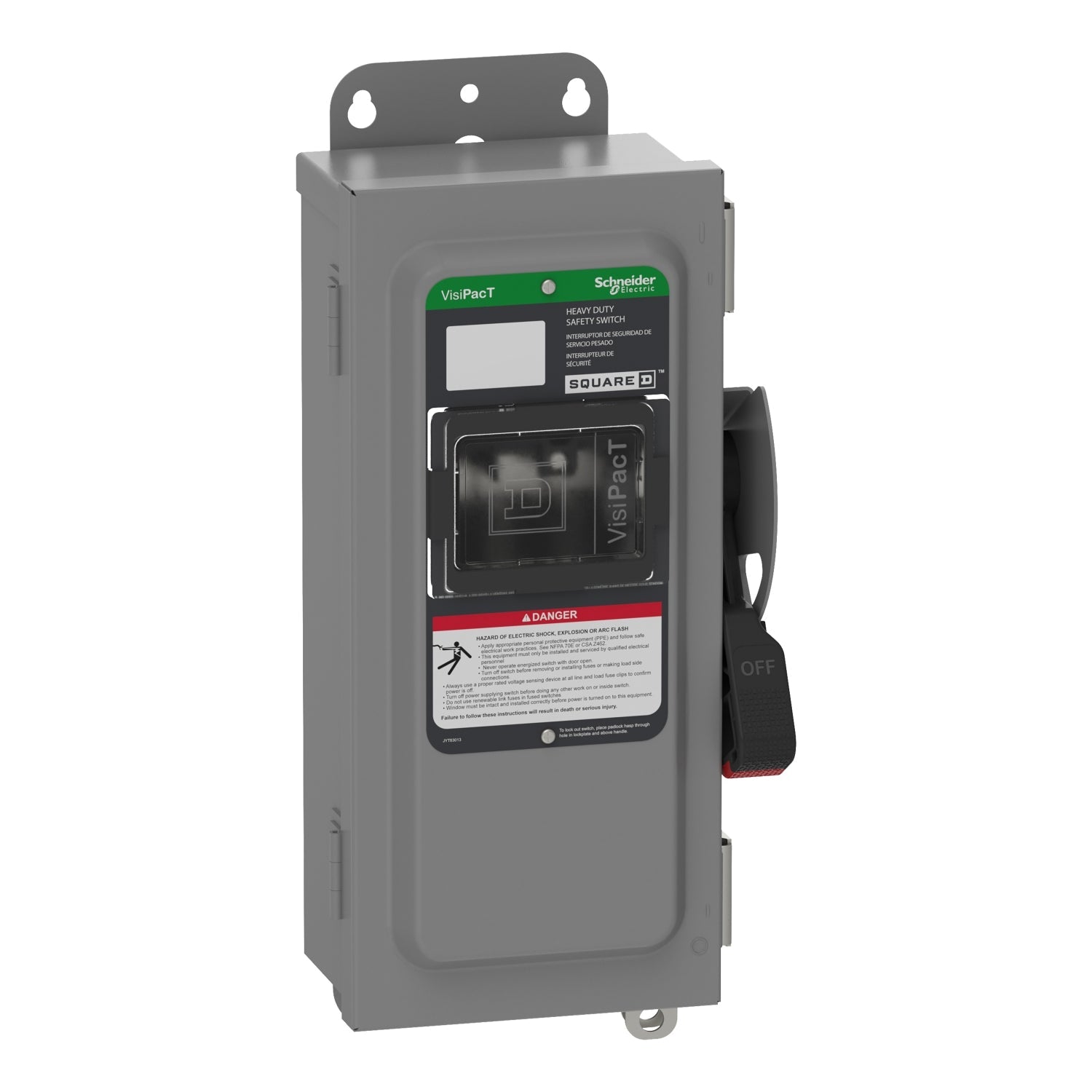

Square D VH361AWKGL - Fusible Disconnect Switch 600V AC/DCV 30A (3-Pole NEMA 12)

Square D VH361AWKGL is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed 600V AC/DCV switch delivers 30A current capacity across three poles in a compact 6½" x 14½" NEMA 12 enclosure. The rugged single-configuration unit accepts H/K/R/J class fuses and features RoHS-compliant construction for reliable operation in three-phase systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch with industrial-grade metal enclosure
• Voltage Rating: 600V AC/DCV
• Current Rating: 30A
• Dimensions: 6½" x 14½" (165mm x 368mm)
• Standards: UL Listed (File E2875), EU RoHS compliant
• Applications: Three-phase motor control, industrial machinery protection
• Configuration: Single
• Poles: 3
• Fuse Class: H, K, R, J
• Wire: 3
• NEMA Rating: NEMA 12
• Phase: 3
• Weight: 11.02 lb (5 kg)

Product Identification

• UPC: 060648589389
• GTIN: 03606485893891
