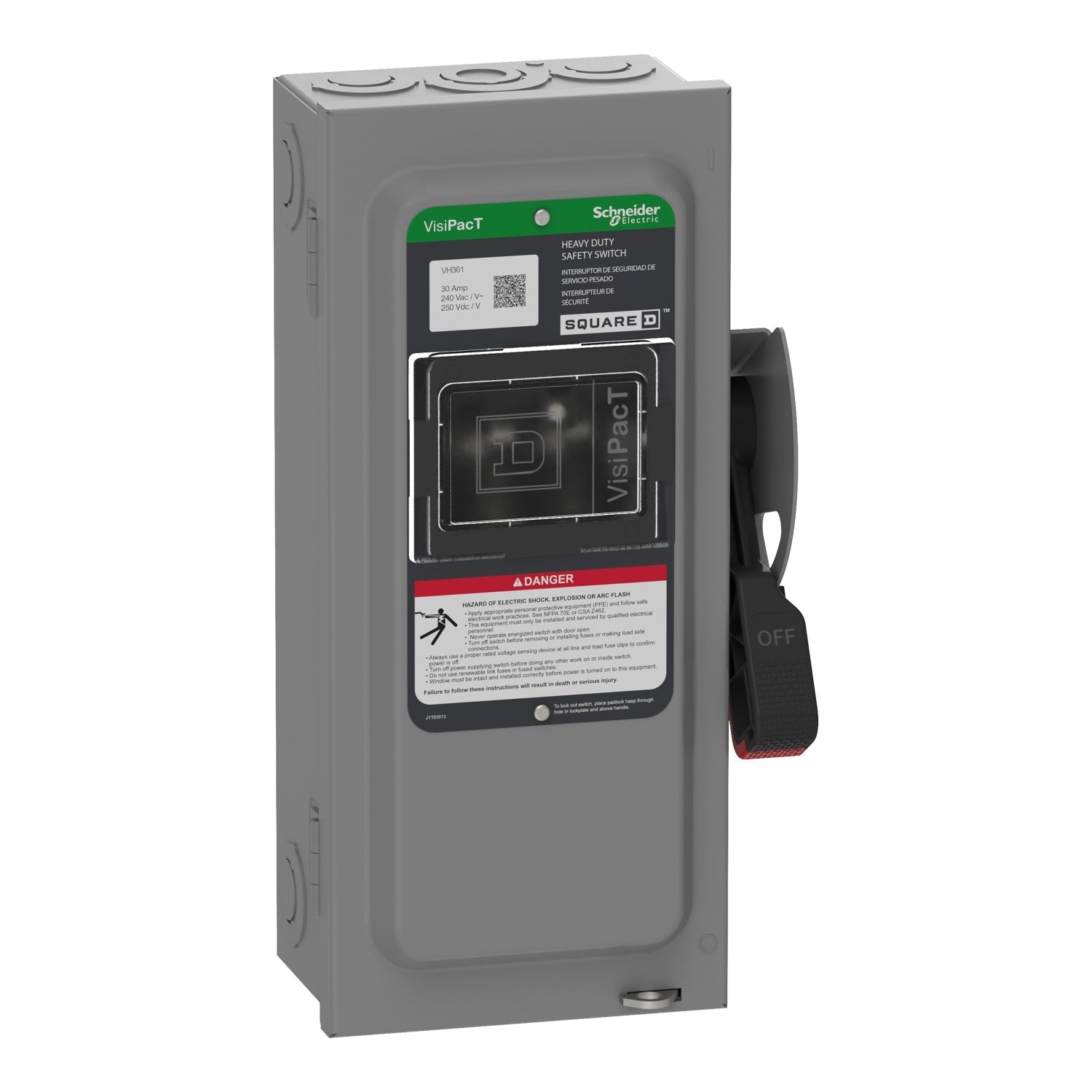

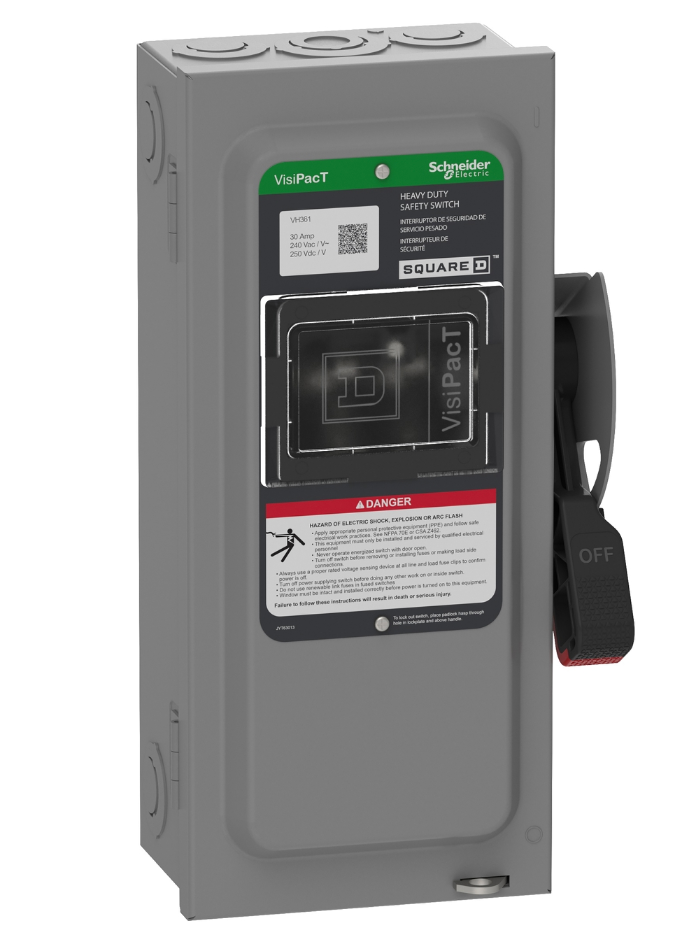

Square D VH361 - Fusible Disconnect Switch 600V AC/DC 30A (200kA AIC @600V)

Square D VH361 is a fusible safety disconnect switch designed for industrial power distribution protection. This 600V AC/DCV-rated switch handles 30A current loads with a 200kA@600V interrupting capacity, housed in a compact 6 1/4" x 14 1/2" NEMA 1 enclosure weighing 8.82 lb. The UL-listed (file E2875) and RoHS-compliant device features a 3-pole single configuration compatible with H/K/R/J-class fuses and accepts #12-6 AWG aluminum or #14-6 AWG copper wiring. Typical applications include motor control centers and heavy equipment power isolation in commercial/industrial facilities.

Key Features & Specifications

• Type: Fusible disconnect switch, Series F, Type H construction
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 6.25" x 14.5" (159mm x 368mm)
• Standards: UL Listed (E2875), EU RoHS compliant
• Applications: Industrial power distribution, MCCs, equipment isolation
• Configuration: Single
• Poles: 3
• Wire Size: #12-6 AWG (Al) / #14-6 AWG (Cu)
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Fuse Class: H, K, R, J compatible
• Weight: 8.82 lb (4 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589385
• GTIN: 03606485893853
