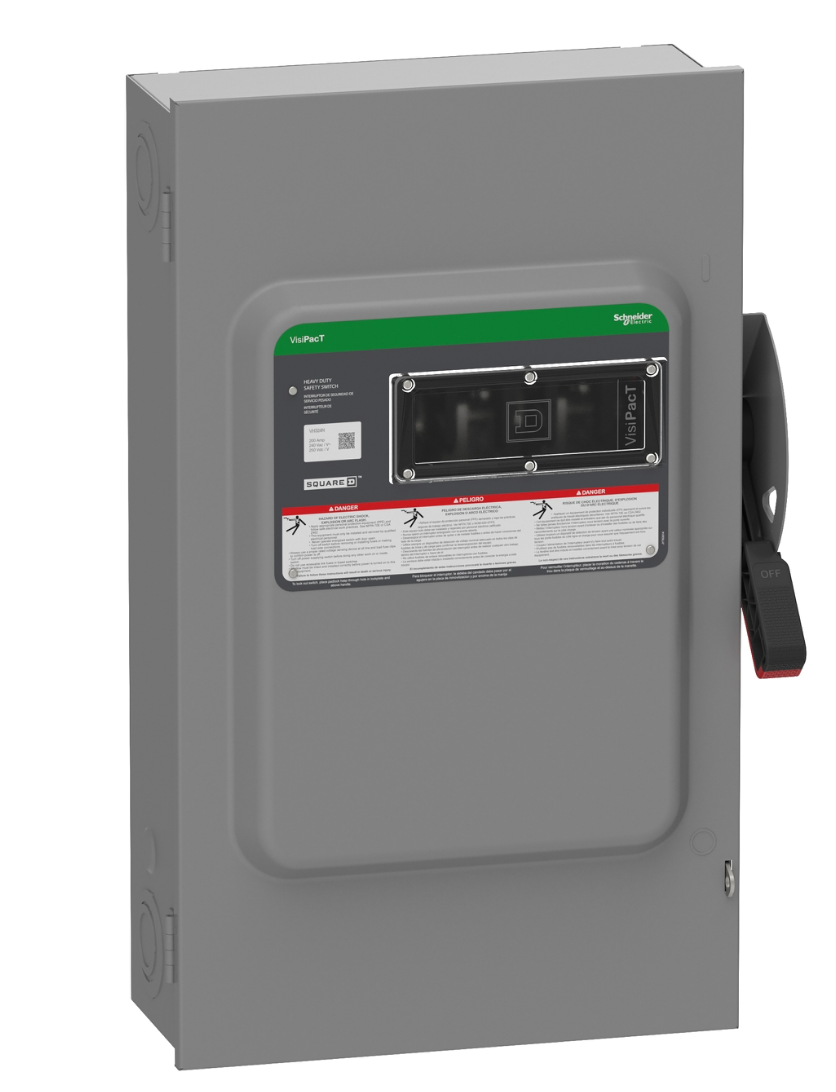

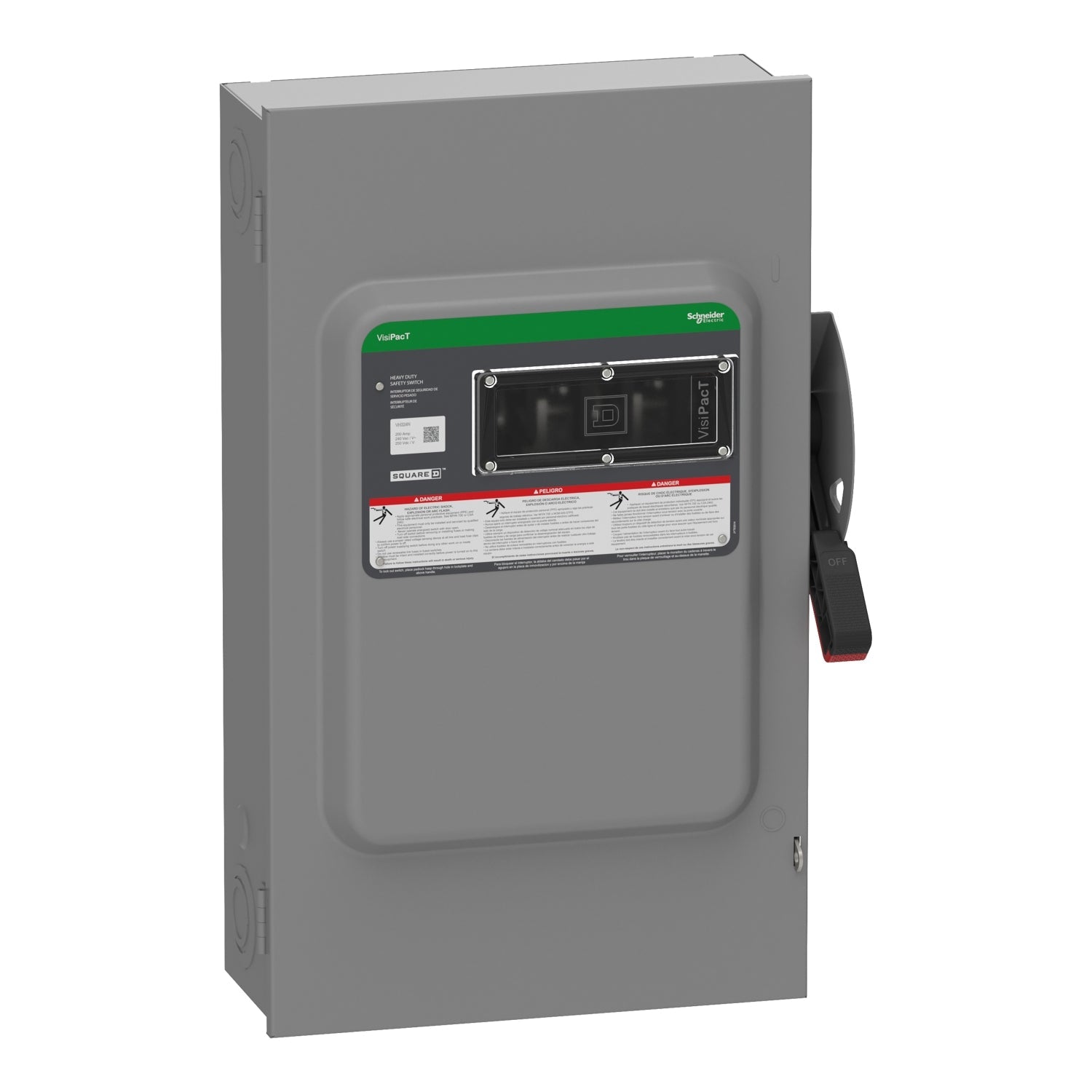

Square D VH324N - Fusible Safety Disconnect Switch 200A 3-Pole (240V AC NEMA 1)

Square D VH324N is a fusible safety disconnect switch designed for industrial circuit protection and isolation. It provides reliable 200A current interruption with a 240V AC voltage rating for three-phase power systems. The unit features a robust NEMA 1 enclosure measuring 16.5" x 29" and accommodates wire sizes from AWG 6 to 250 kcmil for both copper and aluminum conductors. Certified to UL standards (file E2875) and EU RoHS compliance, this switch meets rigorous safety requirements. Typical applications include industrial control panels, motor circuits, and power distribution systems where visible disconnect and fuse protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16.5" x 29"
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial control panels, motor circuits, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Phase: 3
• Poles: 3
• Wire: 3
• Wire Size: AWG 6 to 250 kcmil, Copper/Aluminum
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 1
• Weight: 54.45 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589366
• GTIN: 03606485893662
