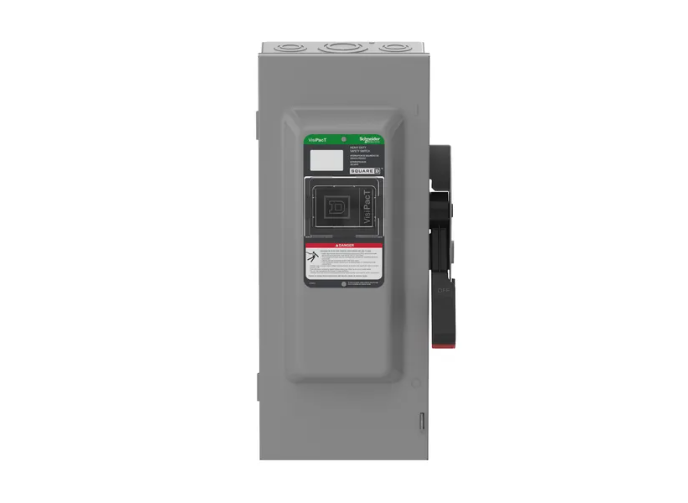

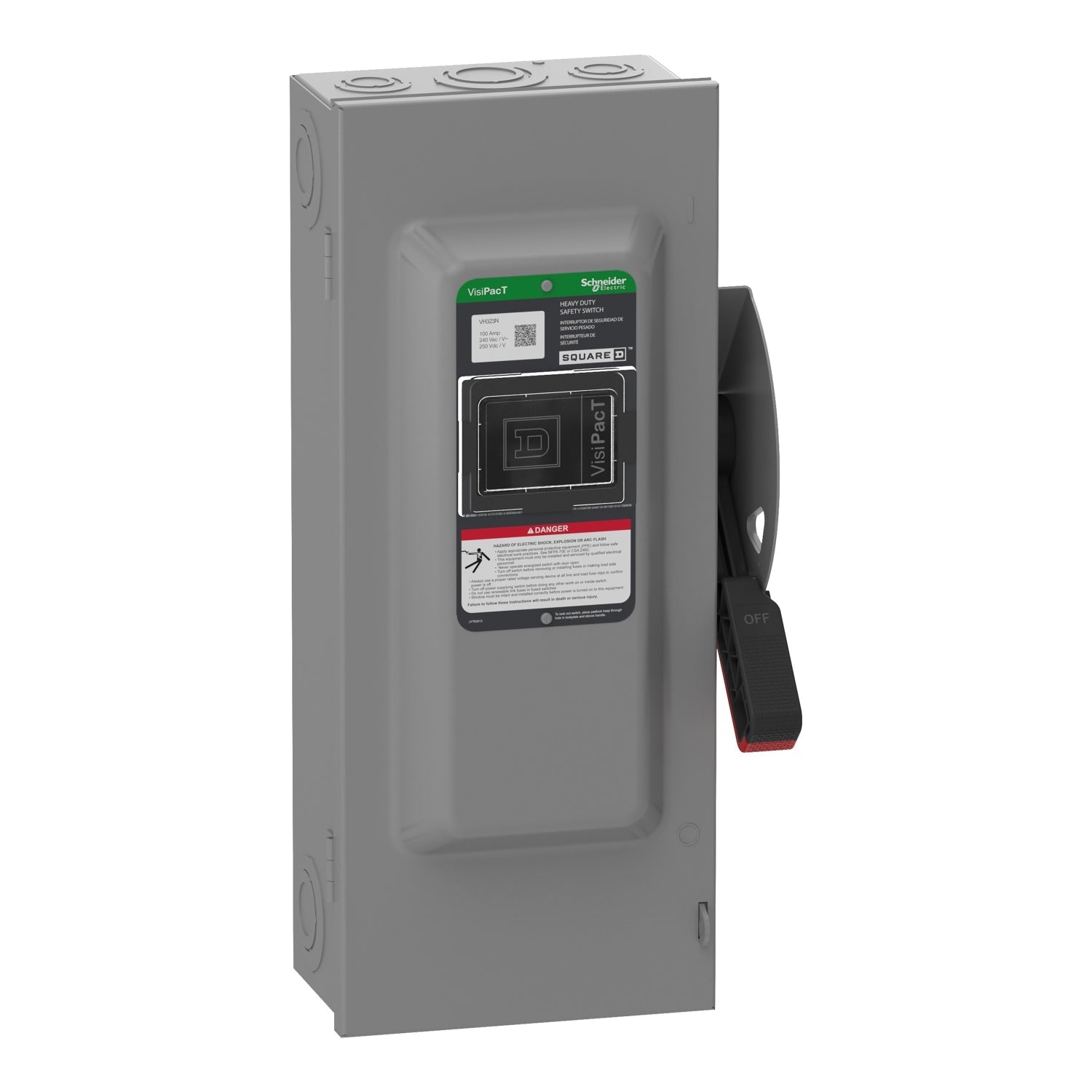

Square D VH323N - Fusible Disconnect Switch 100A 3-Pole (240V AC NEMA 1)

Square D VH323N is a fusible safety disconnect switch designed for reliable circuit protection in industrial applications. This 3-pole switch operates at 240V AC with a 100A current rating, providing robust electrical isolation capabilities. The unit features a compact 9" x 21¾" NEMA 1 enclosure weighing 19.84 lb and accommodates wire sizes from AWG 12 to 1/0 copper or AWG 14 to 1/0 aluminum. It complies with EU RoHS standards and carries UL listing (file E2875), ensuring adherence to industry safety requirements. Typical applications include motor control centers, industrial machinery, and power distribution systems where H, K, R, and J class fuse protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole single configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 9 in x 21 3/4 in
• Standards: EU RoHS, UL listed file E2875
• Applications: Industrial machinery, motor control centers, power distribution
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire: 3
• Wire Size: AWG 12 to AWG 1/0 Copper, AWG 14 to AWG 1/0 Aluminum
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 1
• Weight: 19.84 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589356
• GTIN: 03606485893563
