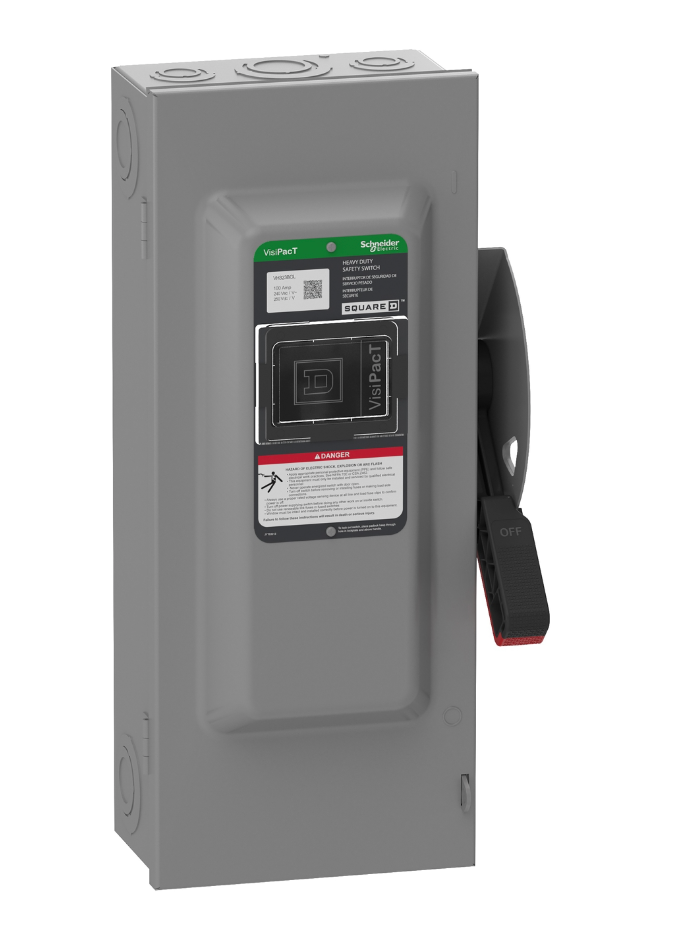

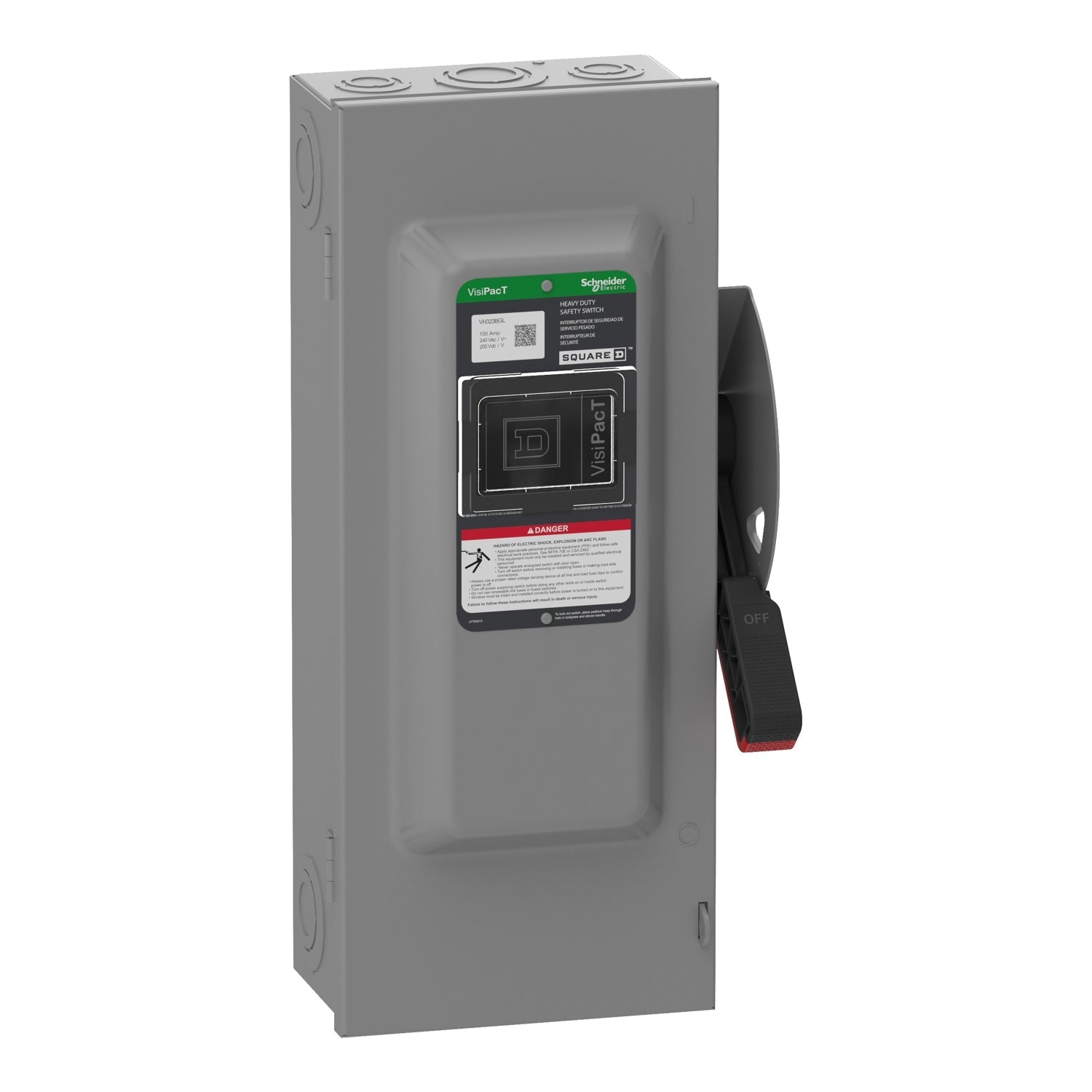

Square D VH323BGL - Fusible Disconnect Switch 240V 100A (3-Pole NEMA 1)

Square D VH323BGL is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed (file E2937) NEMA 1-rated switch features a 240V voltage rating and 100A current capacity in a compact 22.103" x 4.44" x 3.09" (561.42 x 112.78 x 78.49 mm) enclosure weighing 19.84 lb. The three-pole single-configuration switch accepts Class J fuses and complies with North American safety standards for three-phase power systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch with industrial-grade construction
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 22.103" H x 4.44" W x 3.09" D (561.42 x 112.78 x 78.49 mm)
• Standards: UL listed (file E2937), NEMA 1
• Applications: Industrial power distribution, motor control, equipment protection
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Weight: 19.84 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589360
• GTIN: 03606485893600
