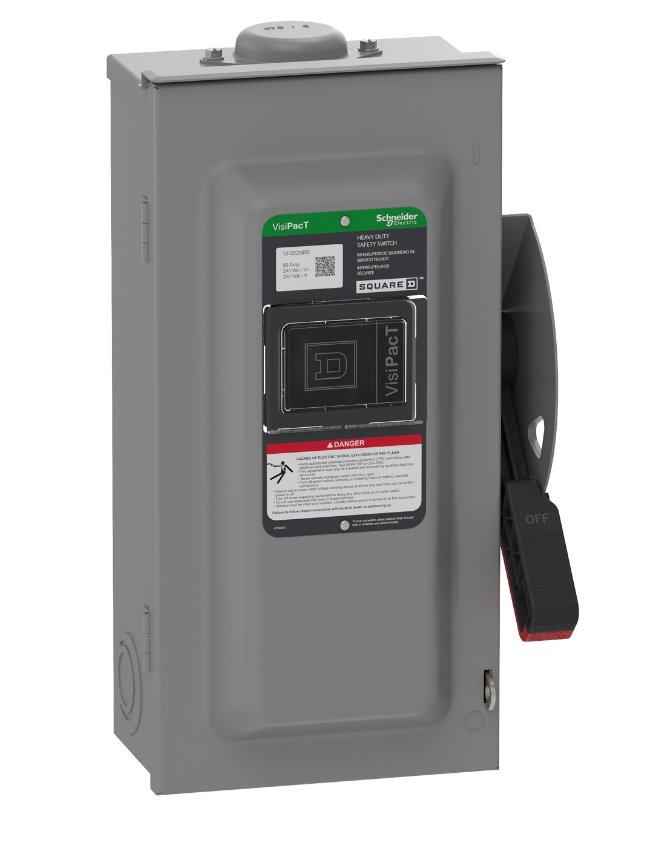

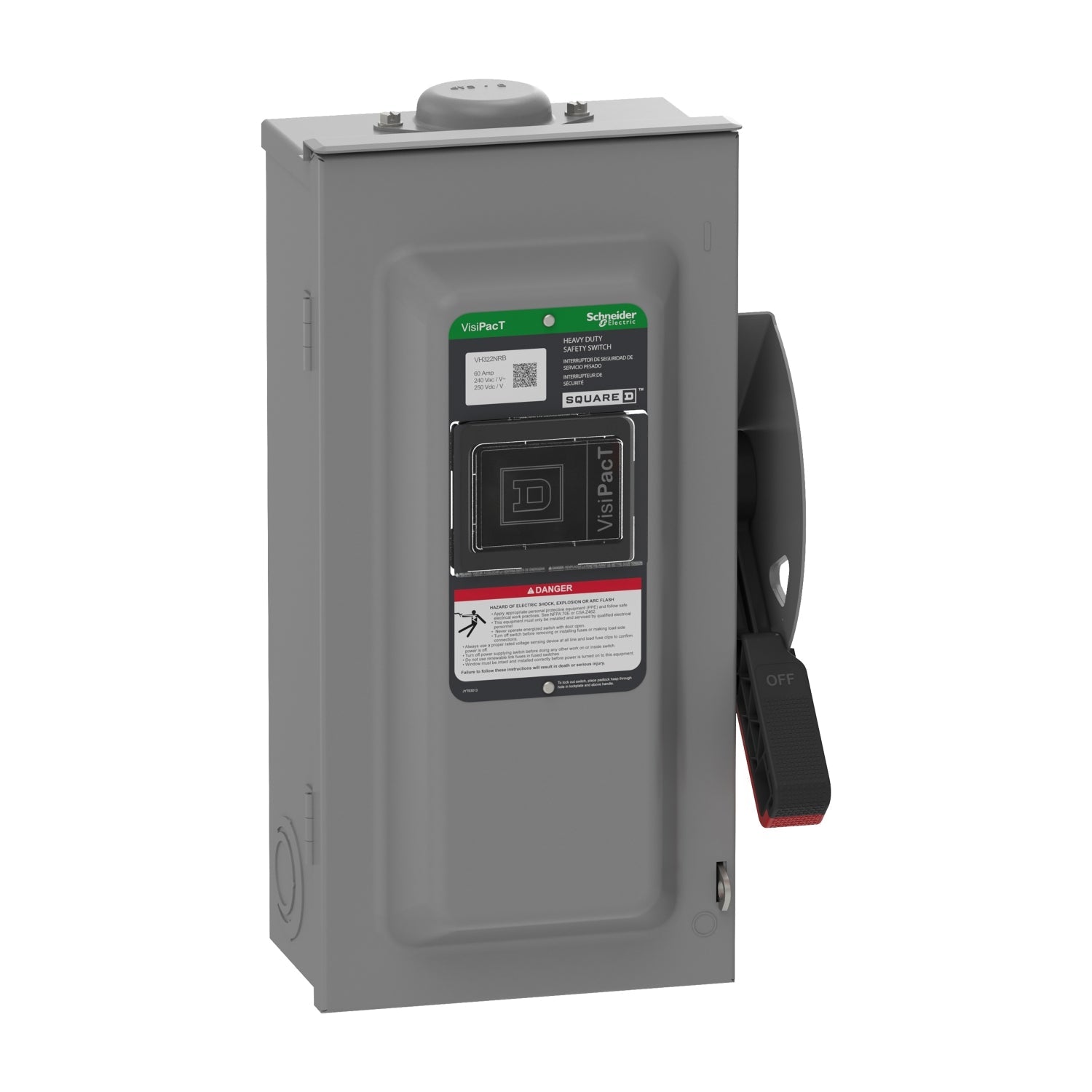

Square D VH322NRB - Fusible Disconnect Switch 240V AC 60A (NEMA 3R Enclosure)

Square D VH322NRB is a fusible safety disconnect switch designed for secure power isolation in industrial applications. This 3-pole switch handles 240V AC systems with a 60A current rating, featuring a rugged NEMA 3R-rated enclosure measuring 6.5" x 14.75" (165mm x 375mm) and weighing 8.82 lb. It complies with UL Standard E2875 and EU RoHS directives, accepting H/K/R/J-class fuses for three-wire three-phase circuit protection in machinery, HVAC systems, and motor control centers.

Key Features & Specifications

• Type: Fusible safety disconnect switch with single configuration
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 6.5" x 14.75" (165mm x 375mm)
• Standards: UL Listed (File E2875), EU RoHS compliant
• Applications: Industrial machinery, motor control centers, HVAC systems
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• NEMA Rating: 3R
• Weight: 8.82 lb
• Certification: EU RoHS, UL listed file E2875
• Country of Origin: United States

Product Identification

• UPC: 060648589347
• GTIN: 03606485893471
