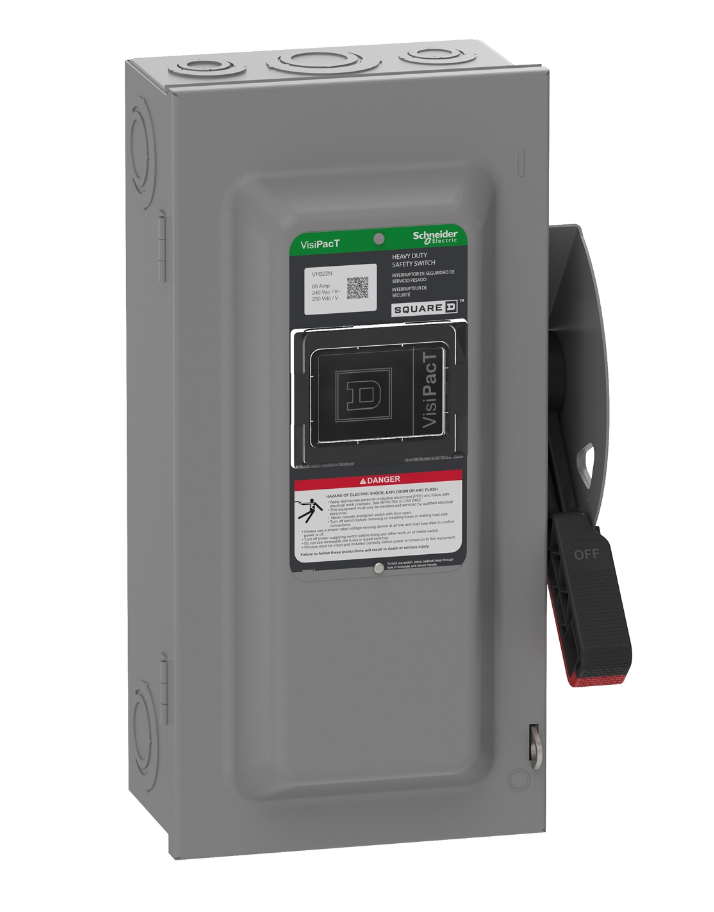

Square D VH322N - Fusible Disconnect Switch 60A 240V AC (3-Pole NEMA 1)

Square D VH322N is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. It provides 60A current protection with a 240V AC voltage rating for three-phase systems, housed in a compact NEMA 1 enclosure measuring 6.25" x 14.5" and weighing 8.82 lb. The switch meets UL standard E2875 and EU RoHS compliance requirements, ensuring safe operation in demanding environments. Typical applications include motor control centers, industrial machinery, and power distribution systems where visible disconnect and fuse protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 6.25" x 14.5"
• Standards: UL listed file E2875, EU RoHS compliant
• Applications: Industrial machinery, motor control centers, power distribution
• Switch Type: Fusible disconnect
• Configuration: Single
• Phase: 3-phase
• Poles: 3
• Fuse Class: H, K, R, J
• Wire: 3-wire
• Wire Size: AWG 14 to AWG 3, AWG 12 to AWG 3 (Copper/Aluminum)
• Nema Rating: NEMA 1
• Weight: 8.82 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589346
• GTIN: 03606485893464
