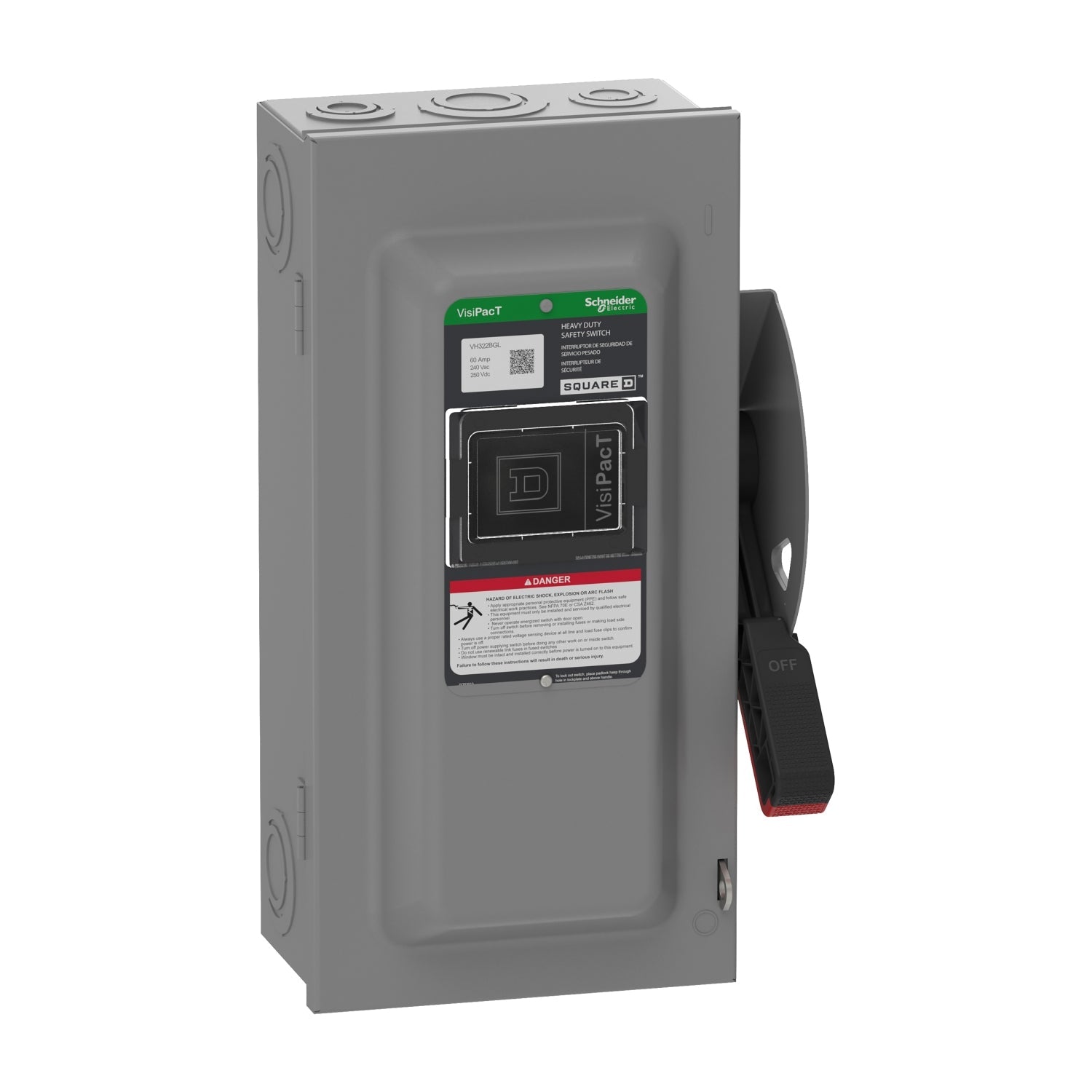

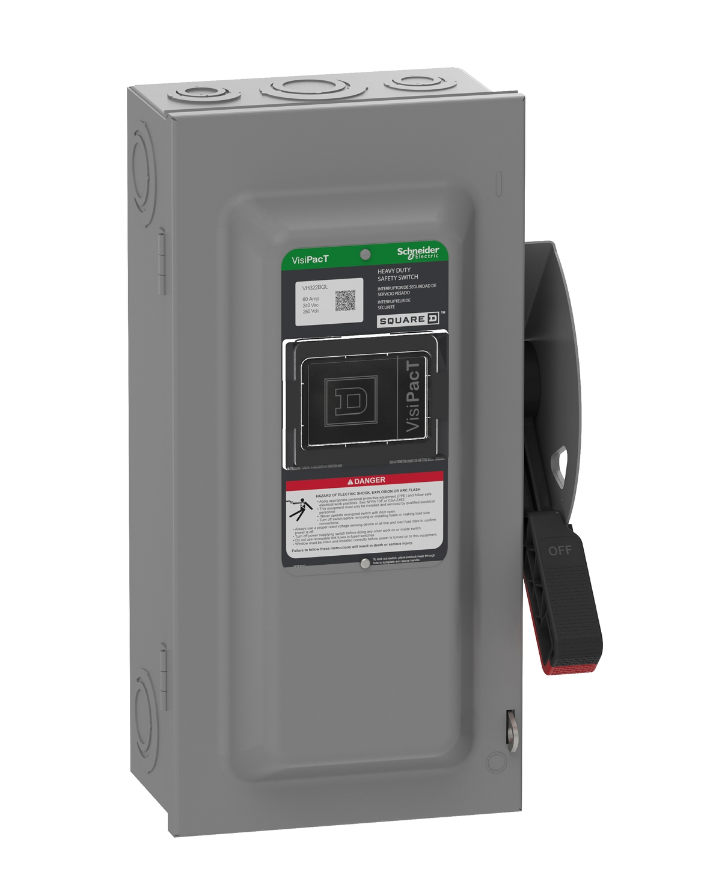

Square D VH322BGL - Fusible Disconnect Switch 60A 240V 3-Pole (NEMA 1)

Square D VH322BGL is a fusible safety disconnect switch designed for industrial circuit protection and isolation. It provides reliable 60A current interruption capability with a 240V voltage rating for three-phase power systems. The switch features a compact NEMA 1 enclosure measuring 377.01 mm high × 112.78 mm wide × 78.49 mm deep and weighs 8.18 lb, constructed for durable industrial service. UL listed under file E2927, this three-pole disconnect meets rigorous safety standards for industrial electrical applications including motor control centers, machinery, and power distribution systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with three-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 377.01 mm H × 112.78 mm W × 78.49 mm D (14.843 in × 4.44 in × 3.09 in)
• Standards: UL Listed (File E2927), NEMA 1 rated
• Applications: Industrial motor control, machinery protection, power distribution systems
• Switch Type: Fusible disconnect
• Configuration: Single unit
• Phase: 3-phase
• Poles: 3
• Fuse Class: J
• Wire: 3-wire system
• Enclosure: NEMA 1
• Weight: 8.18 lb
• Country of Origin: United States
• Family: VH series

Product Identification

• UPC: 060648589350
• GTIN: 03606485893501
