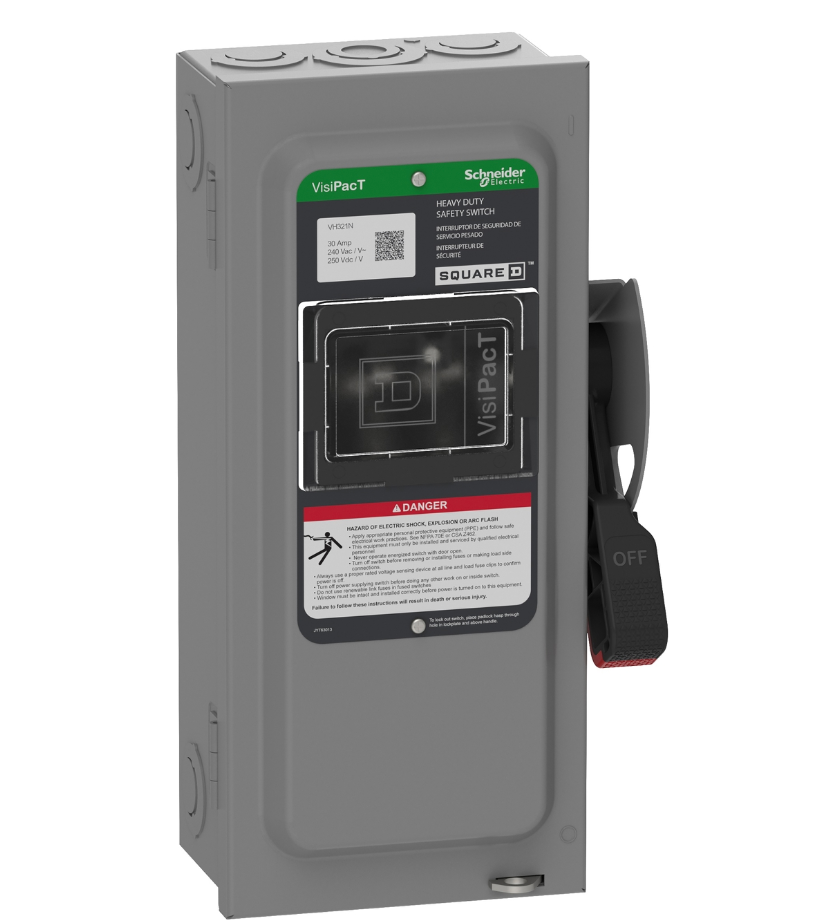

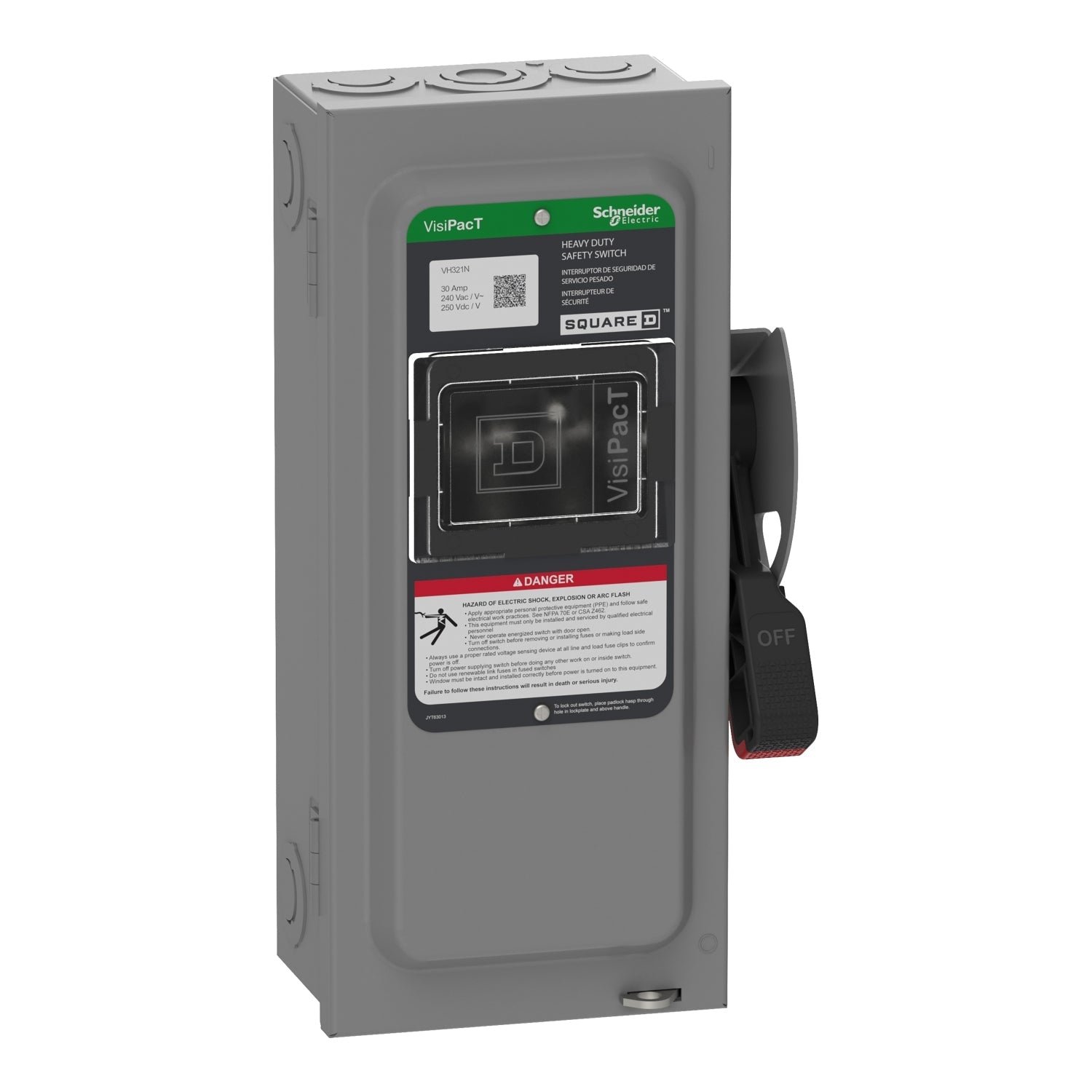

Square D VH321N - Fusible Disconnect Switch 240V AC 30A (3-Pole NEMA 1)

Square D VH321N is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This UL-listed and RoHS-compliant unit features a 240V AC voltage rating with 30A current capacity across three poles, housed in a NEMA 1-rated enclosure measuring 6.25" x 14.5" (159mm x 368mm) with an 8.82 lb steel construction. Certified to UL file E2875, it accommodates H, K, R, and J-class fuses for three-phase applications requiring single-configuration disconnects with visible break protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 6.25" x 14.5" (159mm x 368mm)
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• NEMA Rating: NEMA 1
• Switch Style: Fusible
• Weight: 8.82 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589336
• GTIN: 03606485893365
