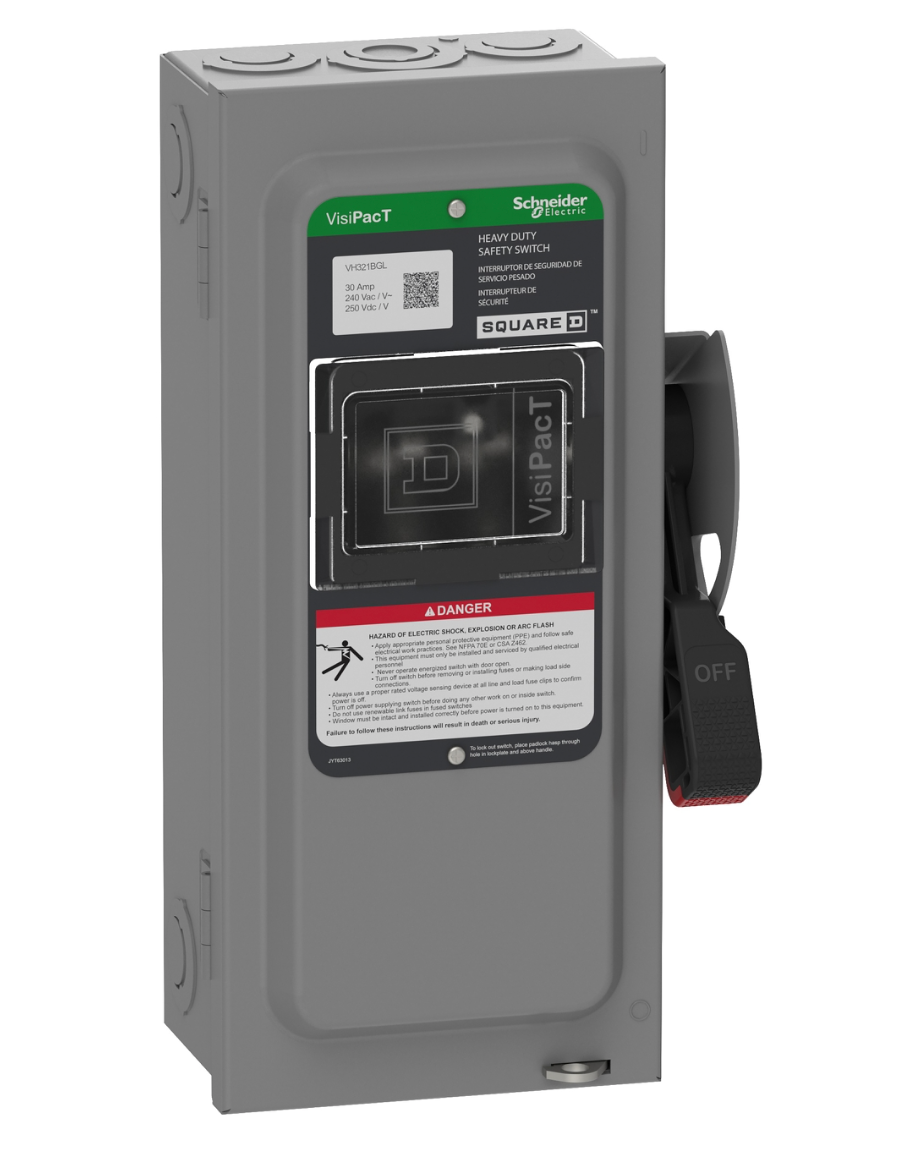

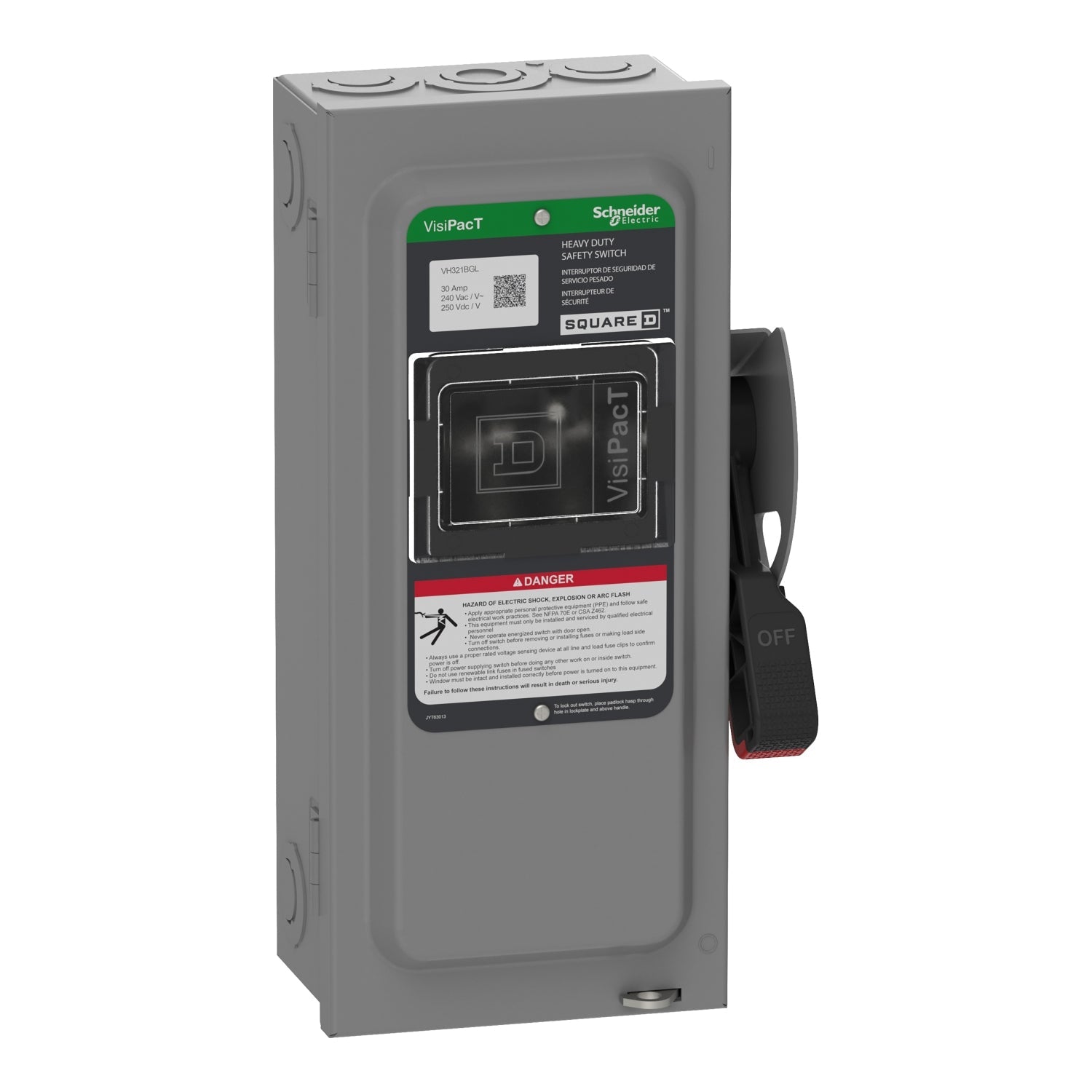

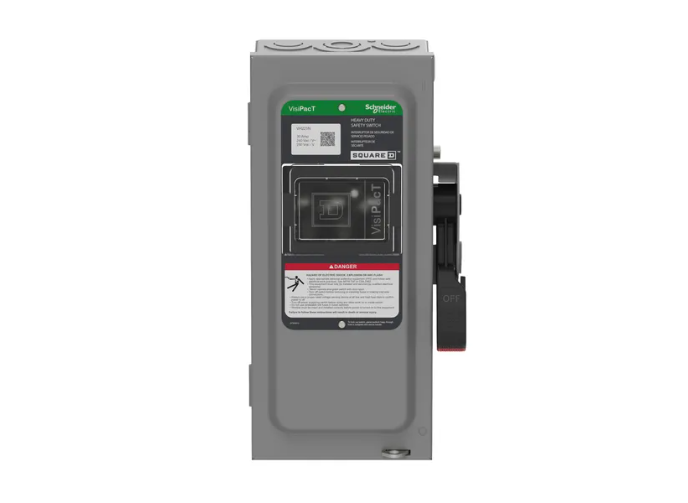

Square D VH321BGL - Fusible Disconnect Switch 30A 240V (3-Pole NEMA 1)

Square D VH321BGL is a fusible safety disconnect switch designed for reliable circuit protection in industrial applications. This 3-pole switch operates at 240V AC with a 30A current rating and features Class J fuse compatibility for enhanced safety. The unit measures 377.01 mm height × 112.78 mm width × 78.49 mm depth and weighs 8.82 lb, constructed with NEMA 1 rated enclosure for indoor use. It carries UL certification (file E2917) and complies with industry safety standards for electrical disconnects. Typical applications include motor control centers, industrial machinery, and three-phase electrical systems requiring secure isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 377.01 mm H × 112.78 mm W × 78.49 mm D (14.843 in × 4.44 in × 3.09 in)
• Standards: UL listed (file E2917), NEMA 1 rated
• Applications: Industrial machinery, motor control centers, three-phase systems
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Weight: 8.82 lb
• Certification: UL listed file E2917
• Nema Rating: NEMA 1
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589340
• GTIN: 03606485893402
