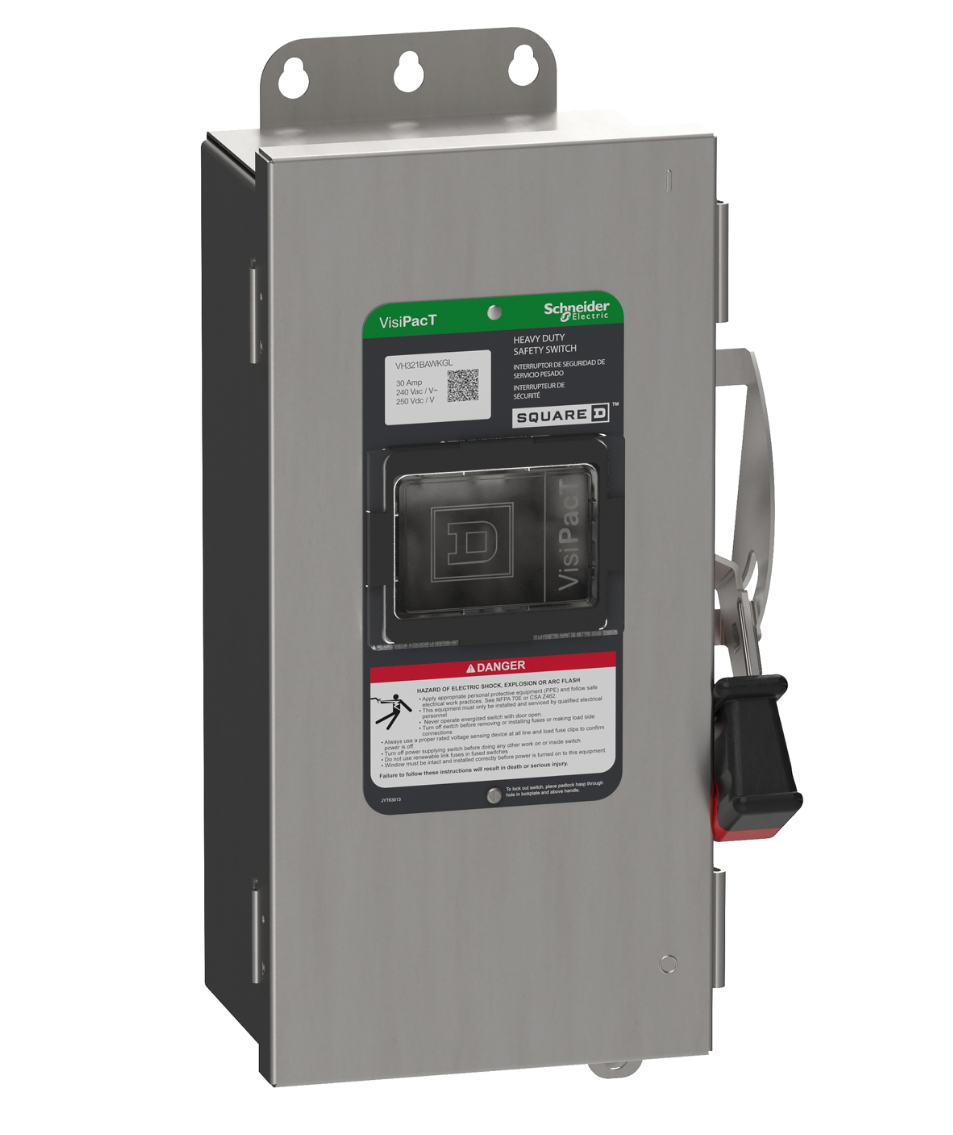

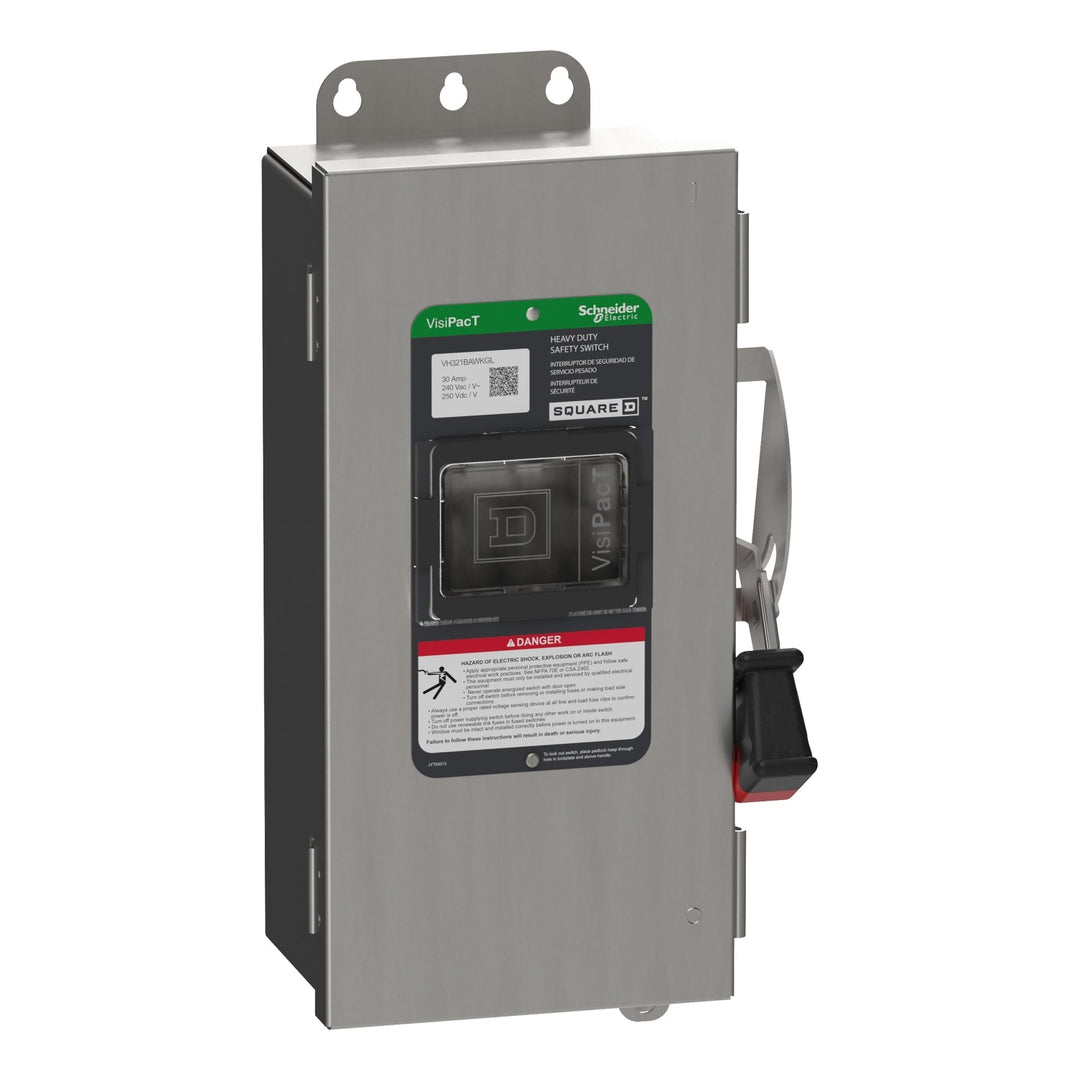

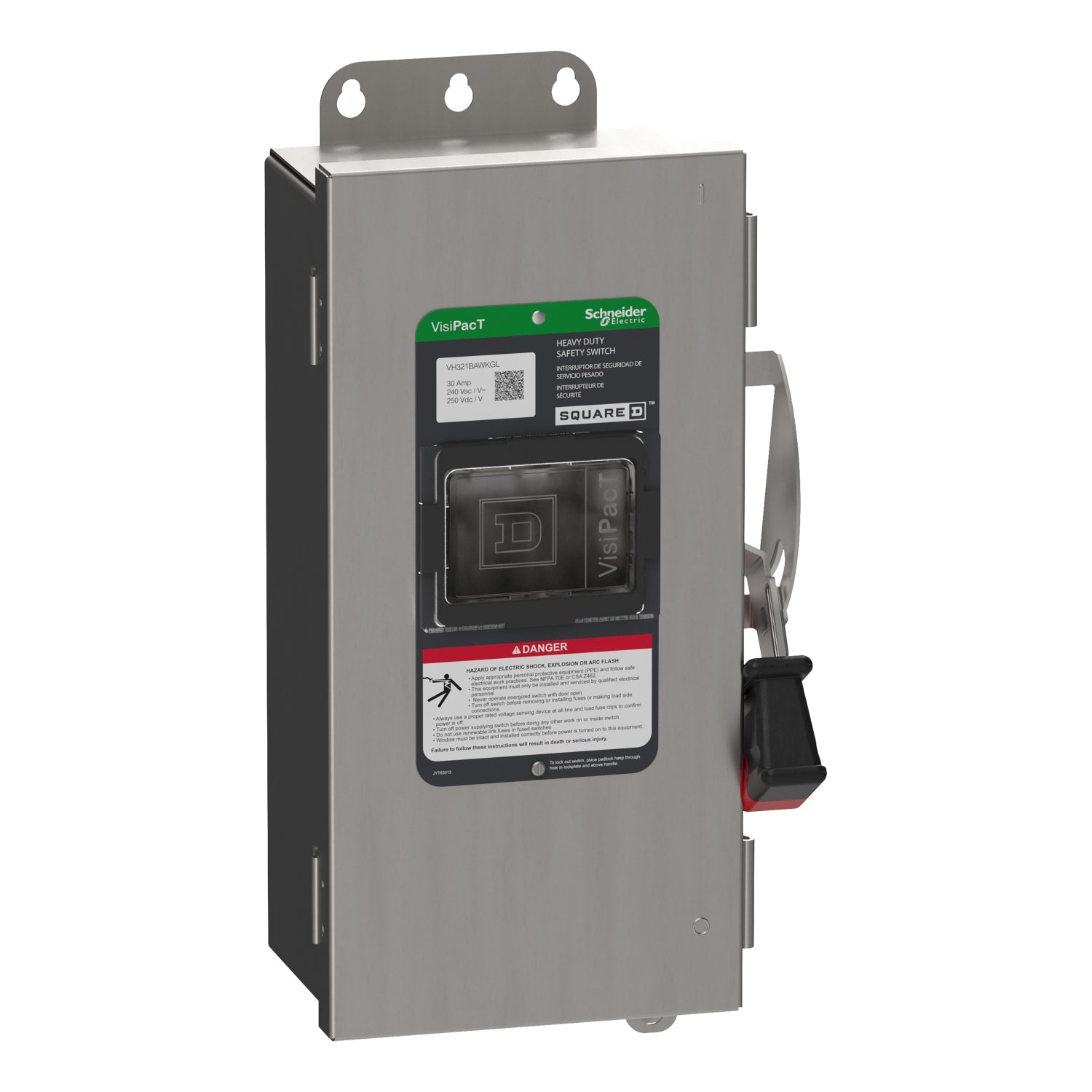

Square D VH321BAWKGL - Fusible Disconnect Switch 30A 240V (3-Pole NEMA 12)

Square D VH321BAWKGL is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 3-pole switch operates at 240V AC with a 30A current rating, providing reliable electrical interruption capabilities. The unit features a robust NEMA 12 enclosure measuring 379.22 mm high × 112.78 mm wide × 78.49 mm deep and weighs 11.02 lb, constructed for durable industrial service. It carries UL certification (file E2915) and complies with industry standards for safety disconnects. Typical applications include motor control centers, industrial machinery, and three-phase electrical systems requiring Class J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 379.22 mm H × 112.78 mm W × 78.49 mm D (14.93 in × 4.44 in × 3.09 in)
• Standards: UL listed file E2915, NEMA 12 rated
• Applications: Industrial machinery, motor control centers, three-phase systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: J
• Wire: 3
• Weight: 11.02 lb
• Enclosure: NEMA 12
• Certification: UL listed
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589342
• GTIN: 03606485893426
