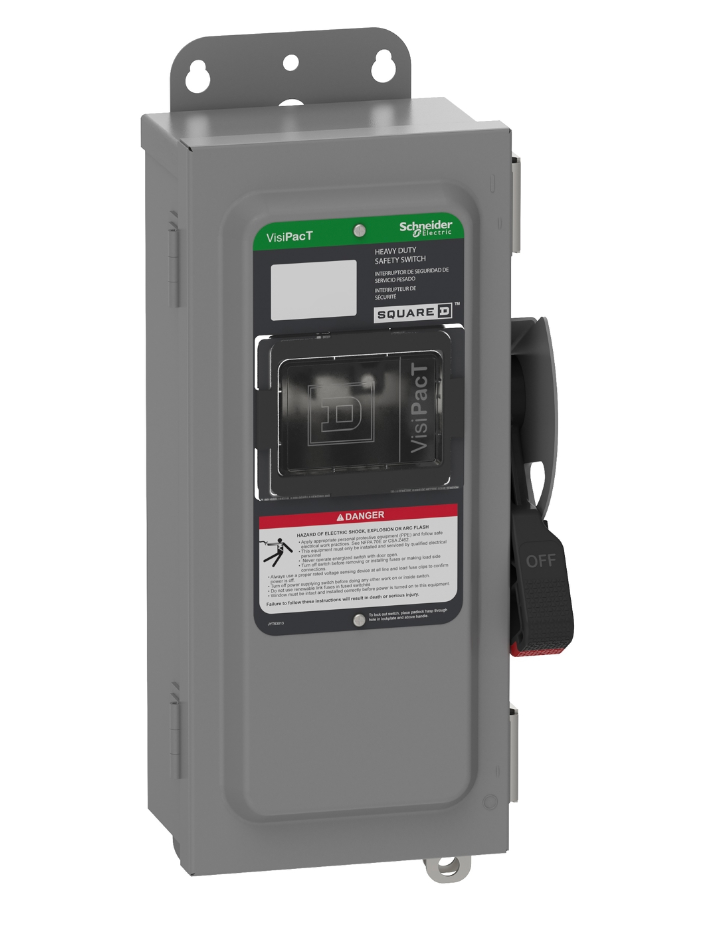

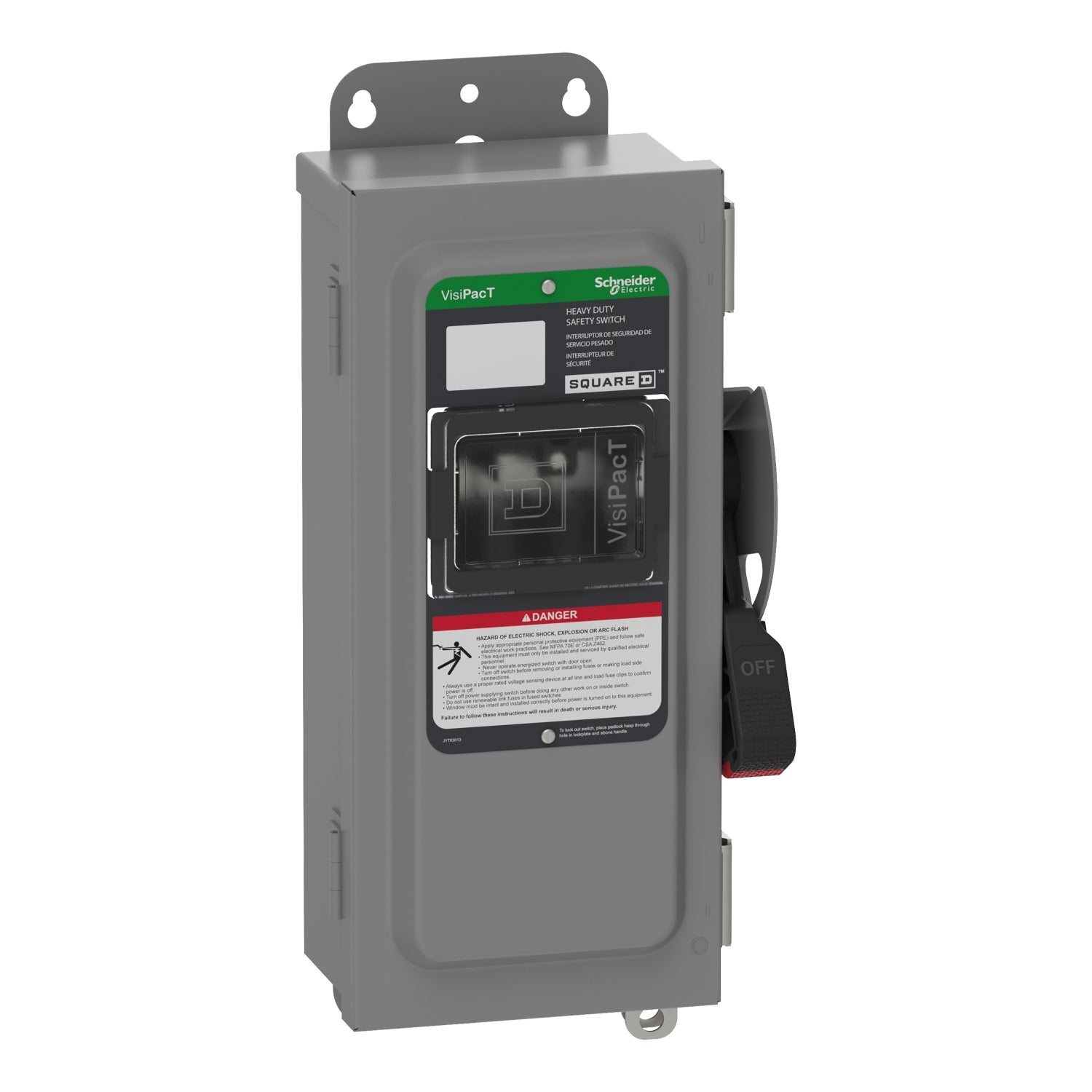

Square D VH321AWKGL - Fusible Disconnect Switch 240V/30A (NEMA 12, 3-Pole)

Square D VH321AWKGL is a fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This UL-listed (file E2914) switch features a 240V voltage rating and 30A current capacity in a compact 370.08mm x 78.49mm x 112.78mm (14.57" x 3.09" x 4.44") NEMA 12 enclosure weighing 11.02 lb. The three-pole single configuration accepts H/K/R/J class fuses and complies with industrial safety standards for three-phase applications.

Key Features & Specifications

• Type: Fusible safety switch with industrial-grade construction
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 370.08mm H x 78.49mm D x 112.78mm W (14.57" x 3.09" x 4.44")
• Standards: UL listed (file E2914), NEMA 12
• Applications: Industrial power distribution, motor control, equipment protection
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 11.02 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589344
• GTIN: 03606485893440
