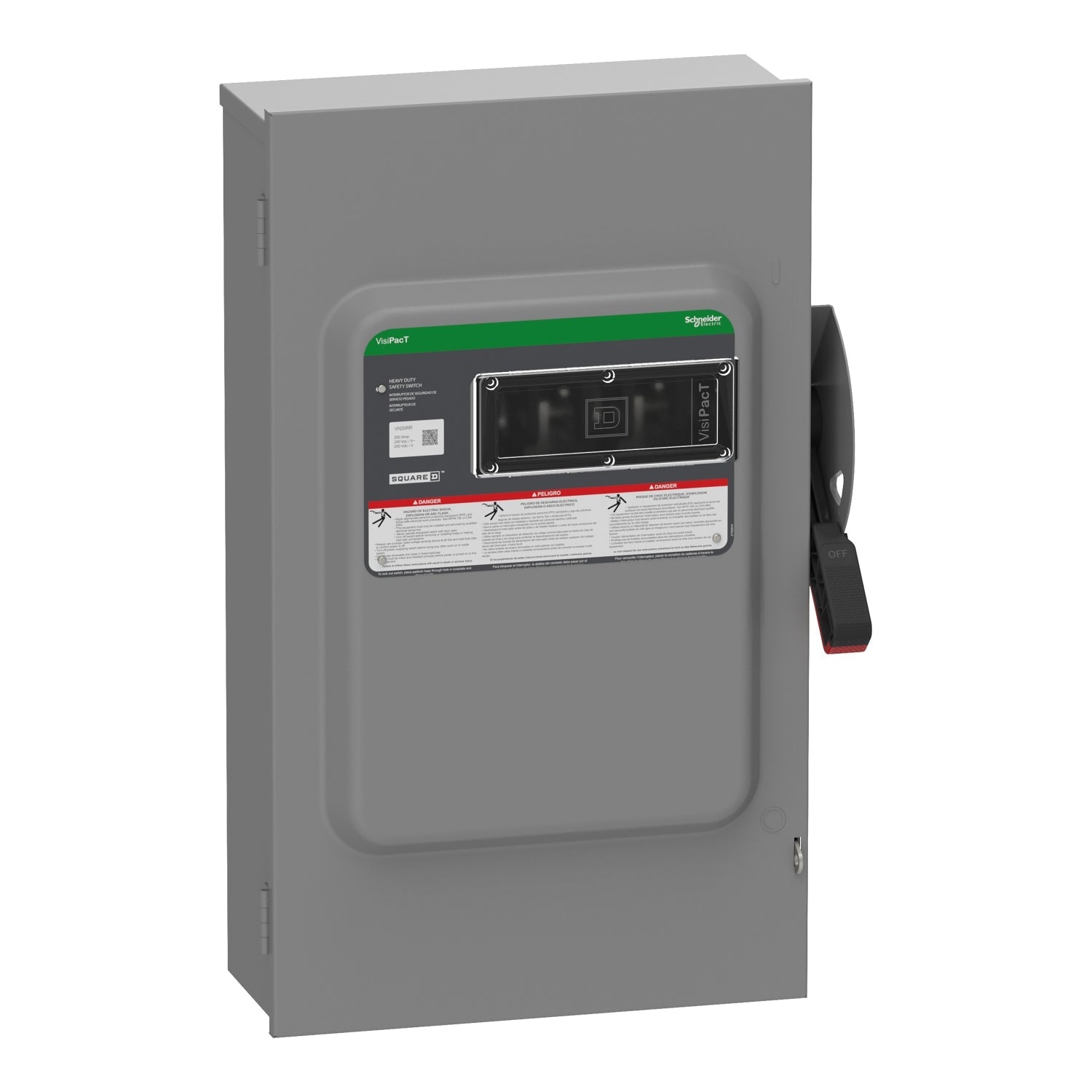

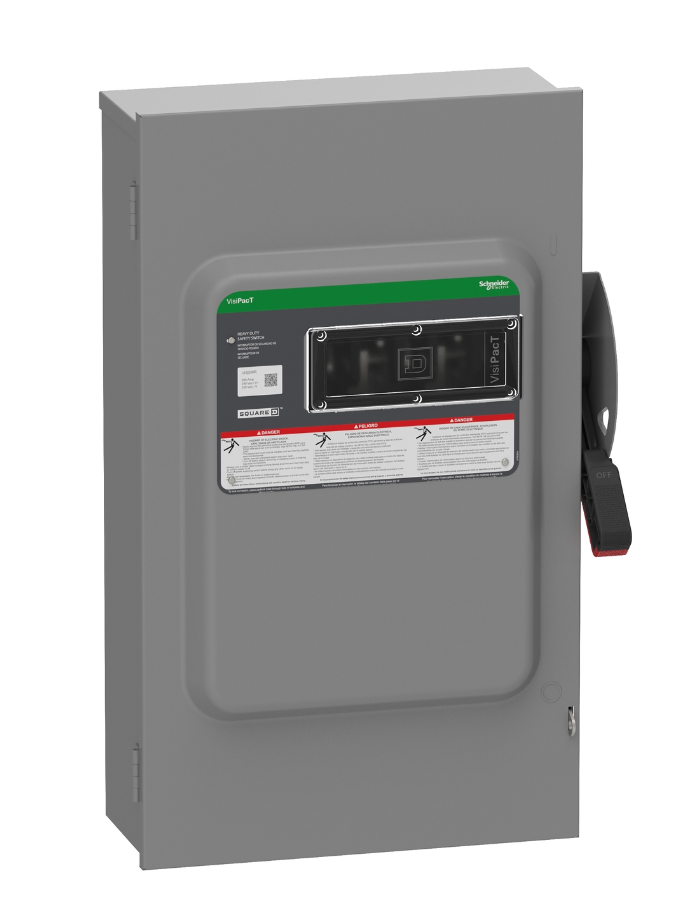

Square D VH224NR - Fusible Disconnect Switch 240V AC 200A (NEMA 3R Enclosure)

Square D VH224NR is a fusible safety disconnect switch designed for industrial power distribution protection. This single-phase unit features a 240V AC voltage rating and 200A current capacity, housed in a NEMA 3R-rated enclosure measuring 17 x 29 inches (431.8 x 736.6 mm) with a robust 54.45 lb (24.7 kg) steel construction. UL-listed (file E2875) and EU RoHS compliant, it accepts H, K, R, and J-class fuses for three-wire circuit protection in manufacturing facilities, commercial buildings, and equipment control panels.

Key Features & Specifications

• Type: Fusible safety disconnect switch with single configuration
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 17 x 29 in (431.8 x 736.6 mm)
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power distribution, equipment control panels
• Switch Style: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: H, K, R, J
• Wire: 3
• Nema Rating: NEMA 3R
• Weight: 54.45 lb (24.7 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589327
• GTIN: 03606485893273
