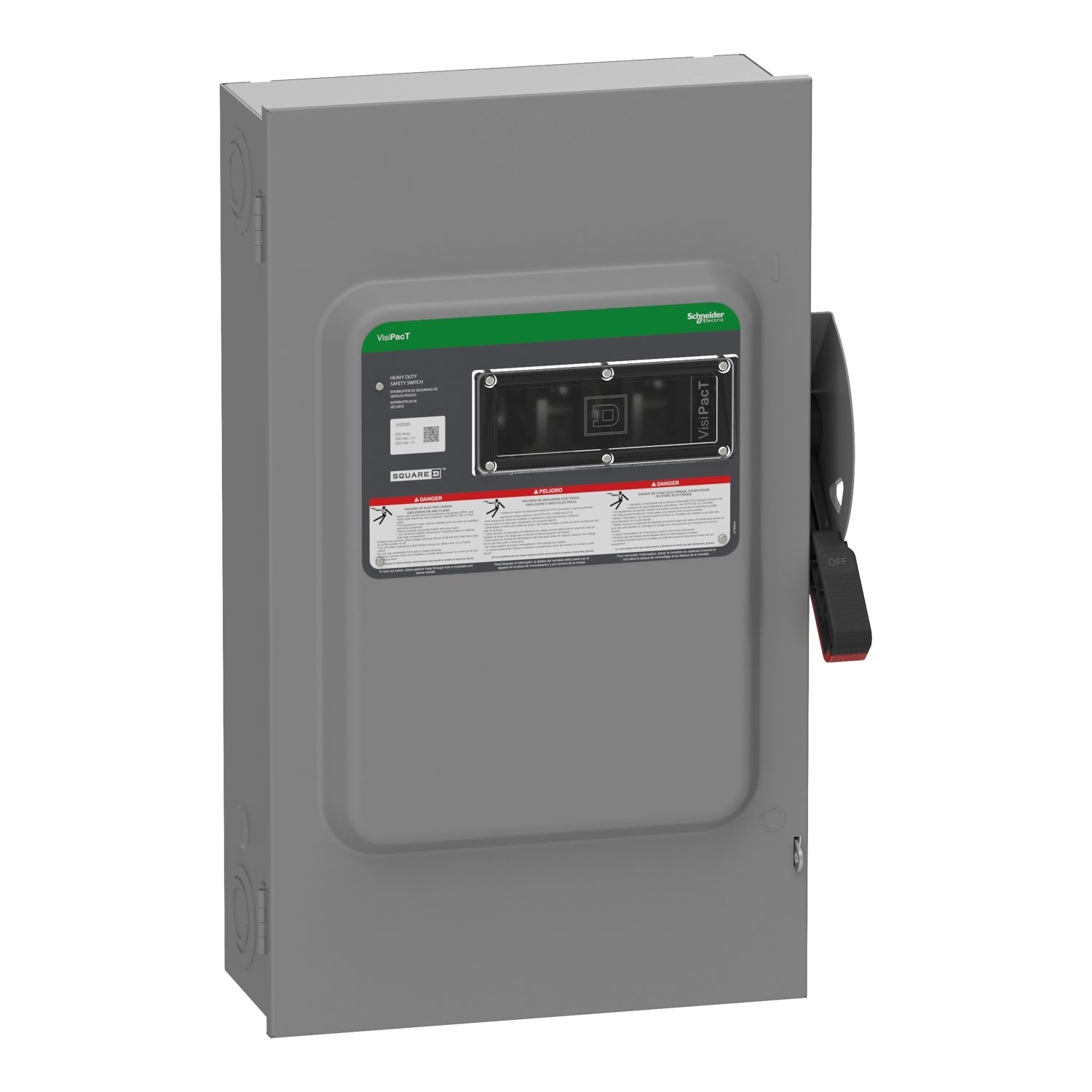

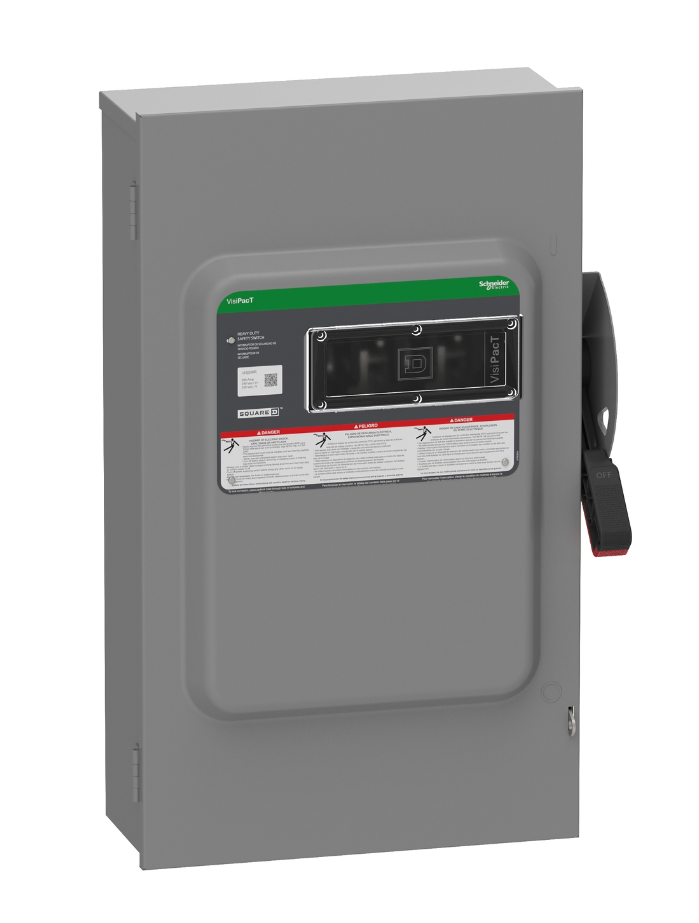

Square D VH224N - Fusible Disconnect Switch 240V AC 200A (NEMA 1 Enclosure)

Square D VH224N is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This UL-listed and RoHS-compliant unit features a 240V AC voltage rating with 200A current capacity, housed in a NEMA 1-rated enclosure measuring 16.5" x 29" and weighing 54.45 lb. The single-configuration, 2-pole switch accepts Class H/K/R/J fuses and provides reliable three-wire connection for single-phase systems, meeting rigorous safety standards (UL File E2875) for electrical distribution applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 16.5" x 29" (419mm x 737mm)
• Standards: UL Listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control, equipment isolation
• Switch Style: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 54.45 lb (24.7 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589326
• GTIN: 03606485893266
