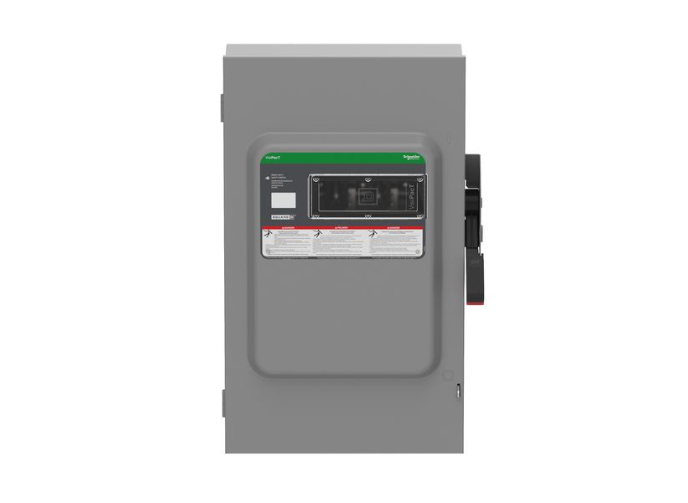

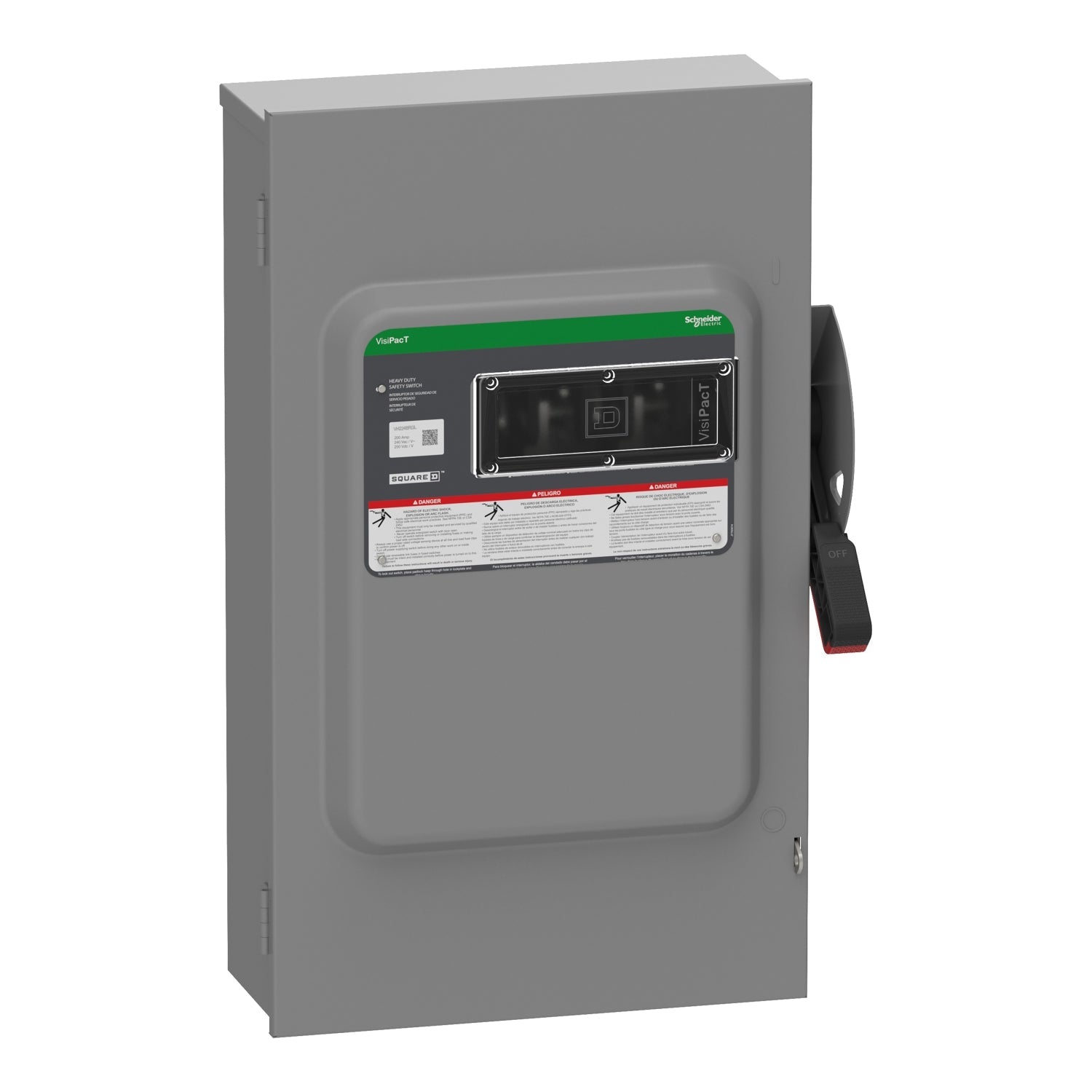

Square D VH224BRGL - Fusible Disconnect Switch 240V 200A (NEMA 3R Enclosure)

Square D VH224BRGL is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. It features a 240V AC voltage rating and 200A current capacity for reliable electrical distribution control. The unit measures 734.82 mm height × 112.78 mm width × 78.49 mm depth and weighs 54.45 lb with a rugged NEMA 3R rated enclosure suitable for outdoor installations. UL listed under file E2908, this single-phase disconnect meets industry safety standards for electrical equipment. Typical applications include industrial machinery, motor control centers, and power distribution systems requiring secure circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch with 2-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 734.82 mm height × 112.78 mm width × 78.49 mm depth
• Standards: UL listed file E2908, NEMA 3R enclosure rating
• Applications: Industrial machinery, motor control centers, power distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Phase: 1
• Poles: 2
• Fuse Class: J
• Wire: 3
• Weight: 54.45 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589331
• GTIN: 03606485893310
