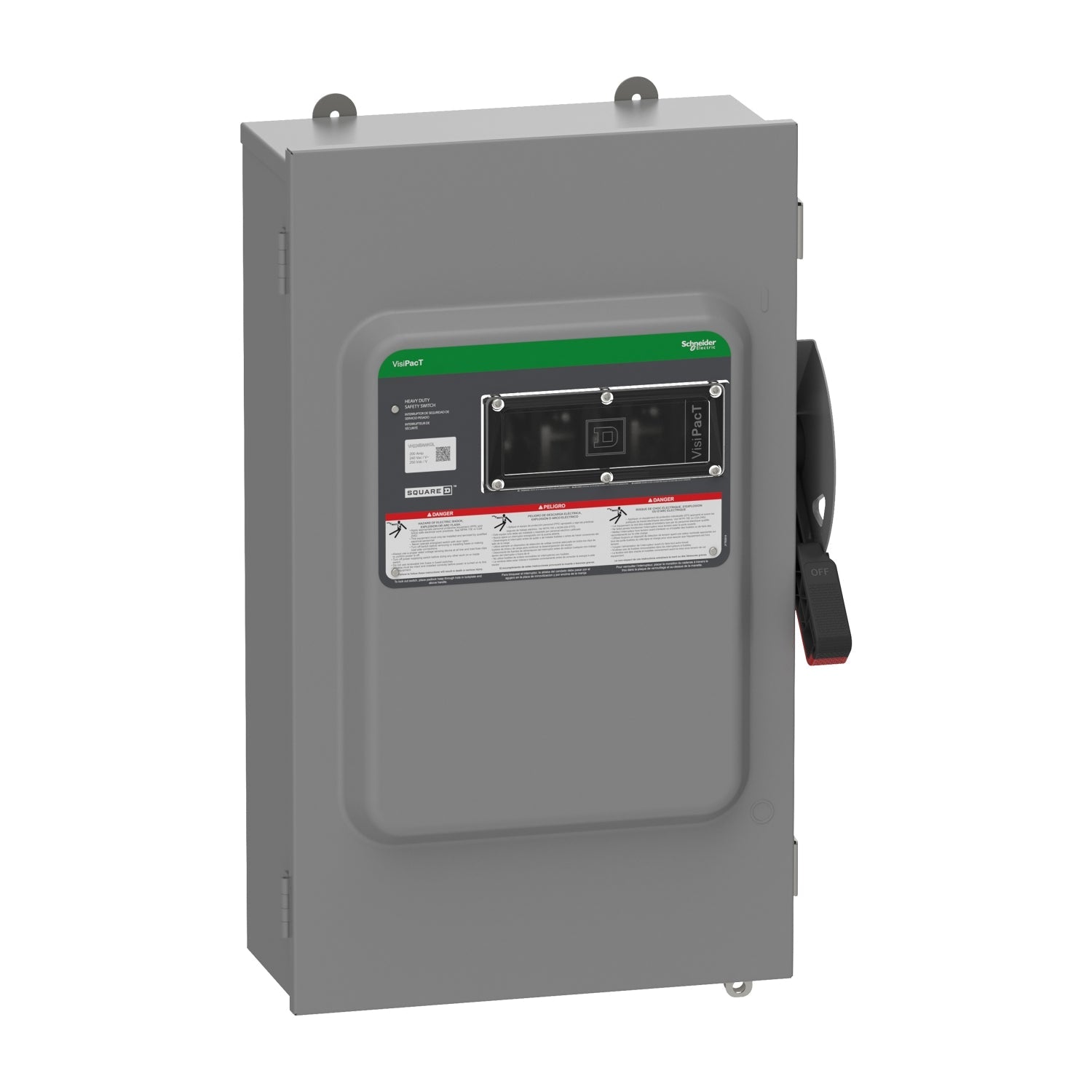

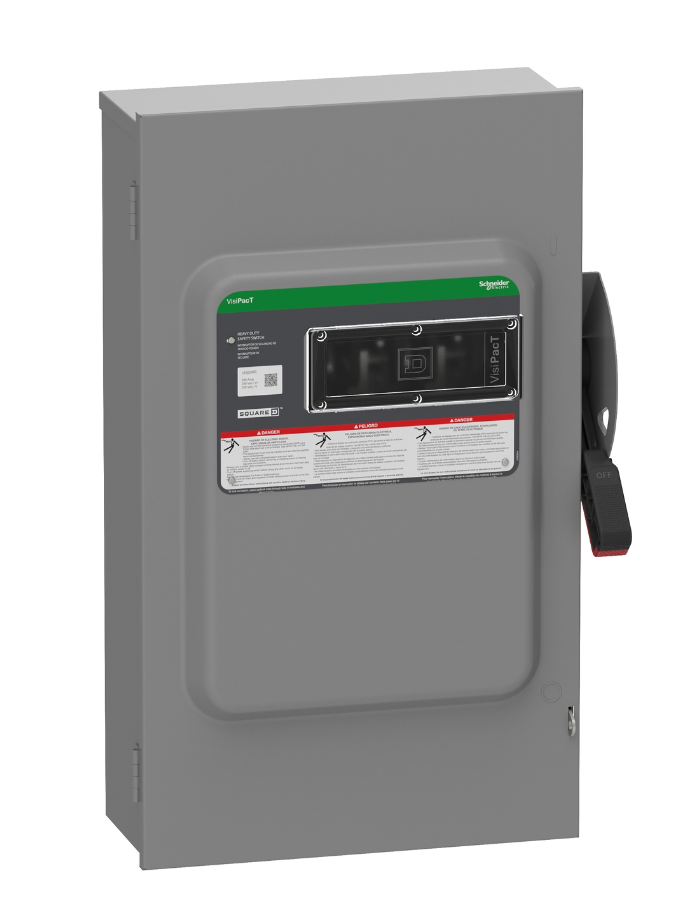

Square D VH224BAWKGL - Fusible Disconnect Switch 240V 200A (NEMA 12 Enclosure)

Square D VH224BAWKGL is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed (file E2906) single-phase switch features a 240V voltage rating and 200A current capacity in a compact 28.93" (734.82mm) x 4.44" (112.78mm) x 3.09" (78.49mm) NEMA 12 enclosure weighing 55.12 lb. The J-class fusible configuration provides reliable circuit interruption with 2 poles and 3-wire connectivity, meeting rigorous industrial safety standards for motor control and equipment isolation applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with J-class fuse protection
• Voltage Rating: 240V AC single-phase
• Current Rating: 200A
• Dimensions: 734.82mm H x 112.78mm W x 78.49mm D
• Standards: UL listed (file E2906), NEMA 12 enclosure
• Applications: Industrial motor control, equipment isolation
• Configuration: Single
• Poles: 2
• Wire: 3
• Fuse Class: J
• Phase: 1
• Weight: 55.12 lb

Product Identification

• UPC: 060648589332
• GTIN: 03606485893327
