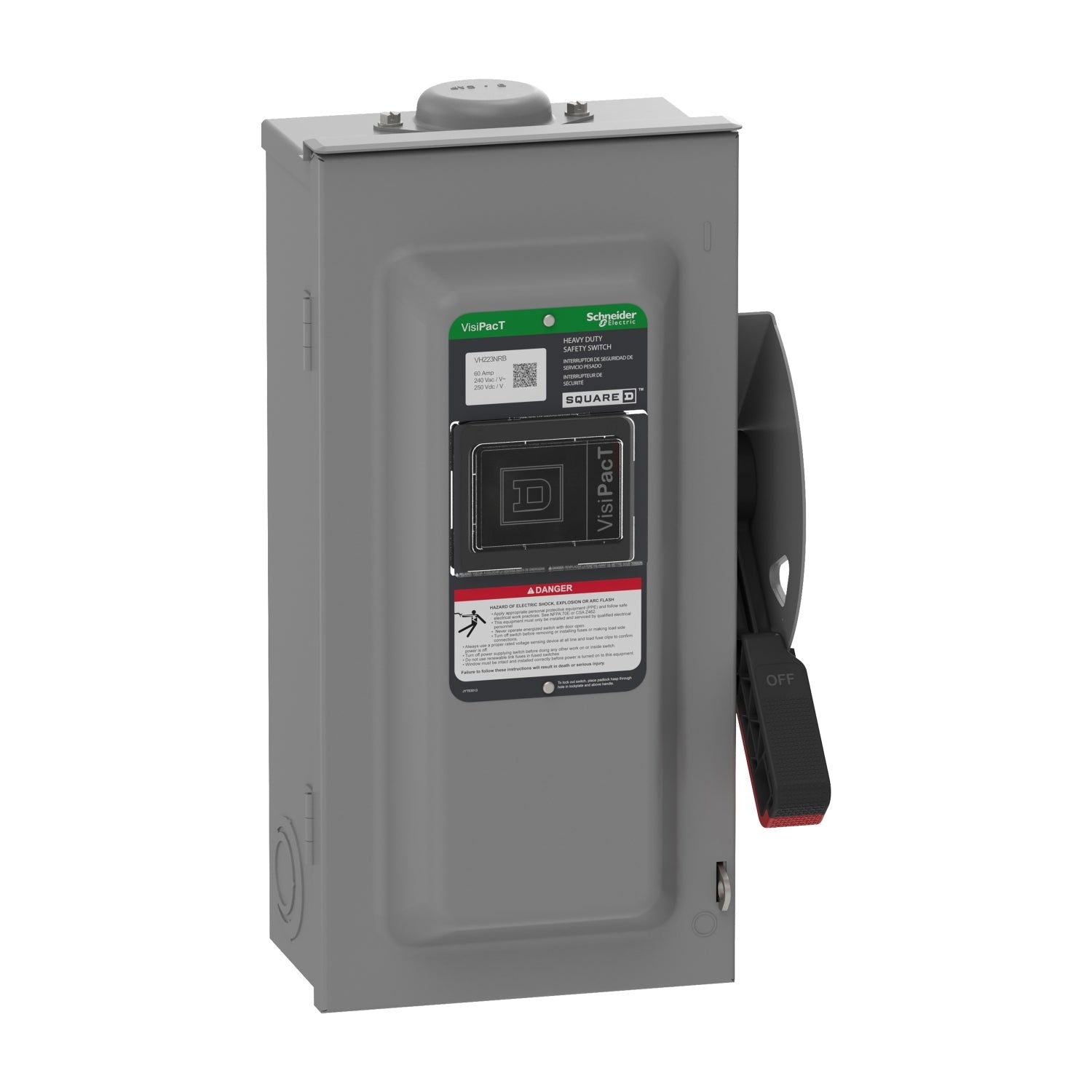

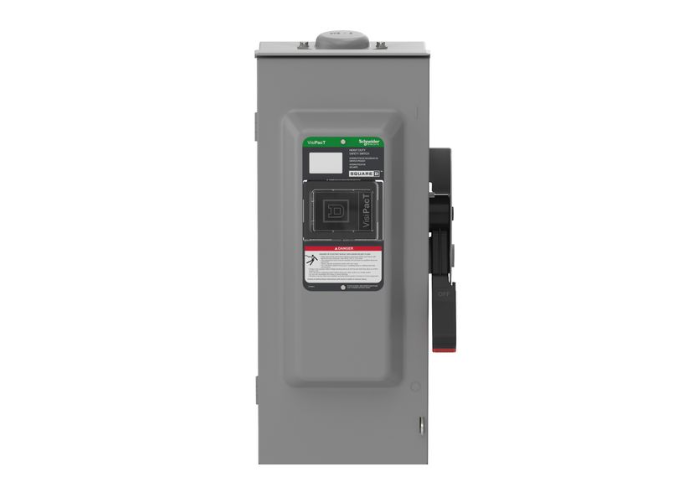

Square D VH223NRB - Fusible Disconnect Switch 240V AC 100A (NEMA 3R Enclosure)

Square D VH223NRB is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. It features a 240V AC voltage rating and 100A current capacity for reliable electrical distribution control. The unit measures 9 x 22 inches with a robust NEMA 3R enclosure weighing 19.84 lb, constructed to accommodate AWG 12 to 1/0 copper/aluminum wiring across its 2-pole, single-phase configuration. Certified to UL standards (file E2875) and EU RoHS compliance, this disconnect switch supports H, K, R, and J fuse classes for comprehensive protection in commercial and industrial power systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 9 in x 22 in
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control centers, panelboards
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• Phase: 1
• Wire: 3
• Wire Size: AWG 12 to AWG 1/0, AWG 14 to AWG 1/0, Aluminum/Copper
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 3R
• Certification: EU RoHS, UL listed file E2875
• Weight: 19.84 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589317
• GTIN: 03606485893174
