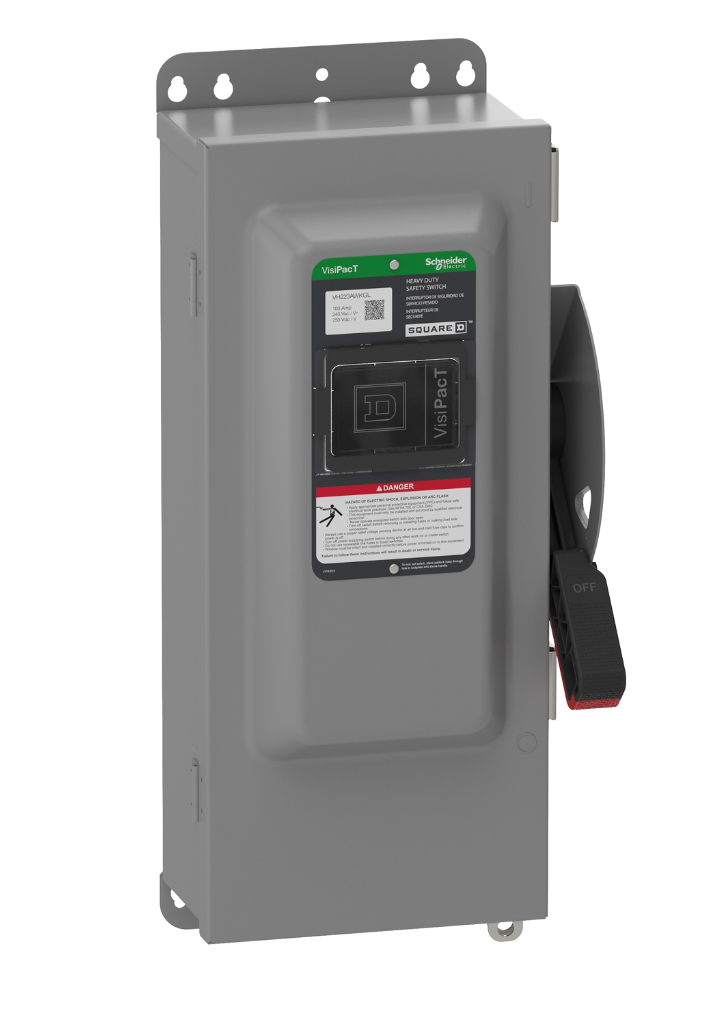

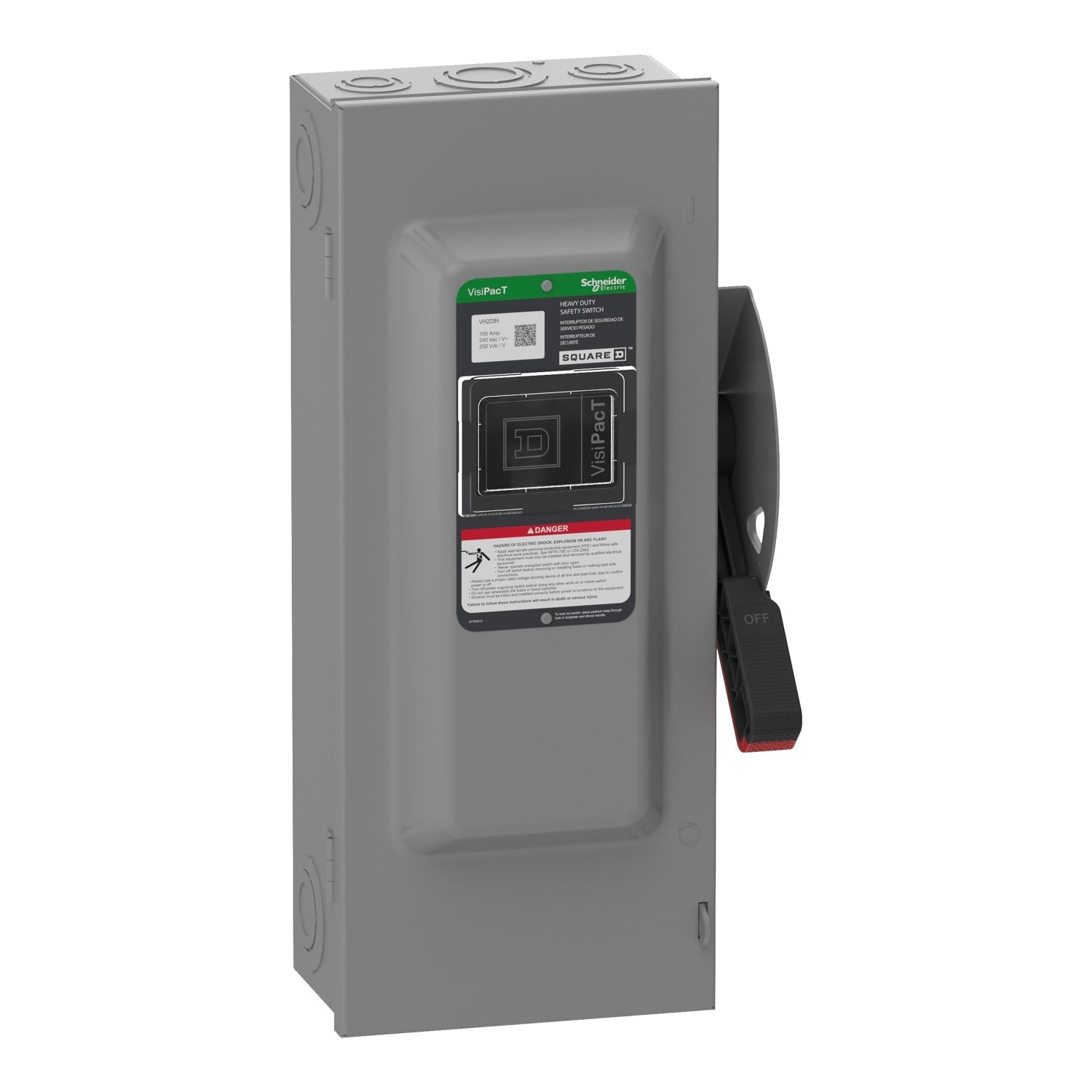

Square D VH223N - Fusible Disconnect Switch 240V AC 100A (NEMA 1 Enclosure)

Square D VH223N is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This UL-listed (file E2875), RoHS-compliant device features a 240V AC voltage rating with 100A current capacity in a compact 9" x 21.75" NEMA 1 enclosure weighing 19.84 lb. Engineered for single-phase systems, its 2-pole configuration accepts H/K/R/J class fuses with three-wire connectivity, providing reliable overcurrent protection in commercial and industrial power distribution applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 9" x 21.75" (228.6mm x 552.45mm)
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control, equipment isolation
• Switch Style: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: H, K, R, J
• Wire: 3
• Weight: 19.84 lb (9 kg)
• Country of Origin: United States

Product Identification

• UPC: 060648589316
• GTIN: 03606485893167
