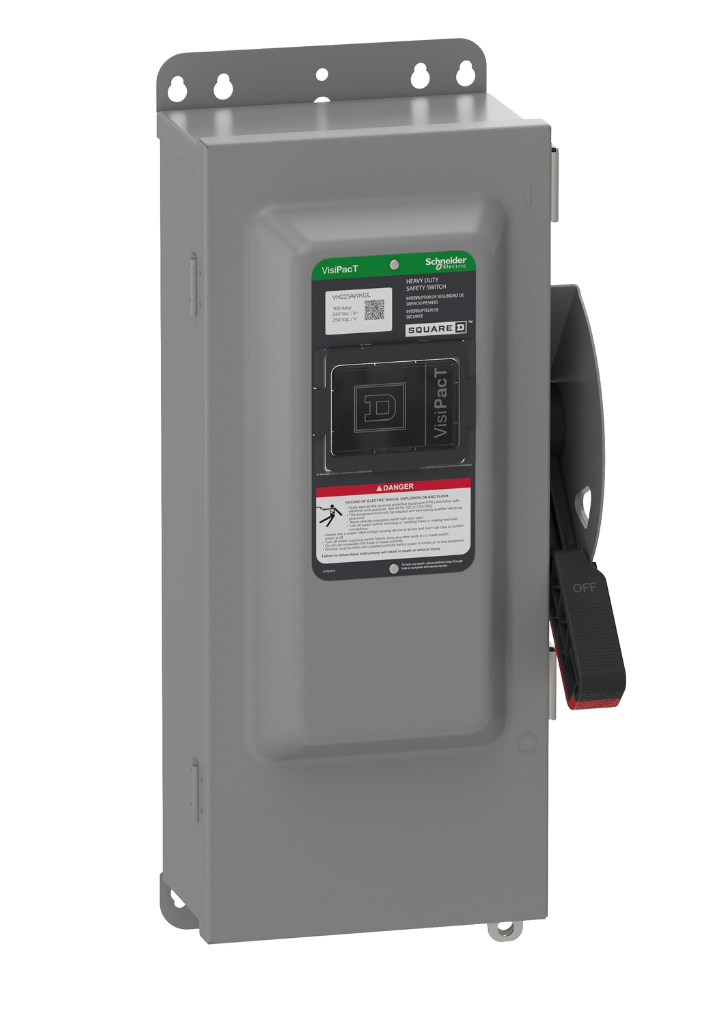

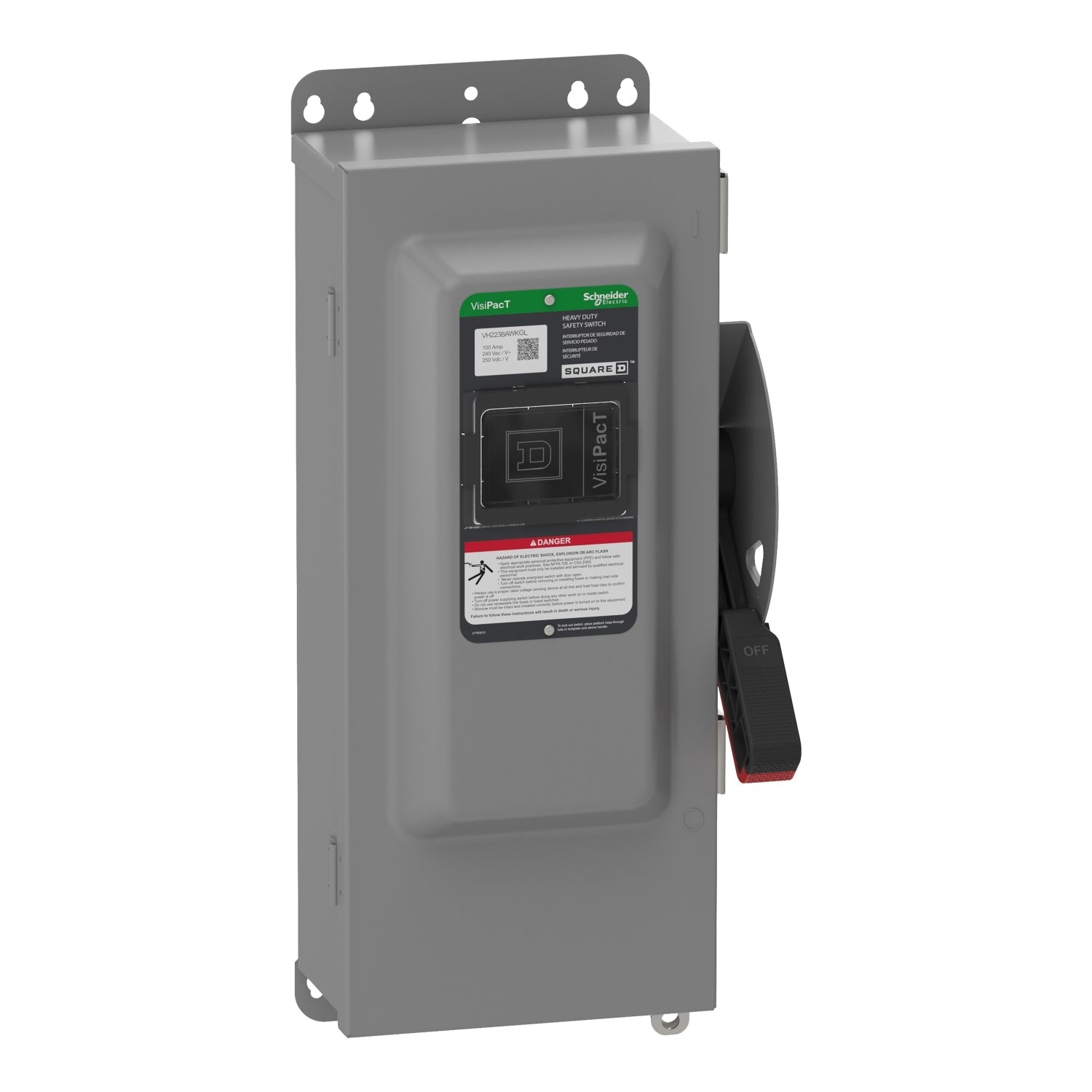

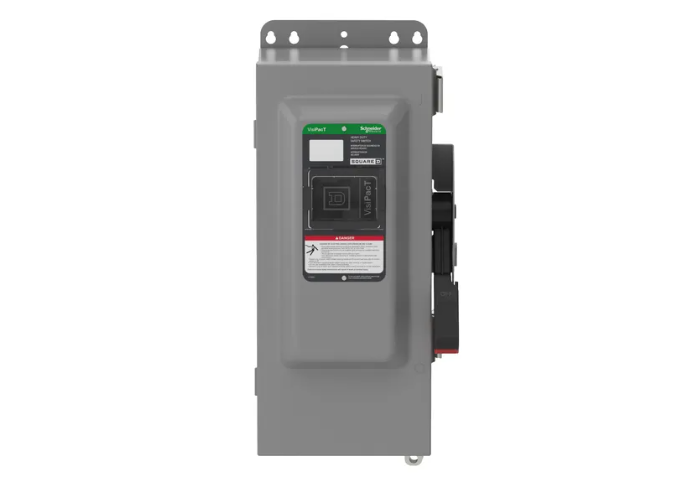

Square D VH223BAWKGL - Fusible Disconnect Switch 240V AC 100A (NEMA 12, 2-Pole)

Square D VH223BAWKGL is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This UL-listed (file E2896) NEMA 12-rated switch features a 240V AC voltage rating and 100A current capacity in a compact 554.74mm x 78.49mm x 112.78mm (21.84" x 3.09" x 4.44") steel enclosure weighing 20.94 lb. The single-configuration, 2-pole design with Class J fuses provides reliable overload protection for three-wire single-phase systems in manufacturing and equipment control applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with steel enclosure
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: 554.74mm x 78.49mm x 112.78mm (21.84" x 3.09" x 4.44")
• Standards: UL listed (file E2896), NEMA 12
• Applications: Industrial equipment, motor control centers
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: J
• Wire: 3
• Weight: 20.94 lb

Product Identification

• UPC: 060648589322
• GTIN: 03606485893228
