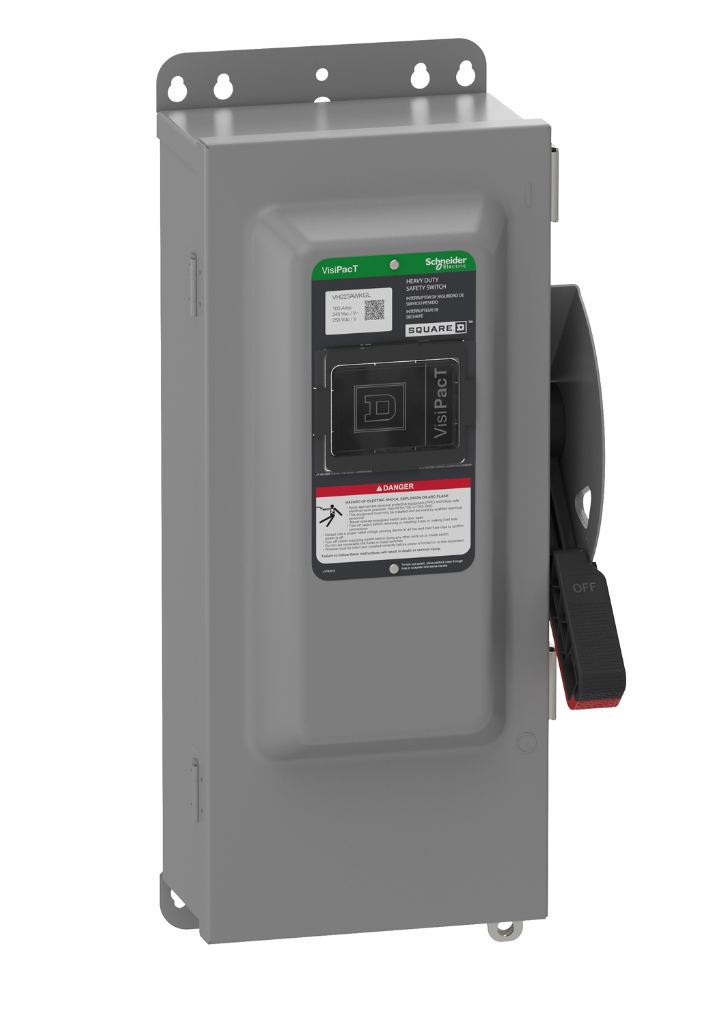

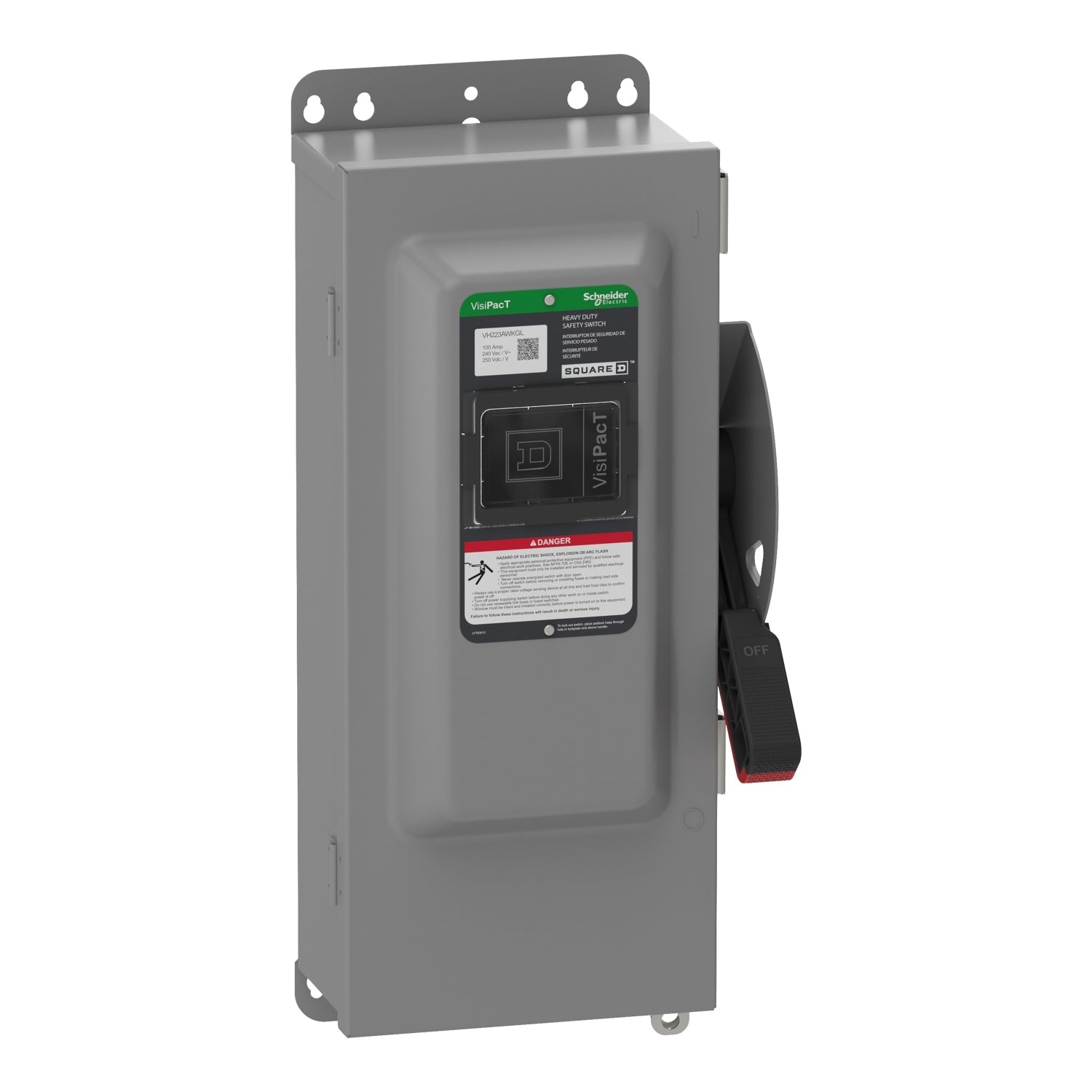

Square D VH223AWKGL - Fusible Safety Switch 100A 240V (NEMA 12 Enclosure)

Square D VH223AWKGL is a fusible safety switch designed for reliable circuit protection and isolation in industrial applications. It features a 240V AC voltage rating and 100A current capacity with 2-pole single phase configuration for comprehensive electrical control. The switch accommodates wire sizes from AWG 14 to AWG 1/0 for both copper and aluminum conductors within a NEMA 12 rated enclosure that provides protection against dust and dripping liquids. UL listed under file E2895, this disconnect meets rigorous safety standards for industrial electrical systems. Typical applications include motor control centers, machinery disconnects, and power distribution panels where secure isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: NEMA 12 enclosure
• Standards: UL listed file E2895
• Applications: Industrial motor control, machinery disconnects, power distribution
• Switch Type: Safety disconnect
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Phase: 1
• Amperage: 100A
• Connection: 3-wire
• Poles: 2
• Protection: Fusible circuit protection
• Wire Size: AWG 12 to AWG 1/0, AWG 14 to AWG 1/0, Aluminum, Copper
• Certification: UL listed
• Nema Rating: NEMA 12
• Mounting: Industrial panel mount
• Enclosure: NEMA 12 rated
• Weight: 9.5 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589324
• GTIN: 03606485893242
