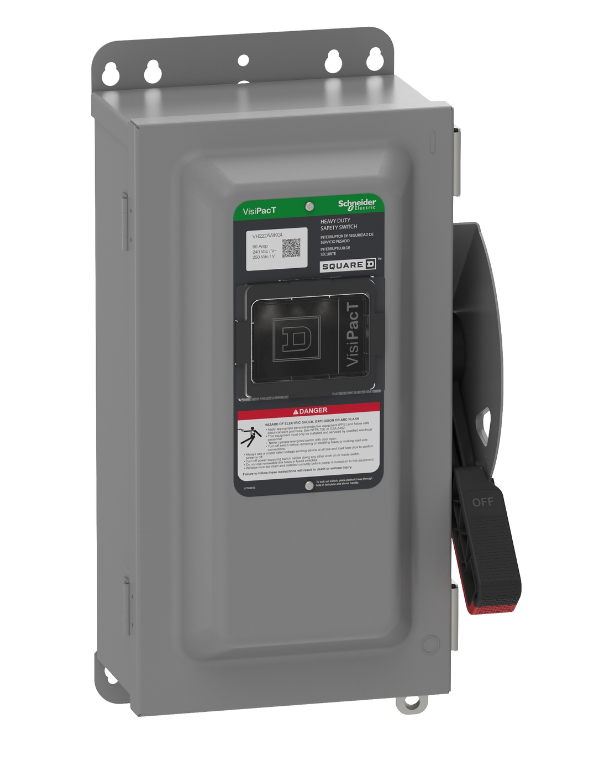

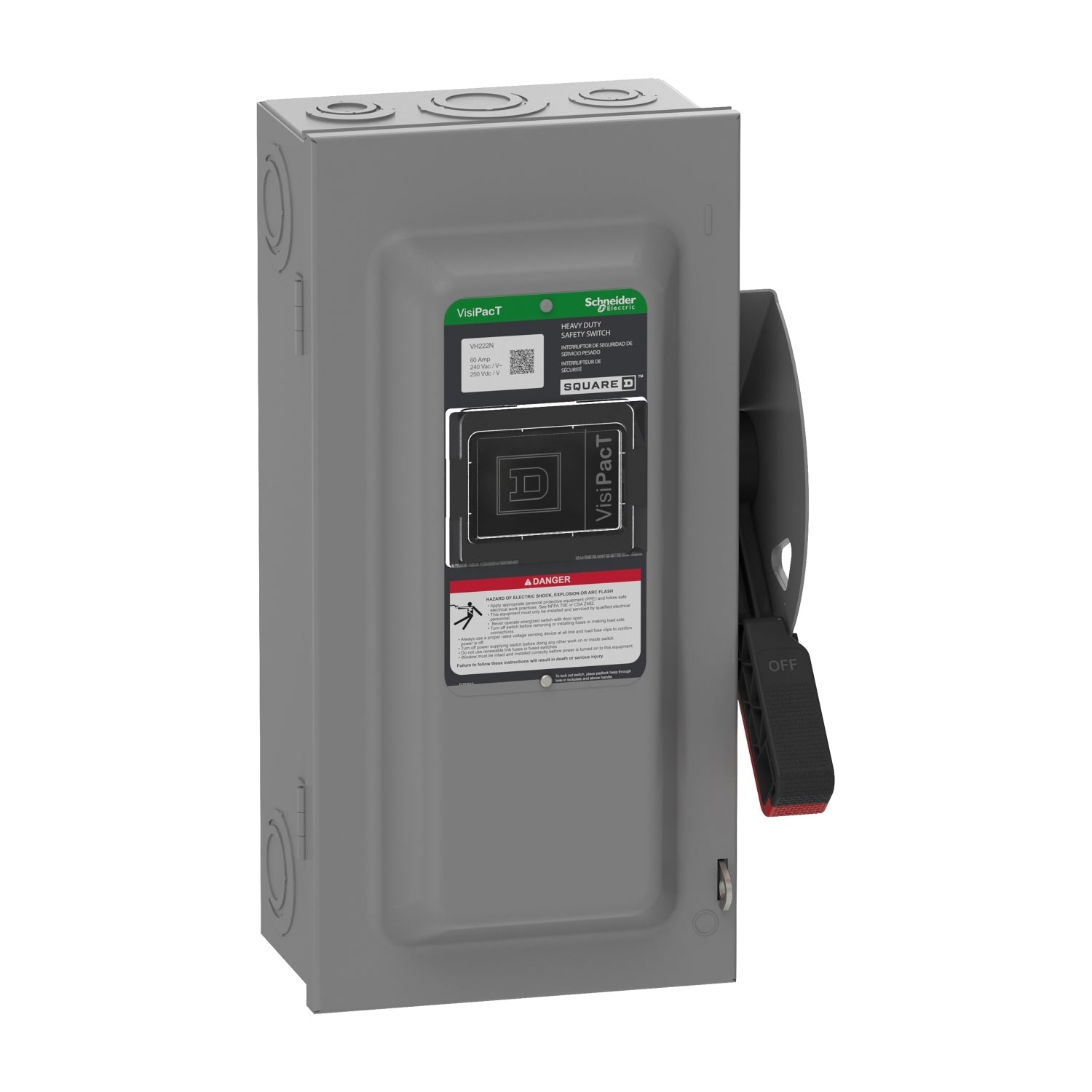

Square D VH222N - Fusible Disconnect Switch 240V AC 60A (NEMA 1 Enclosure)

Square D VH222N is a fusible safety disconnect switch designed for circuit protection in industrial electrical systems. This UL-listed and RoHS-compliant device features a 240V AC voltage rating with 60A current capacity, housed in a NEMA 1-rated enclosure measuring 6.25" x 14.5" (159mm x 368mm). The single-configuration, 2-pole switch accepts H, K, R, and J-class fuses for flexible protection across three-wire systems, meeting rigorous safety standards for commercial and industrial power distribution applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 6.25" x 14.5" (159mm x 368mm)
• Standards: UL listed (File E2875), EU RoHS compliant
• Applications: Industrial power distribution, motor control, panel protection
• Configuration: Single
• Poles: 2
• Fuse Class: H, K, R, J
• Wire: 3
• Phase: 1
• Weight: 8.82 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589306
• GTIN: 03606485893068
