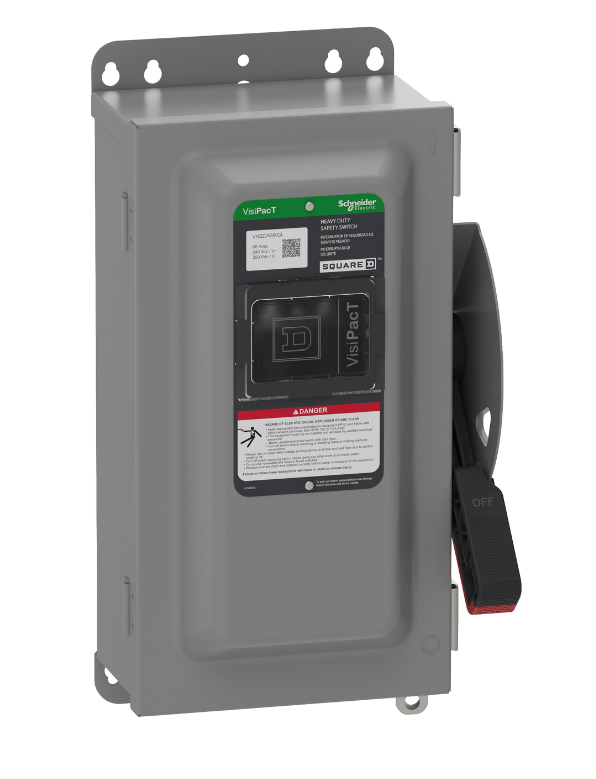

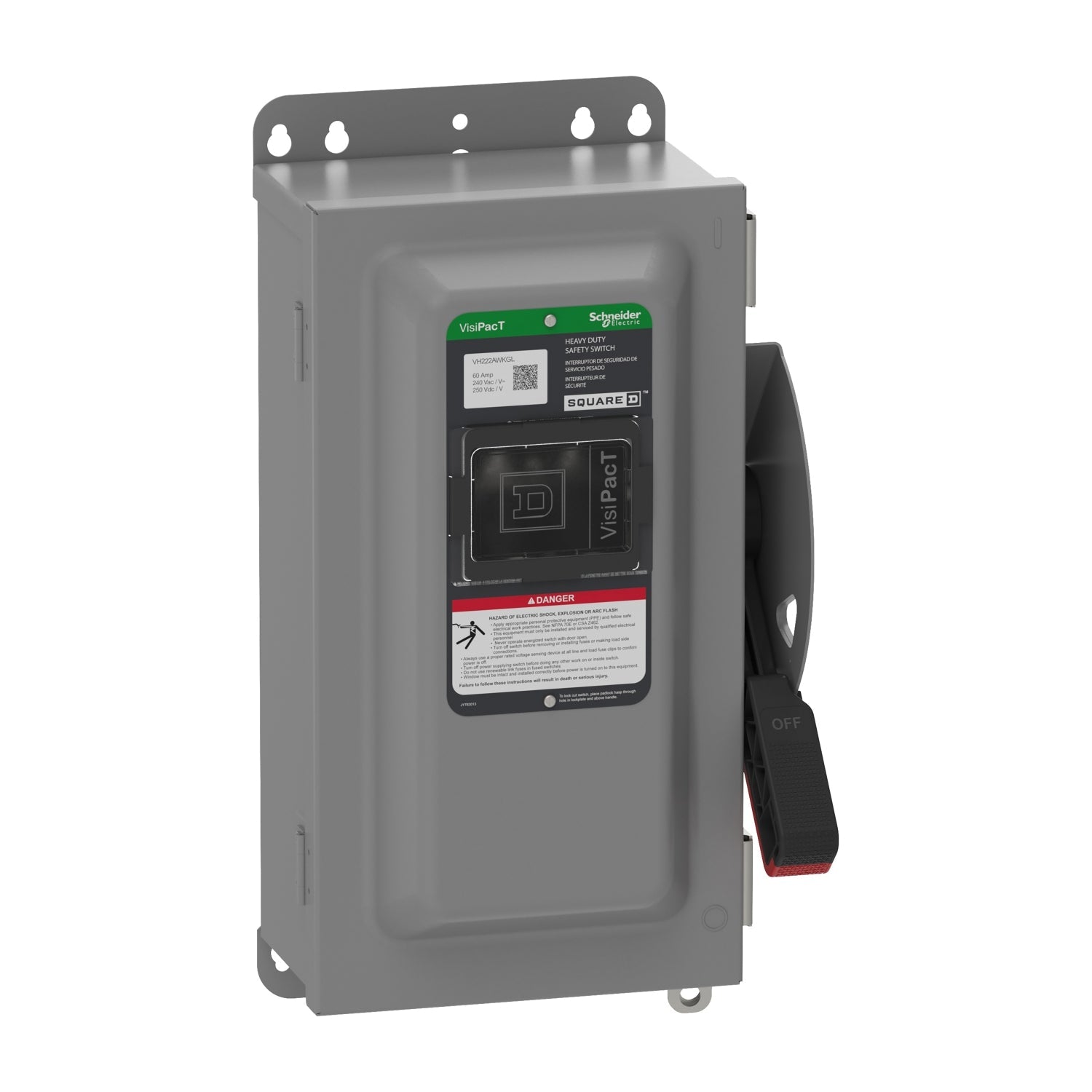

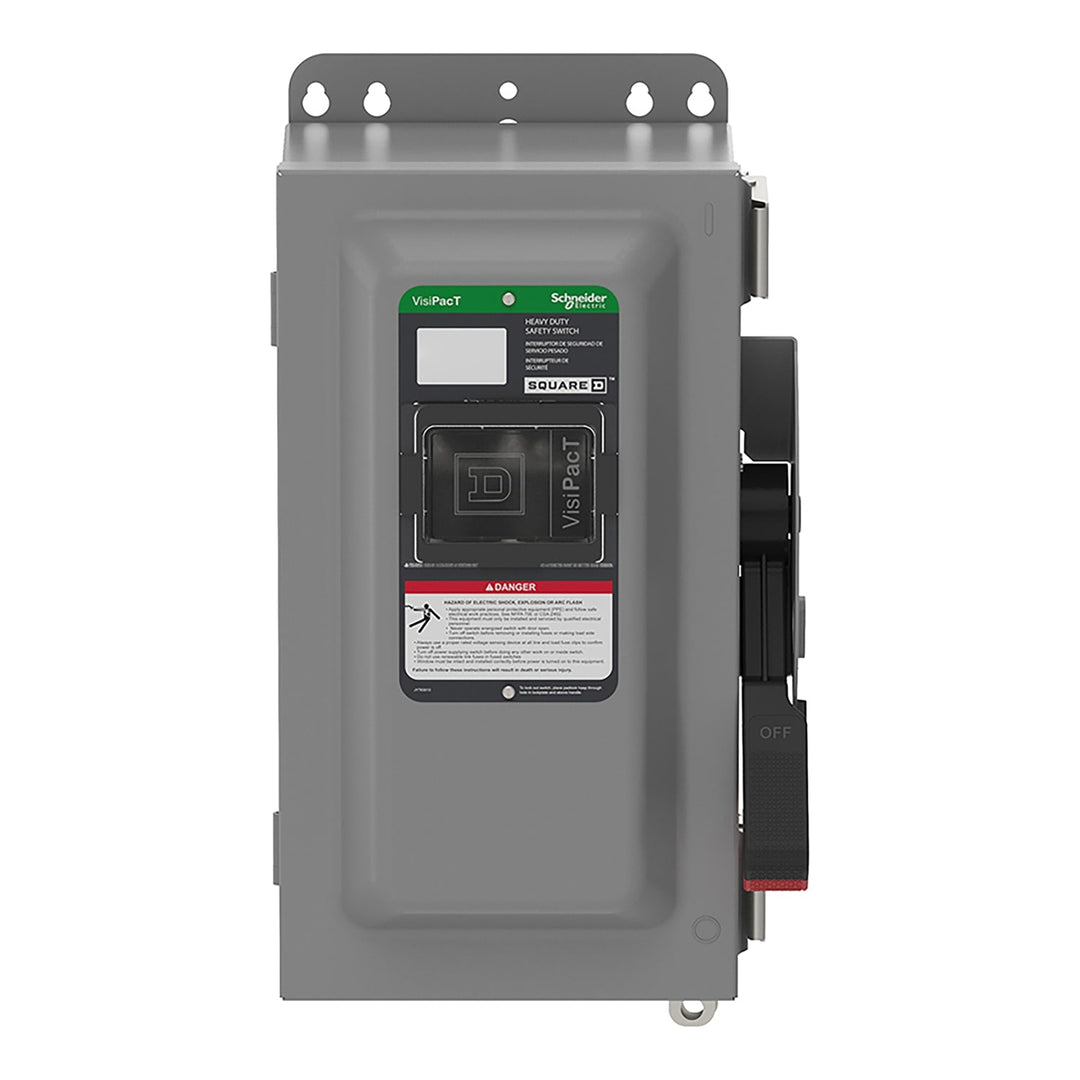

Square D VH222AWKGL - Fusible Disconnect Switch 240V AC 60A (NEMA 12 Enclosure)

Square D VH222AWKGL is a fusible safety disconnect switch designed for circuit isolation and overload protection in industrial electrical systems. It features a 240V AC voltage rating and 60A current capacity, housed in a NEMA 12-rated enclosure measuring 370.08mm (H) x 143.26mm (W) x 136.65mm (D) with an 11.02 lb steel construction. UL-listed (file E2885) for safety compliance, this single-configuration switch accepts H/K/R/J-class fuses and provides reliable single-phase power interruption with its 2-pole design. Typical applications include motor control centers, HVAC systems, and industrial machinery requiring compliant disconnection means.

Key Features & Specifications

• Type: Fusible safety disconnect switch with steel enclosure
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 370.08 x 143.26 x 136.65 mm (HxWxD)
• Standards: UL listed (file E2885), NEMA 12
• Applications: Motor controls, industrial machinery, HVAC systems
• Configuration: Single
• Poles: 2
• Fuse Class: H, K, R, J compatible
• Phase: 1
• Wire: 3
• Weight: 11.02 lb

Product Identification

• UPC: 060648589314
• GTIN: 03606485893143
