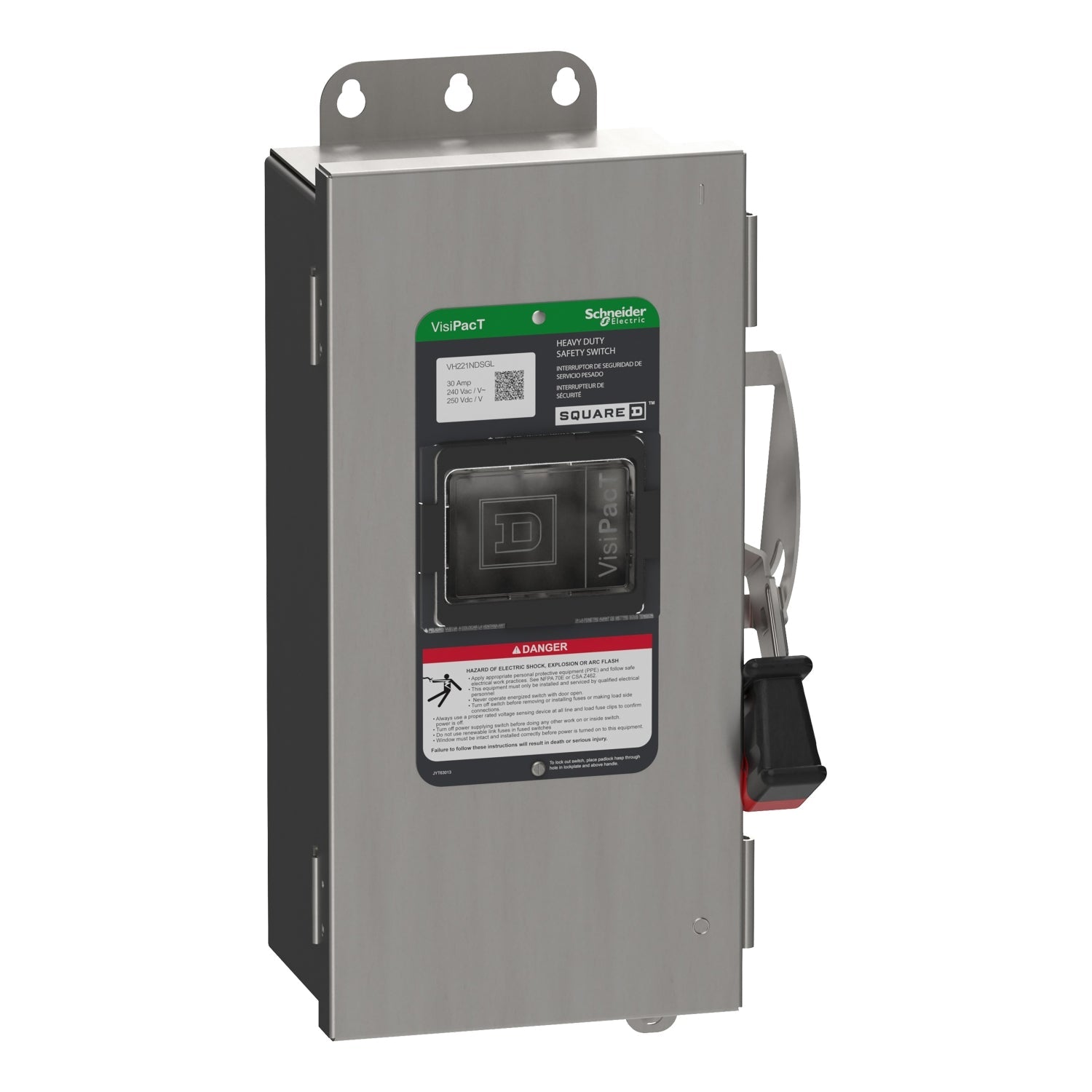

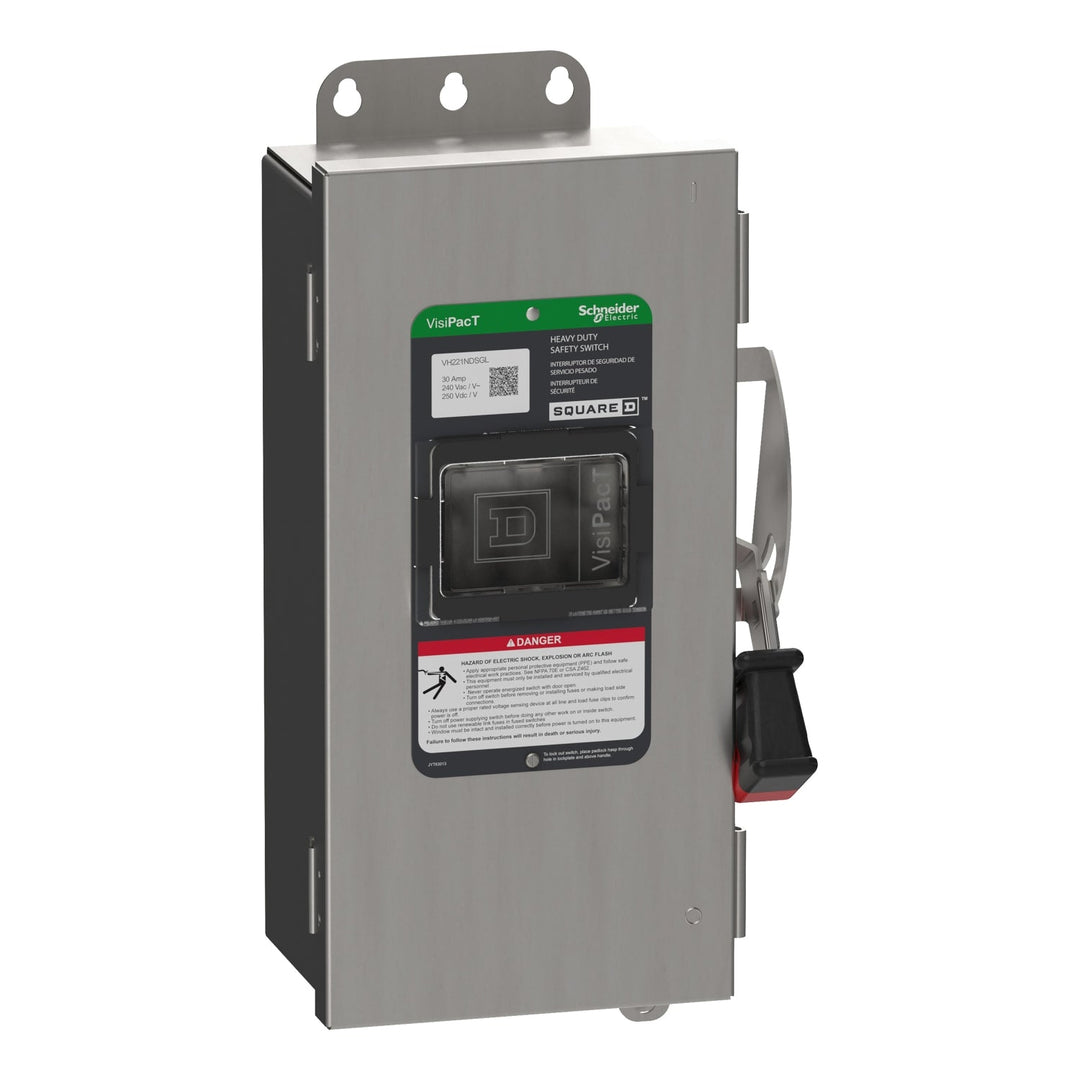

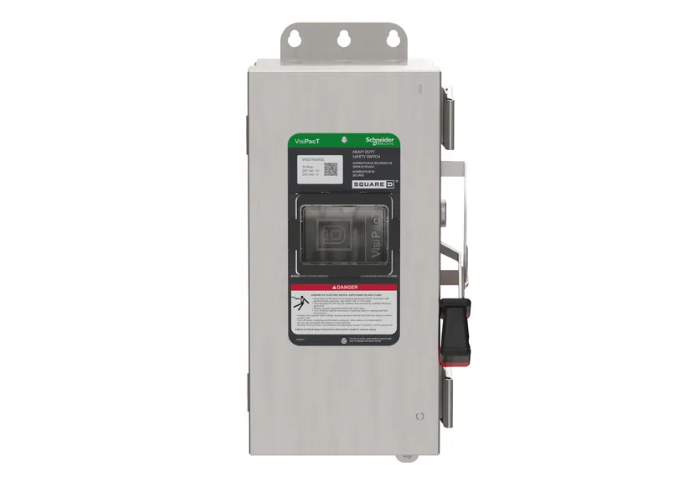

Square D VH221NDSGL - Fusible Disconnect Switch 30A 240V (NEMA 4X Enclosure)

Square D VH221NDSGL is a fusible safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. It features a 240V AC voltage rating and 30A current capacity for single-phase electrical systems, providing secure power interruption capabilities. The switch accommodates wire sizes from AWG 14 to AWG 6 for both copper and aluminum conductors within its NEMA 4X rated enclosure, ensuring durability in harsh environments. UL listed under file E2883, this disconnect meets rigorous safety standards while operating effectively across a temperature range of -25°C to 70°C. Typical applications include industrial control panels, machinery disconnects, and electrical distribution systems requiring fusible protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade operation
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: Standard industrial disconnect size
• Standards: UL listed file E2883, NEMA 4X rated
• Applications: Industrial control panels, machinery disconnects, electrical distribution systems
• Switch Type: Safety disconnect
• Configuration: Single unit
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Shipping Dimensions: Standard industrial packaging
• Phase: 1
• Voltage: 240V AC
• Amperage: 30A
• Connection: Screw terminal
• Poles: 2
• Protection: Fusible circuit protection
• Functions: Circuit isolation and safety disconnection
• Wire: 3-wire configuration
• Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6 (Aluminum, Copper)
• Certification: UL listed file E2883
• Nema Rating: NEMA 4X
• Mounting: Standard industrial panel mount
• Enclosure: NEMA 4X rated for harsh environments
• Switch Style: Fusible

Product Identification

• UPC: 060648589299
• GTIN: 03606485892993
