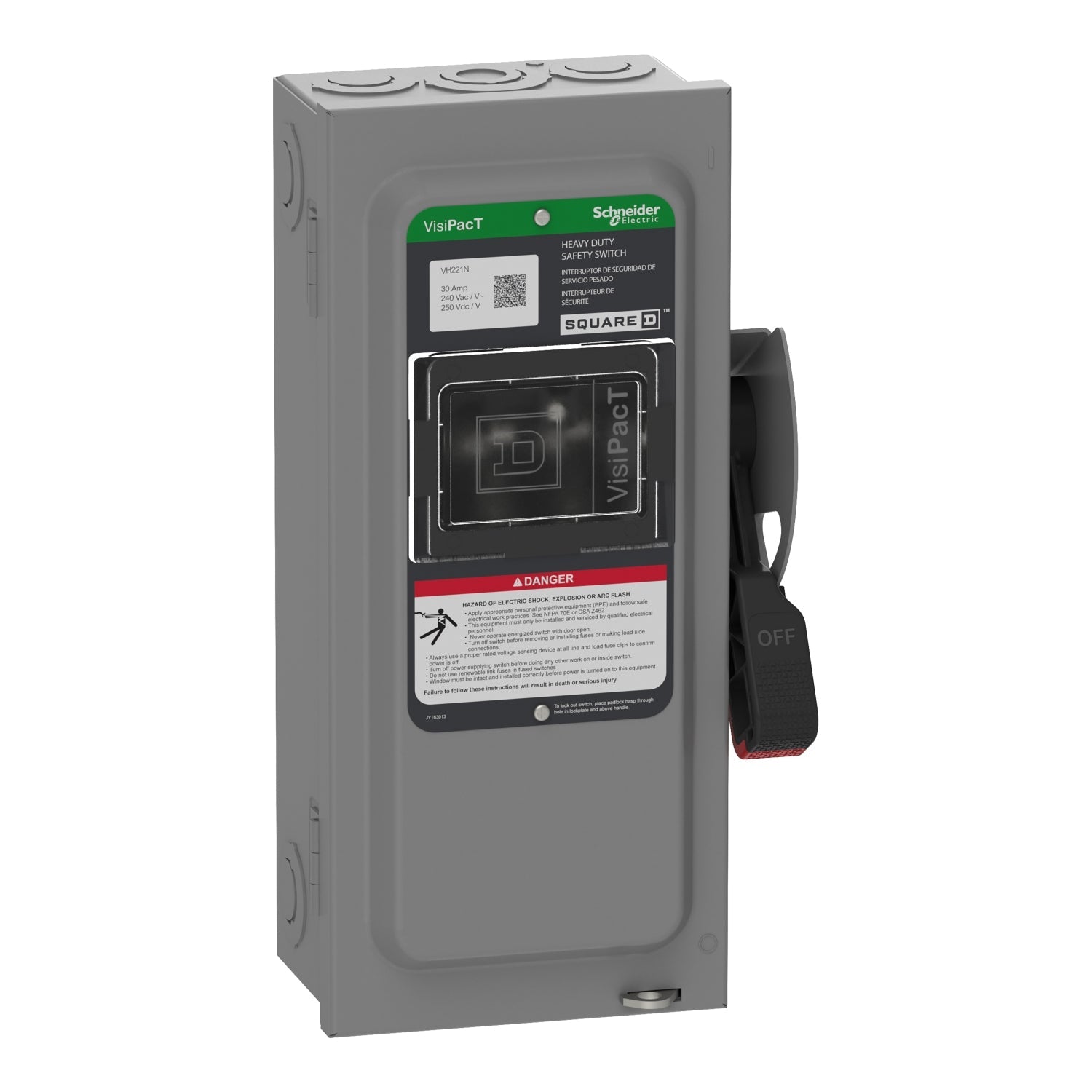

Square D VH221N - Fusible Disconnect Switch 30A 240V AC (NEMA 1 Enclosure)

Square D VH221N is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. This 30A rated switch operates at 240V AC and features a compact NEMA 1 enclosure measuring 6¼" x 14½" with an 8.82 lb construction weight. The unit carries UL listing (file E2875) and EU RoHS certification, ensuring compliance with international safety standards. Its 2-pole single configuration accepts H, K, R, and J class fuses while accommodating copper or aluminum wiring from AWG 14 to AWG 6, making it suitable for motor control centers and power distribution panels operating within -25°C to 70°C temperature ranges.

Key Features & Specifications

• Type: Fusible safety disconnect switch with NEMA 1 enclosure
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 6¼" x 14½"
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial motor control, power distribution panels
• Switch Type: Fusible disconnect
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Phase: 1
• Poles: 2
• Wire: 3-wire configuration
• Wire Size: AWG 14 to AWG 6, AWG 12 to AWG 6 (Aluminum/Copper)
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 1
• Weight: 8.82 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589296
• GTIN: 03606485892962
