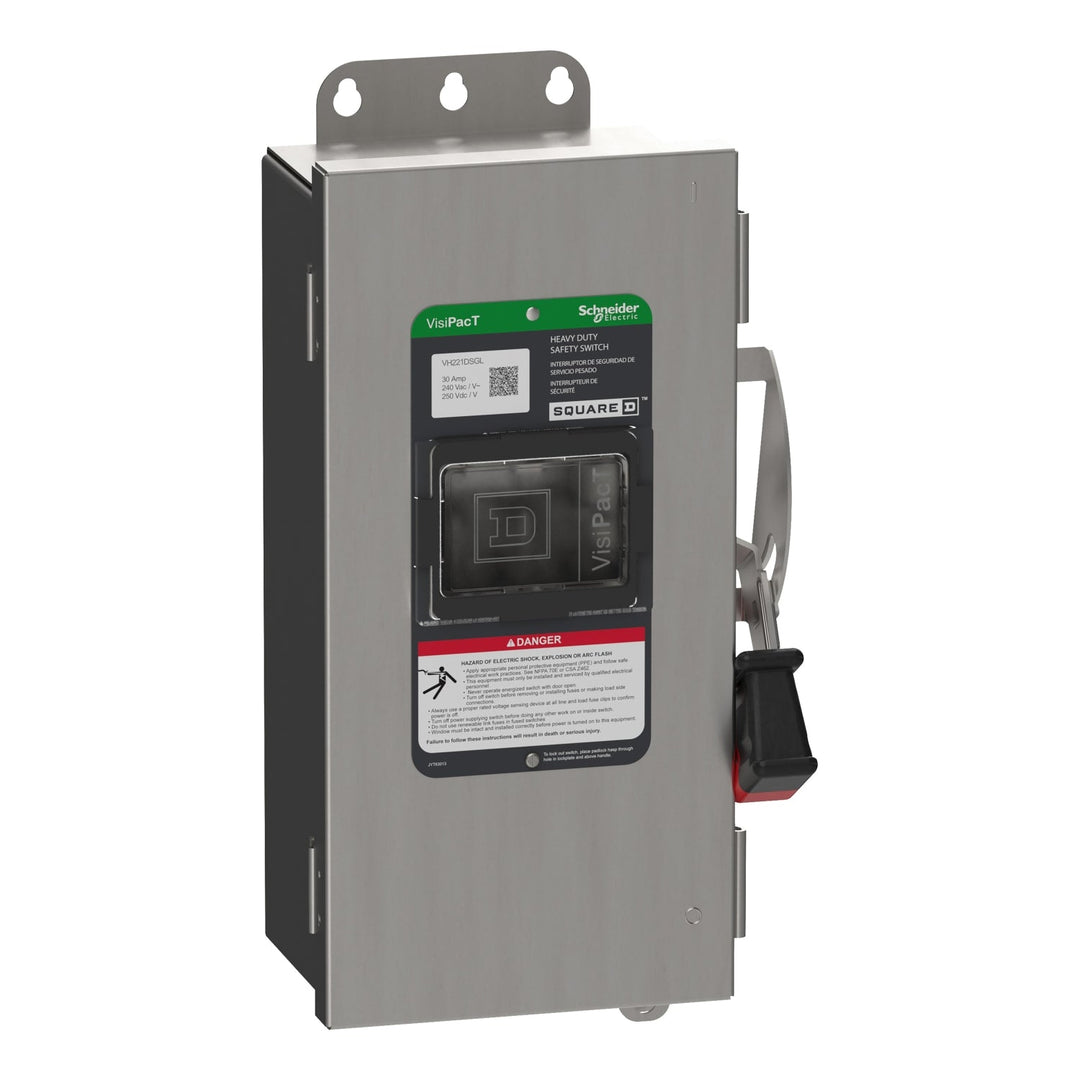

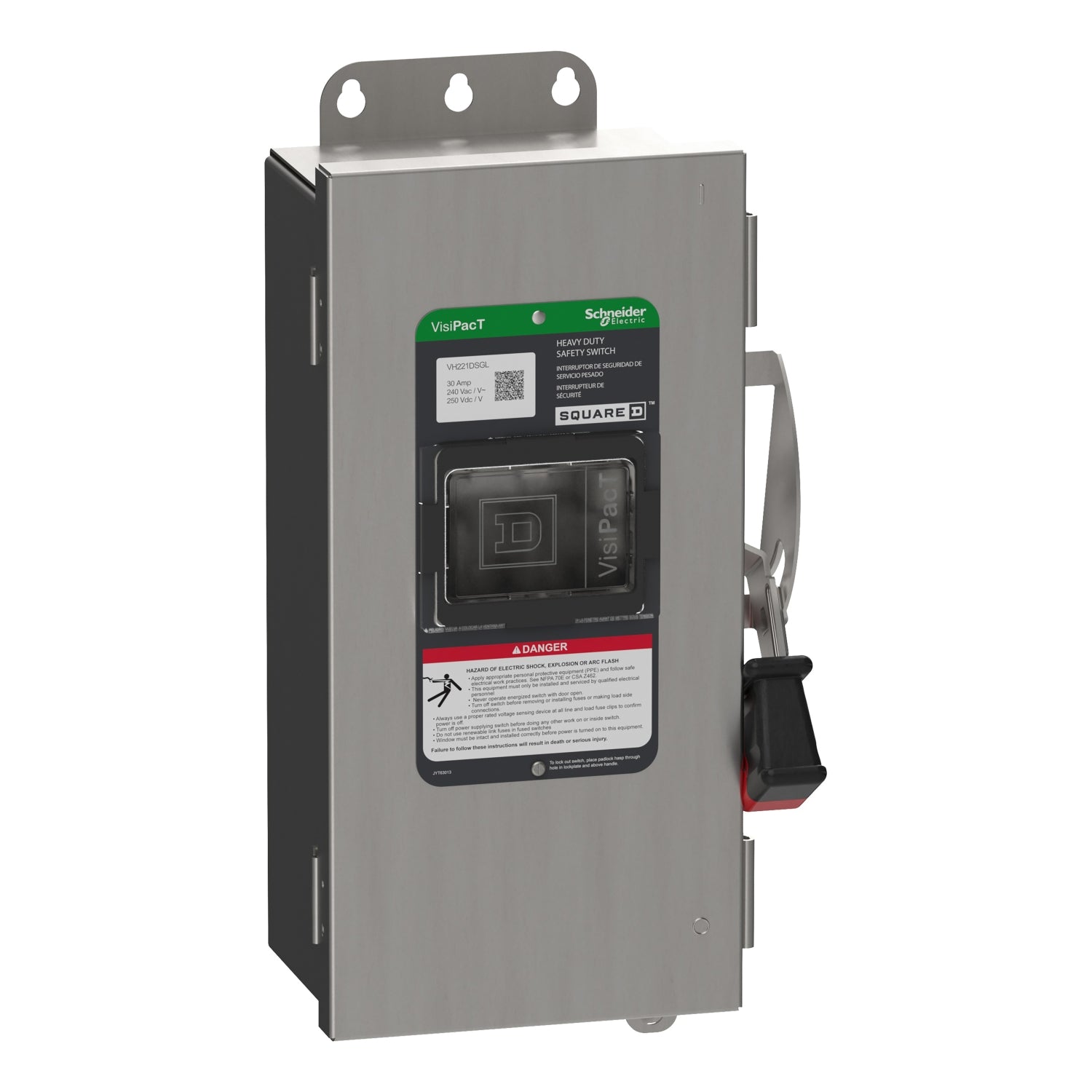

Square D VH221DSGL - Fusible Disconnect Switch 30A 240V AC (NEMA 4X Enclosure)

Square D VH221DSGL is a fusible safety disconnect switch designed for reliable circuit isolation and overload protection in industrial applications. This single-phase unit features a 240V AC voltage rating and 30A current capacity with two-pole configuration for comprehensive circuit interruption. The rugged NEMA 4X-rated enclosure measures 7-1/4 x 15 inches and accommodates wire sizes from AWG 14 to AWG 6 for both aluminum and copper conductors. Certified to UL standards (file E2875) and EU RoHS compliance, this disconnect accepts H, K, R, and J class fuses for versatile protection schemes. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring safe maintenance operations.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 7-1/4 x 15 inches
• Standards: UL listed (file E2875), EU RoHS compliant
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: H, K, R, J
• Wire: 3
• Wire Size: AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
• Nema Rating: NEMA 4X
• Weight: 13.23 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589305
• GTIN: 03606485893051
