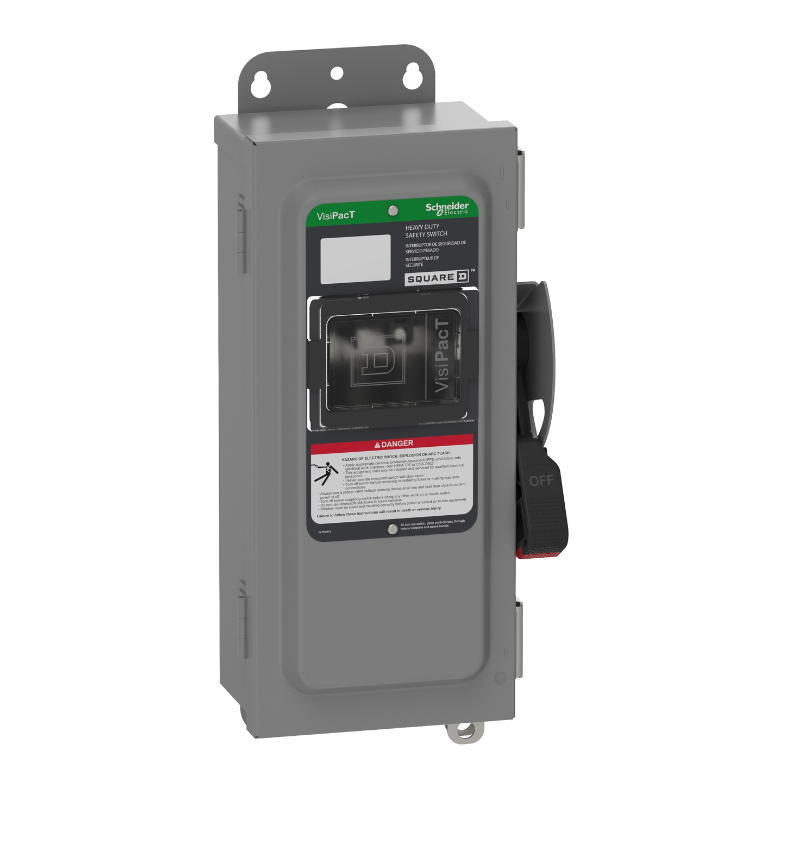

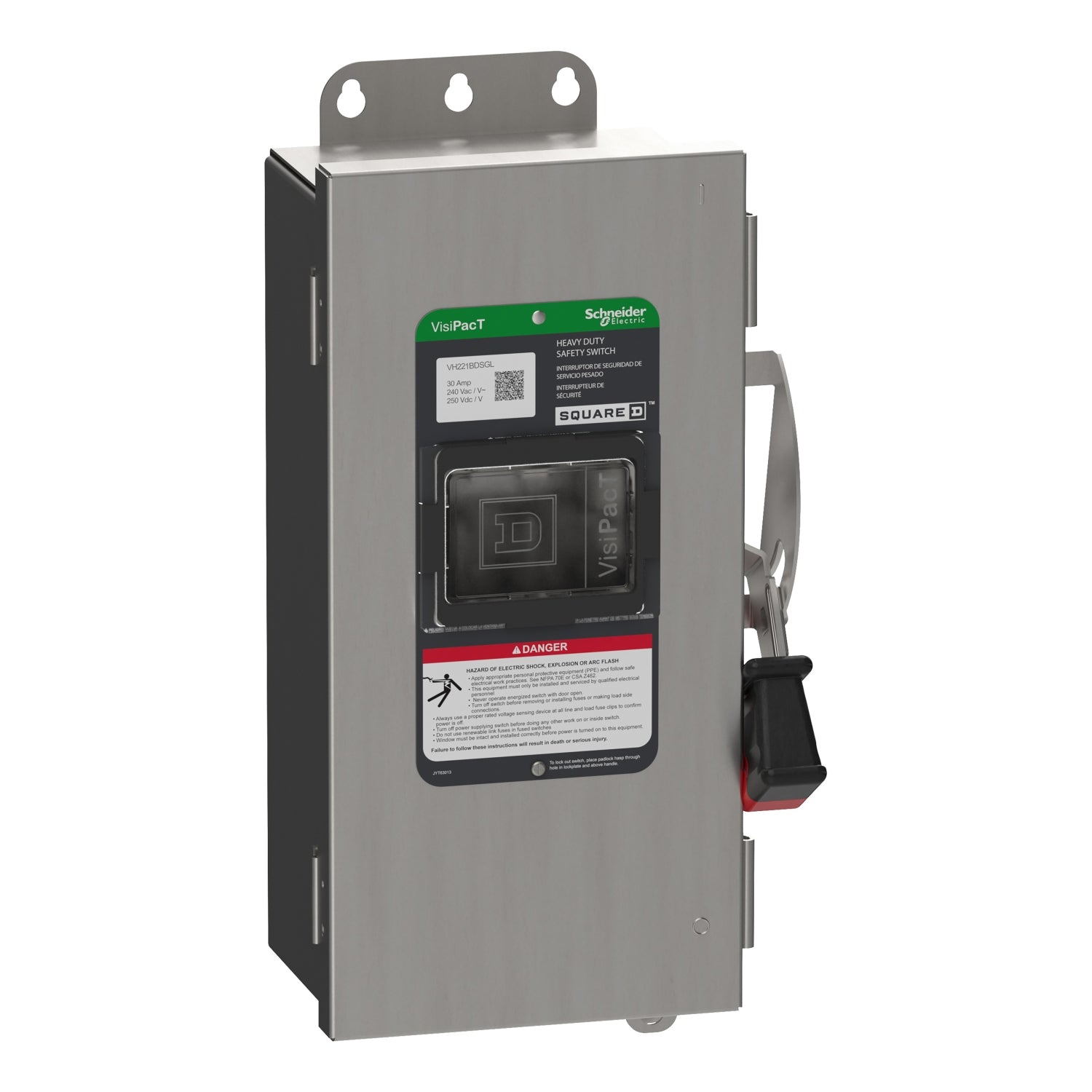

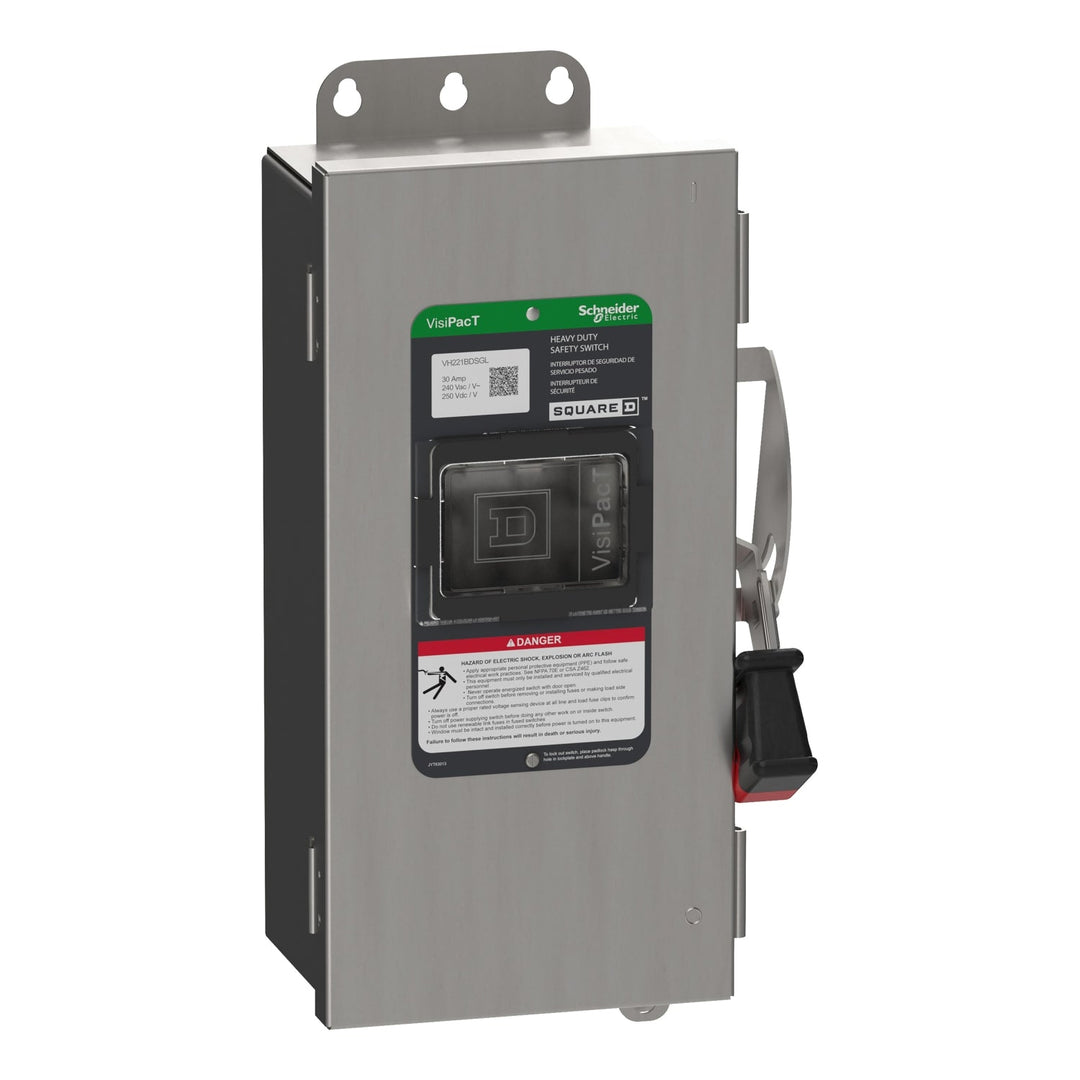

Square D VH221BDSGL - Fusible Disconnect Switch 30A 240V (NEMA 4X Enclosure)

Square D VH221BDSGL is a fusible safety disconnect switch designed for reliable circuit isolation and overload protection in industrial applications. This single-phase unit features a 240V AC voltage rating and 30A current capacity with two-pole configuration for comprehensive circuit interruption. Constructed with rugged NEMA 4X rated enclosure for corrosion resistance and weatherproof operation, the switch accommodates three-wire connections and weighs 11.02 lb for robust installation. UL listed under file E2877, this disconnect meets stringent safety standards for industrial electrical systems. Typical applications include motor control centers, machinery disconnects, and industrial power distribution where fused protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, industrial grade construction
• Voltage Rating: 240V AC
• Current Rating: 30A
• Configuration: Single phase, 2-pole
• Enclosure: NEMA 4X rated for corrosion and weather resistance
• Wire Connection: 3-wire compatible
• Weight: 11.02 lb
• Standards: UL listed file E2877
• Applications: Motor control centers, industrial machinery disconnects, power distribution systems
• Certification: UL listed
• Switch Style: Fusible
• Nema Rating: NEMA 4X
• Phase: 1
• Country of Origin: United States

Product Identification

• UPC: 060648589303
• GTIN: 03606485893037
