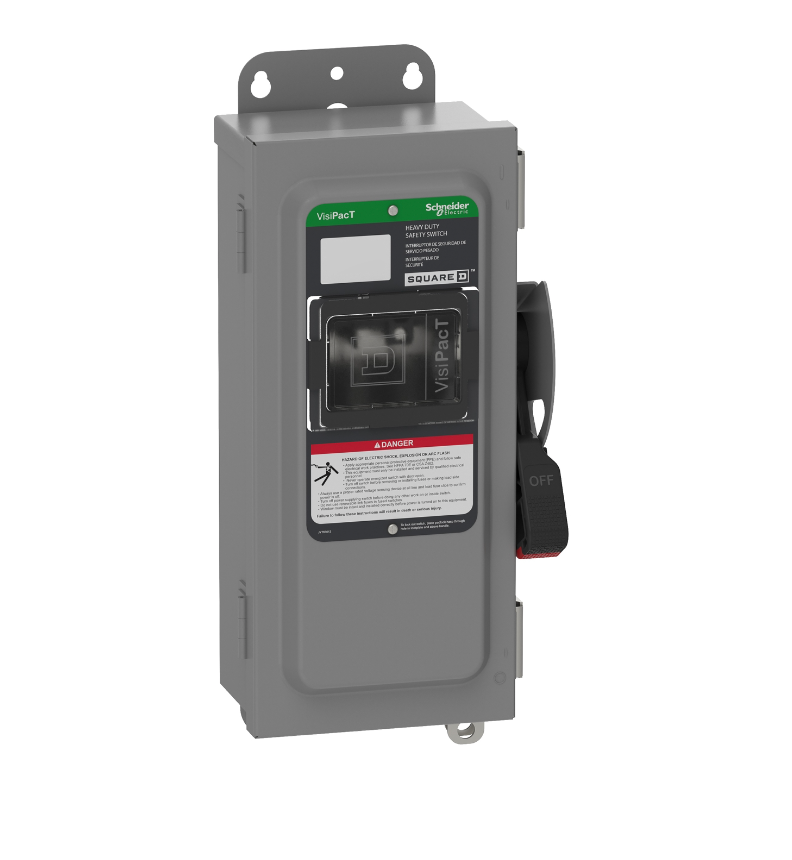

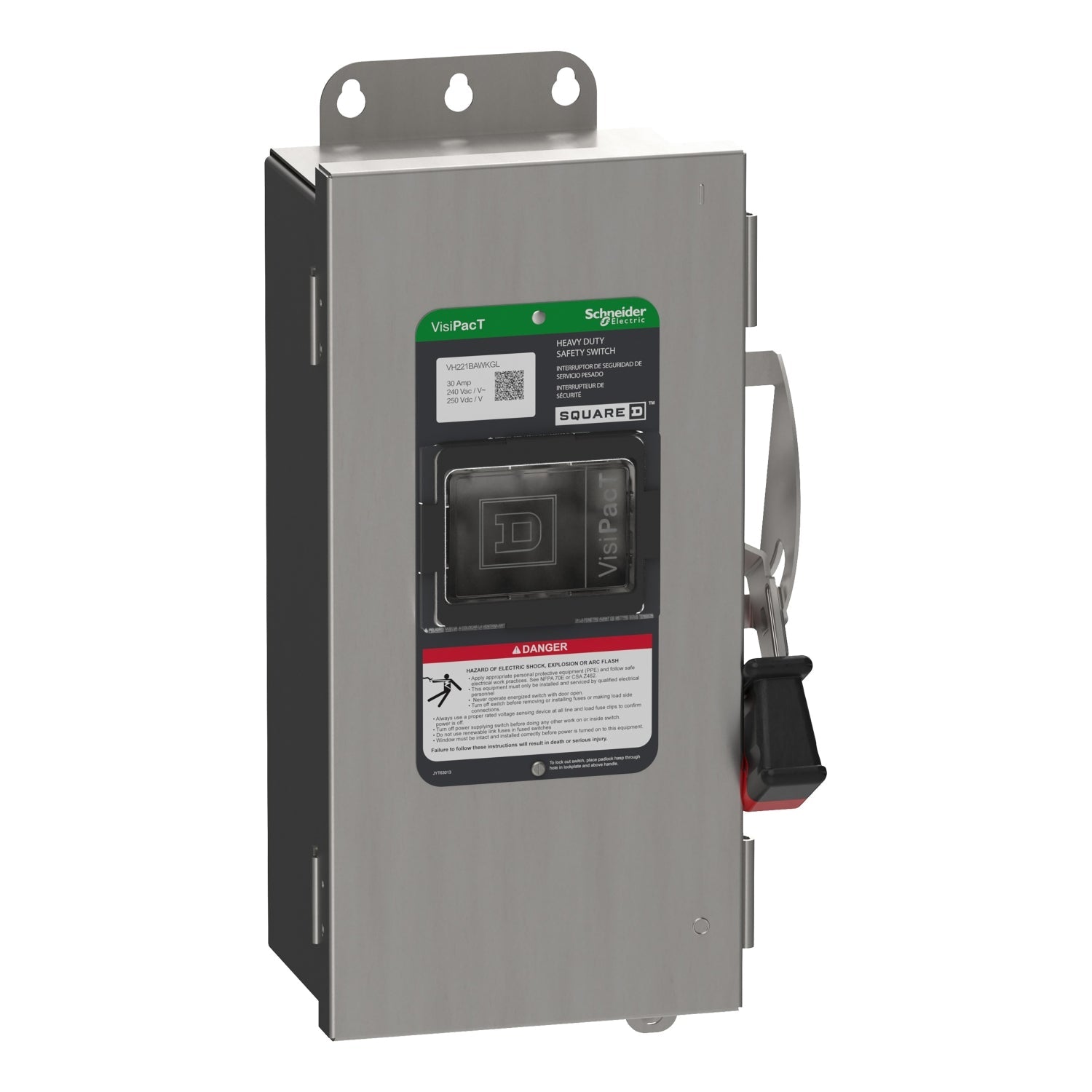

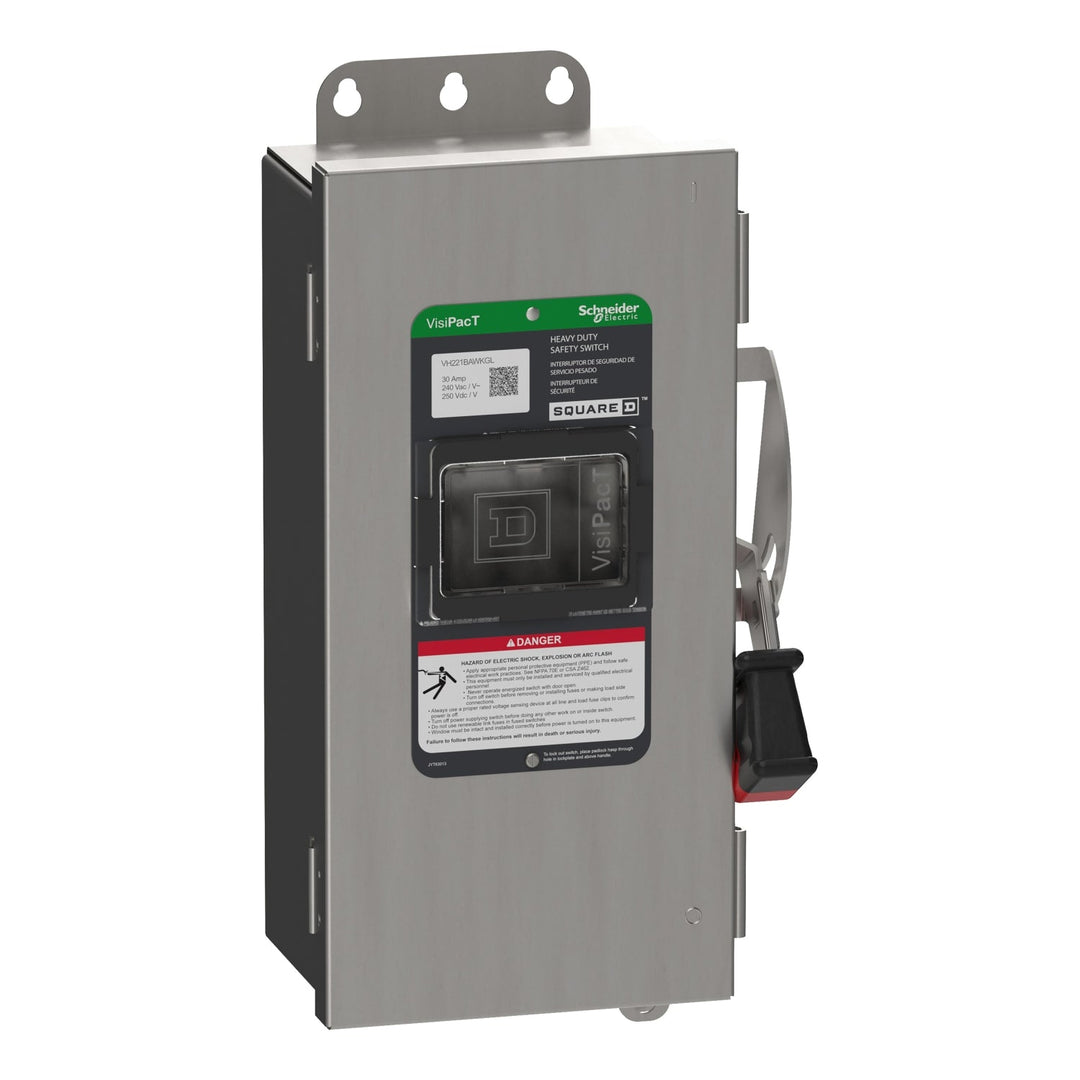

Square D VH221BAWKGL - Fusible Disconnect Switch 30A 240V (NEMA 12 Enclosure)

Square D VH221BAWKGL is a fusible safety disconnect switch designed for reliable circuit protection in industrial applications. This 2-pole, single-phase switch operates at 240V AC with a 30A current rating and features Class J fuse compatibility for enhanced safety. The unit features a compact NEMA 12 enclosure measuring 370.08 mm high × 112.78 mm wide × 78.49 mm deep and weighs 11.02 lb, constructed with durable industrial-grade materials. It carries UL certification (file E2876) and meets relevant industry standards for electrical safety. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring secure isolation capabilities.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade operation
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 370.08 mm H × 112.78 mm W × 78.49 mm D (14.57 in × 4.44 in × 3.09 in)
• Standards: UL Listed (File E2876), NEMA 12 rated
• Applications: Industrial machinery, motor control centers, electrical distribution systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 2
• Phase: 1
• Fuse Class: J
• Wire: 3
• Nema Rating: NEMA 12
• Certification: UL listed file E2876
• Country of Origin: United States
• Weight: 11.02 lb
• Family: VH

Product Identification

• UPC: 060648589302
• GTIN: 03606485893020
