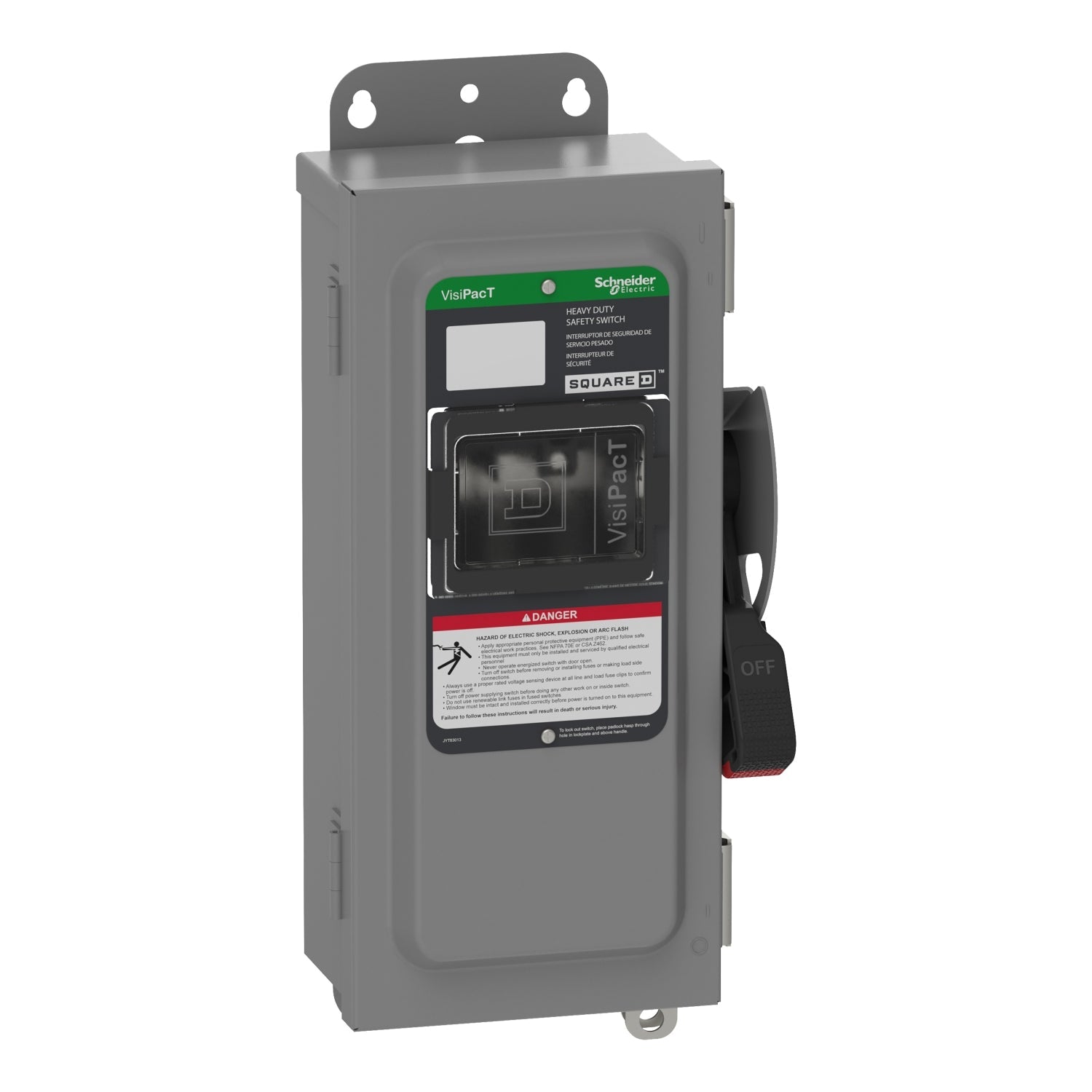

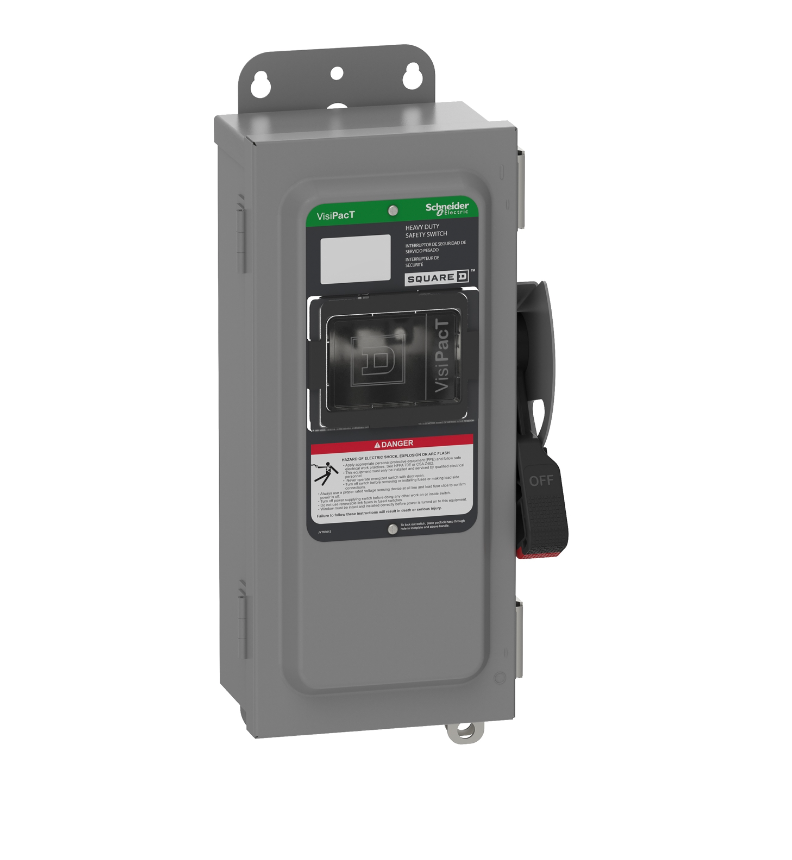

Square D VH221AWKGL - Fusible Disconnect Switch 240V 30A (NEMA 12 Enclosure)

Square D VH221AWKGL is a fusible disconnect switch designed for circuit protection in industrial electrical systems. This UL-listed (file E2875) device features a 240V voltage rating and 30A current capacity with NEMA 12-rated enclosure protection. The compact unit (370.08 x 143.26 x 136.65 mm) weighs 11.02 lb and accepts H/K/R/J class fuses with 2-pole single-phase configuration. Compliant with North American safety standards, it accommodates AWG 12-6 aluminum or AWG 14-6 copper wiring for motor control and power distribution applications.

Key Features & Specifications

• Type: Fusible disconnect switch with NEMA 12 enclosure
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 370.08 x 143.26 x 136.65 mm (14.57 x 5.64 x 5.38 in)
• Standards: UL listed (E2875), NEMA 12 compliant
• Applications: Industrial motor control, power distribution panels
• Switch Type: Fusible
• Configuration: Single
• Poles: 2
• Phase: 1
• Wire Size: AWG 12-6 aluminum / AWG 14-6 copper
• Fuse Class: H, K, R, J
• Weight: 11.02 lb
• Country of Origin: United States

Product Identification

• UPC: 060648589304
• GTIN: 03606485893044
