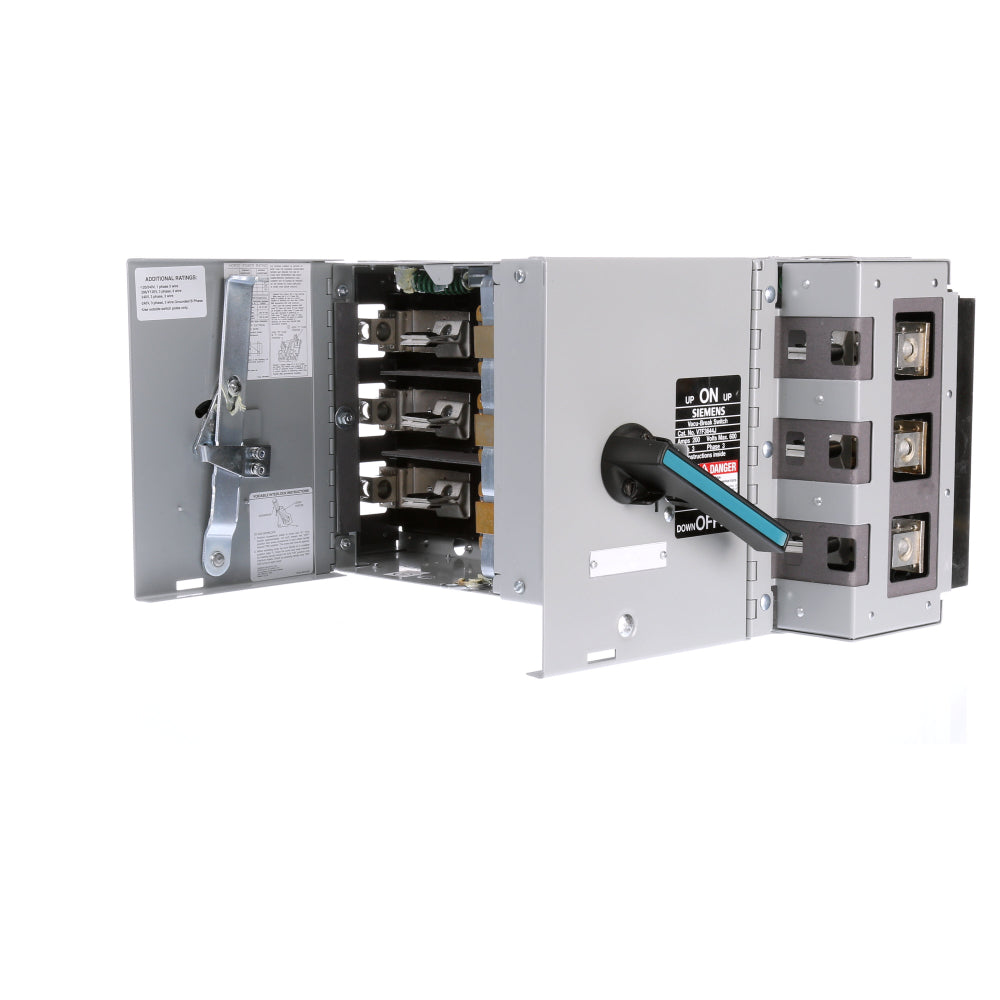

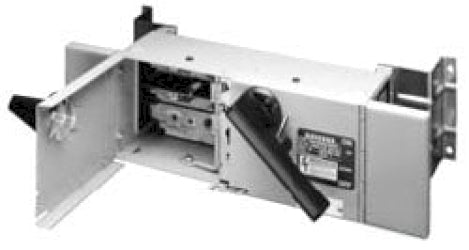

ITE V7F3644J - Fusible Safety Switch 600V/200A (200kA AIC @480V)

The ITE V7F3644J is a panel-mounted fusible safety switch designed for high-current industrial power distribution with 200kA interrupting capacity at 480V. This 3-phase switch features a 600V AC rating and 200A current capacity in a compact 12.992" x 23.622" x 10.63" NEMA 1 enclosure constructed with durable Vacu-Break technology. Compliant with UL standards, the dual/twin configuration switch utilizes Class J fuses and is compatible with PLP frames for industrial motor control and main power disconnect applications.

Key Features & Specifications

• Type: Fusible safety switch with Vacu-Break technology
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 12.992" x 23.622" x 10.63" (330mm x 600mm x 270mm)
• Standards: UL listed, NEMA 1
• Applications: Industrial power distribution, motor control
• Switch Type: Fusible
• Configuration: Dual/Twin
• Poles: 3
• AIC rating: 200kA@480V
• Phase: 3
• Fuse Class: J
• Compatible Frames: PLP
• Weight: 45 lb (20.4 kg)
• Country of Origin: United States

Product Identification

• UPC: 783643629530
• GTIN: 00783643629530
