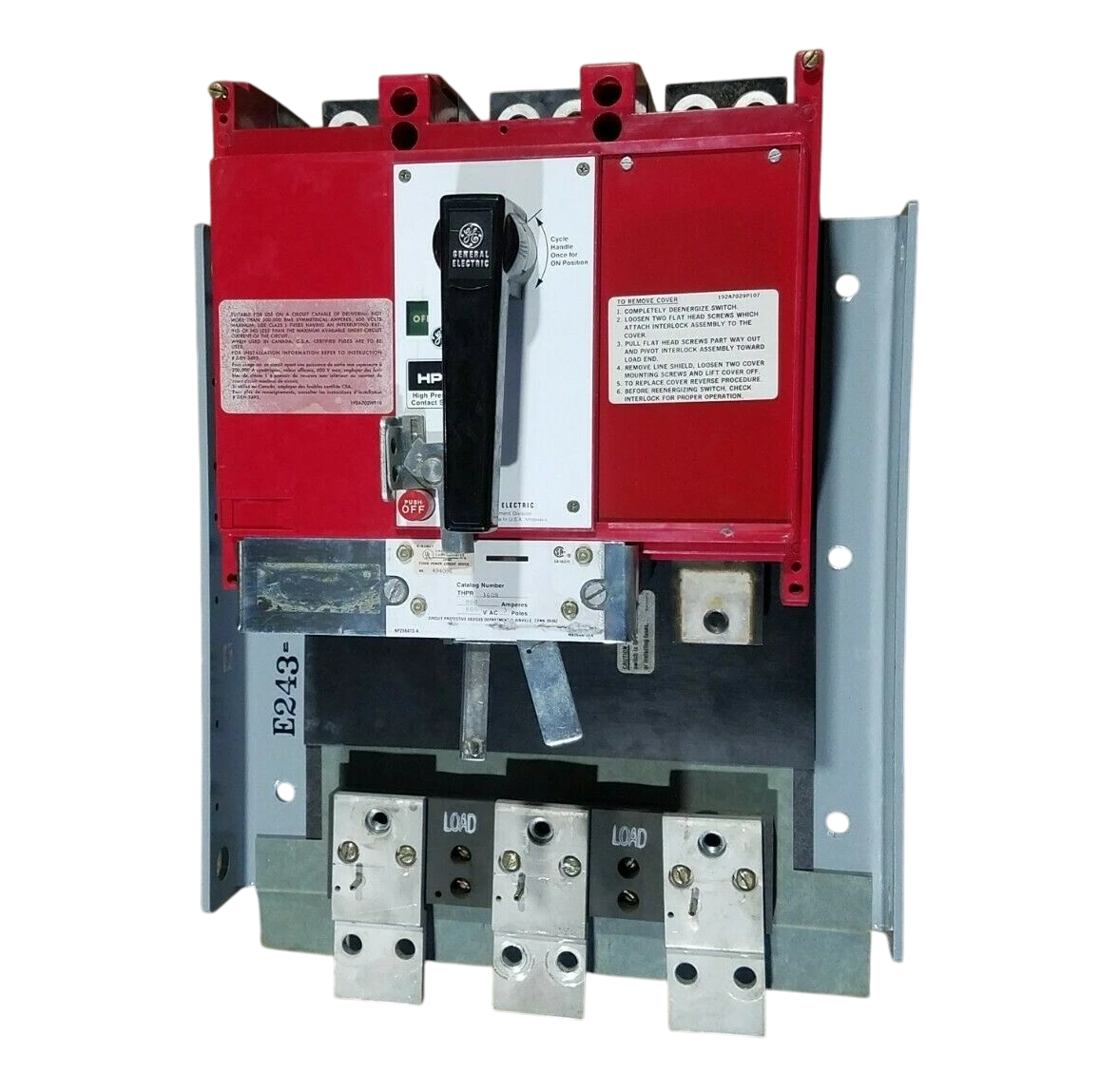

General Electric THPC3620BG3T - Fusible Safety Switch 600V/2000A (200kA AIC @480V)

General Electric THPC3620BG3T is a heavy-duty fusible safety switch designed for industrial power distribution systems requiring high interrupting capacity. This 600V AC-rated disconnect features a 2000A current rating and 200kA AIC at 480V for robust short-circuit protection in three-phase applications. The Type HPC switch employs Class L fuses in a single-configuration, 3-pole design with LEP frame compatibility, housed in a durable 195 lb enclosure. It meets stringent industrial safety standards for fusible disconnects in demanding environments. Typical applications include motor control centers, large machinery power feeds, and main service entrance disconnects.

Key Features & Specifications

• Type: THPC fusible safety switch with Class L fuse compatibility
• Voltage Rating: 600V AC
• Current Rating: 2000A
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 480V
• Switch Style: Fusible
• Compatible Frames: LEP
• Weight: 195 lb
• Standards: Industrial safety compliance for fusible disconnects
• Applications: Industrial power distribution, motor control centers, main service disconnects
