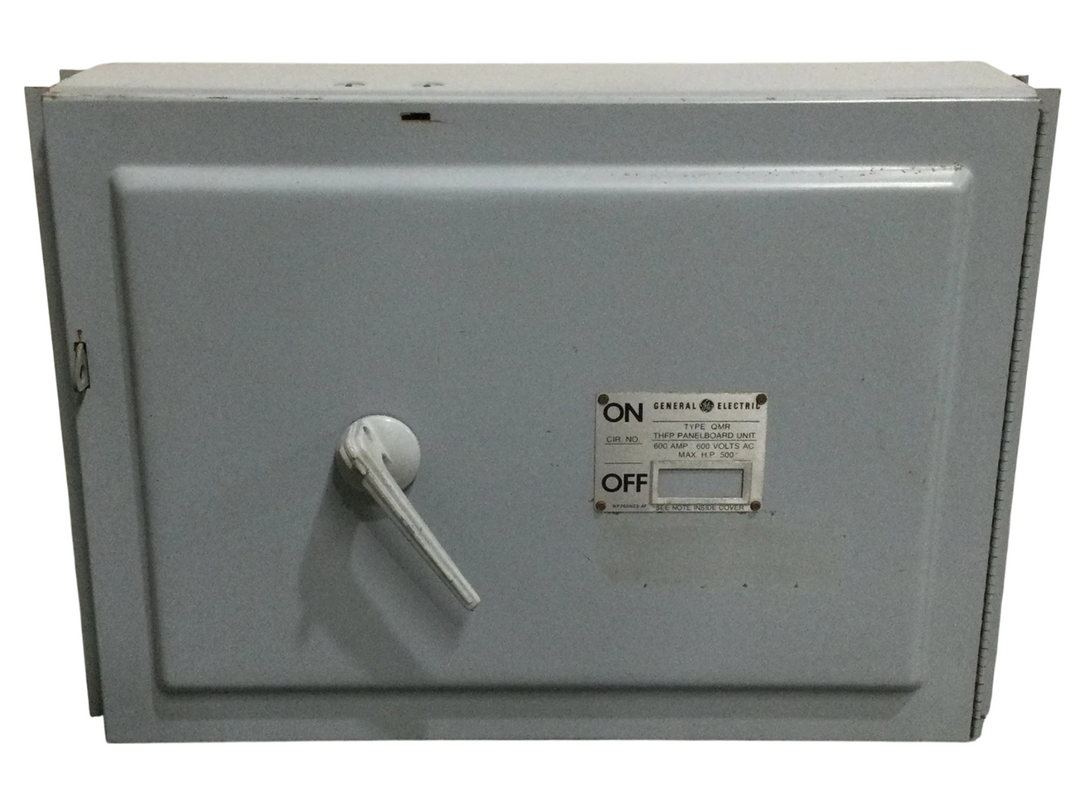

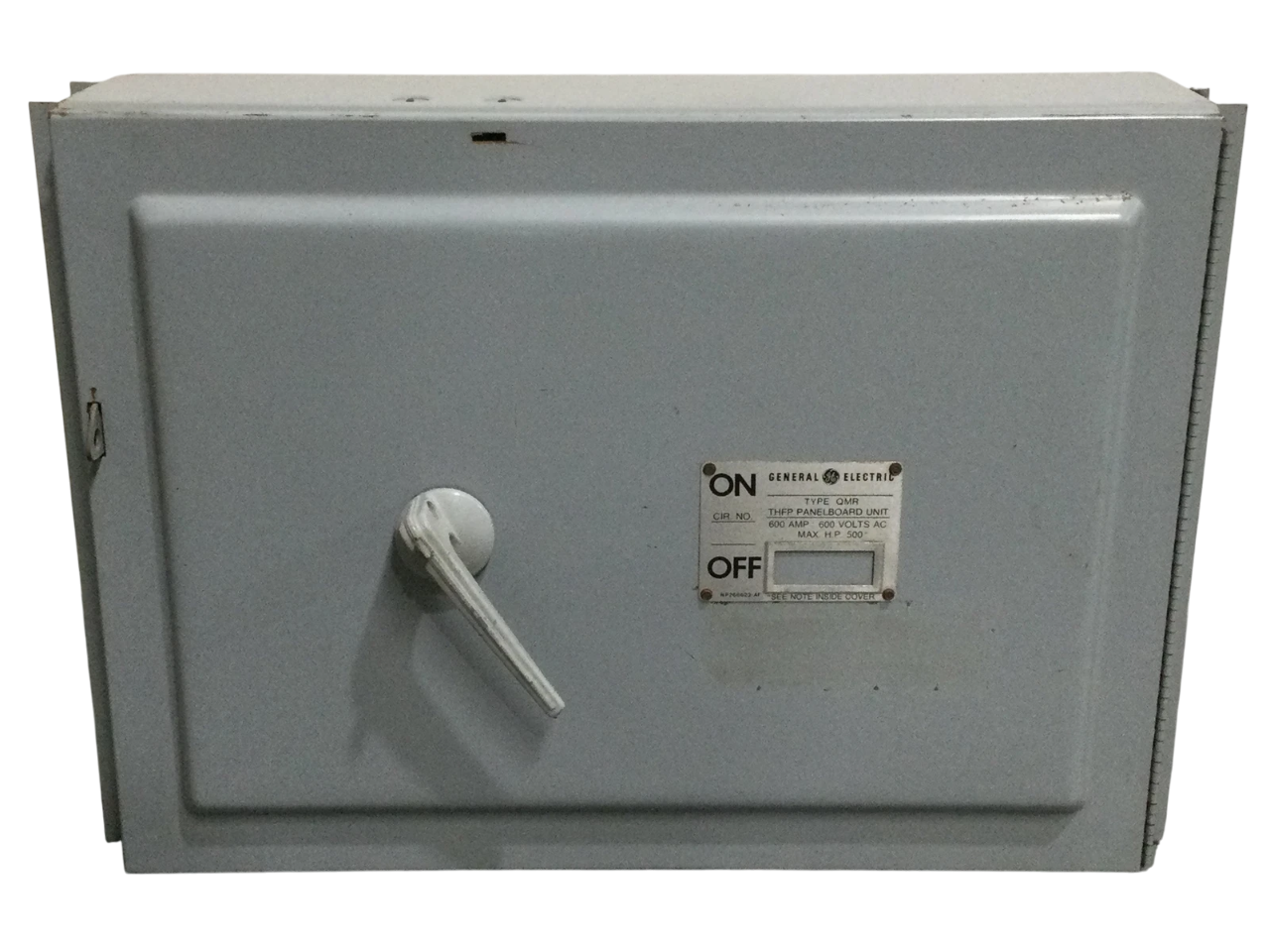

General Electric THFP366R - Fusible Safety Switch 600A 600V (200kA AIC @480V)

General Electric THFP366R is a fusible panel-mounted safety switch designed for industrial power distribution protection. This 600V/600A three-phase switch features a rugged NEMA 1 enclosure with H/R-class fuse compatibility and a 200kA interrupting capacity at 480V for high-fault protection. The single-configuration THFP-type switch weighs 65 lb and is engineered for ED-frame compatibility, meeting industrial electrical standards for reliable circuit isolation. Typical applications include motor control centers, heavy machinery, and commercial power distribution systems requiring robust overcurrent protection.

Key Features & Specifications

• Type: THFP fusible safety switch, panel mount
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: NEMA 1 enclosure
• Standards: Industrial electrical compliance
• Applications: Power distribution, motor control centers
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@480V
• Fuse Class: H, R
• Compatible Frames: ED
• Weight: 65 lb
