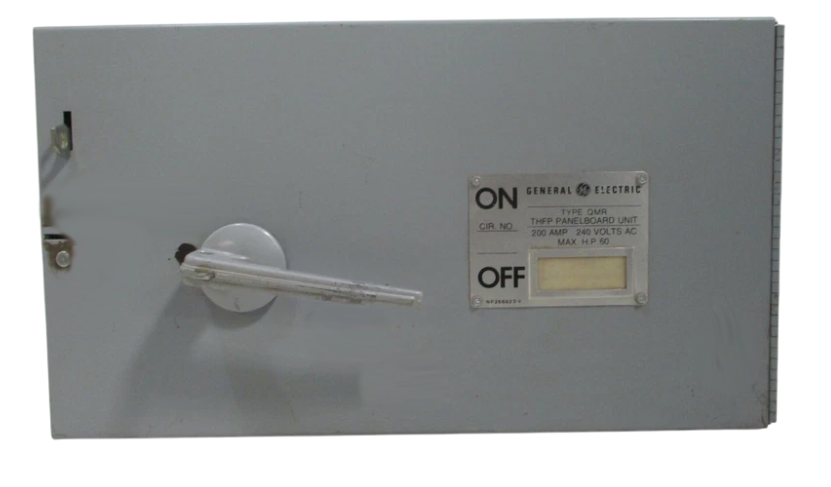

General Electric THFP324R - Fusible Safety Switch 200A (200kA AIC @480V)

General Electric THFP324R is a fusible safety switch designed for industrial power distribution protection. This 240V AC panel-mount switch handles 200A continuous current with a 200kA interrupting capacity at 480V, featuring a rugged NEMA 1-rated enclosure for indoor use. The three-pole single-configuration unit employs Class H/R fuses and integrates with ED-frame systems, providing reliable circuit isolation. UL-listed and compliant with industrial safety standards, it's engineered for heavy-duty applications in manufacturing plants, data centers, and commercial facilities.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, Type THFP
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@480V
• Fuse Class: H, R
• NEMA Rating: 1
• Compatible Frames: ED
• Weight: 35 lb
• Standards: UL listed
• Applications: Industrial power distribution, motor control, facility main disconnects

Product Identification

• GTIN: 00621037111127
