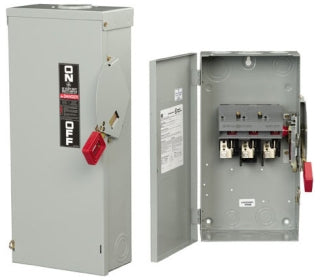

General Electric TH3363 - Fusible Safety Switch 100A 600V (3-Pole NEMA 1)

General Electric TH3363 is a fusible safety switch designed for reliable circuit isolation and protection in industrial power distribution systems. This 600V AC rated disconnect switch handles 100A continuous current with a 200kA interrupting capacity at 600V for robust short-circuit protection. The rugged NEMA 1 enclosure houses a three-pole single configuration construction weighing 20 lb, engineered for durable performance in demanding environments. It complies with industry standards for safety disconnects and is compatible with EEHEF frames for seamless integration. Typical applications include motor control centers, industrial machinery, and electrical distribution panels where safe maintenance and overload protection are critical requirements.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Spec-Setter family, TH type
• Voltage Rating: 600V AC
• Current Rating: 100A
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@600V
• Fuse Class: R
• NEMA Rating: NEMA 1
• Compatible Frames: EEHEF
• Switch Style: Fusible
• Weight: 20 lb
• Item Subcategory: Disconnect

Product Identification

• UPC: 783164009132
• GTIN: 00782274046501
