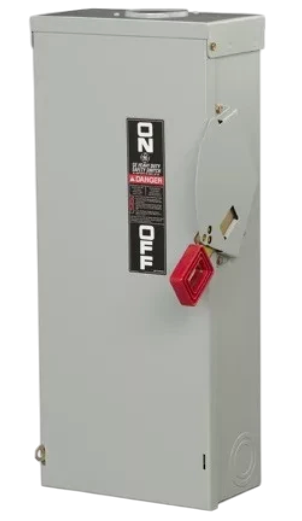

General Electric TH3325R - Fusible Safety Switch 400A@240V (200kA AIC)

General Electric TH3325R is a heavy-duty disconnect switch designed for industrial power distribution systems requiring high interrupting capacity. This 3-phase switch features a 240V voltage rating and 400A current handling capacity, with a robust 128 lb construction built for demanding environments. The TH-series unit meets industry standards with its 200kA@240V AIC rating and R-class fuse compatibility, engineered for integration with JD-frame equipment. Typical applications include motor control centers, panelboards, and main service disconnects in commercial/industrial facilities.

Key Features & Specifications

• Type: TH-series fusible safety switch with single configuration
• Voltage Rating: 240V AC
• Current Rating: 400A
• Phase: 3
• AIC Rating: 200kA@240V
• Fuse Class: R
• Compatible Frames: JD
• Weight: 128 lb
• Standards: UL/CSA compliant
• Applications: Industrial power distribution, motor control centers, service disconnects

Product Identification

• UPC: 783164009040
