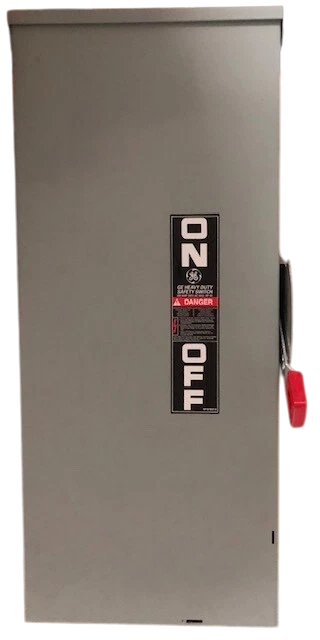

General Electric TH3224R - Fusible Disconnect Switch 200A (NEMA 3R, 200kA AIC)

General Electric TH3224R is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This single-phase device operates at 240V AC with a 200A current rating and features a robust NEMA 3R enclosure suitable for outdoor installations. The switch incorporates Class R fuse compatibility and delivers 200kA interrupting capacity at 240V for superior fault protection. Constructed with two poles in a compact configuration, it meets industrial safety standards for electrical distribution systems. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure isolation is critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Spec-Setter family, TH series
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single phase, 2 poles
• AIC Rating: 200kA @ 240V
• Fuse Class: R
• NEMA Rating: 3R (rainproof, sleet-resistant)
• Compatible Frames: FD
• Weight: 30 lb
• Enclosure: Industrial-grade with secure isolation capability
• Applications: Motor control centers, industrial machinery, power distribution panels

Product Identification

• UPC: 783164009002
• GTIN: 00783164008982
