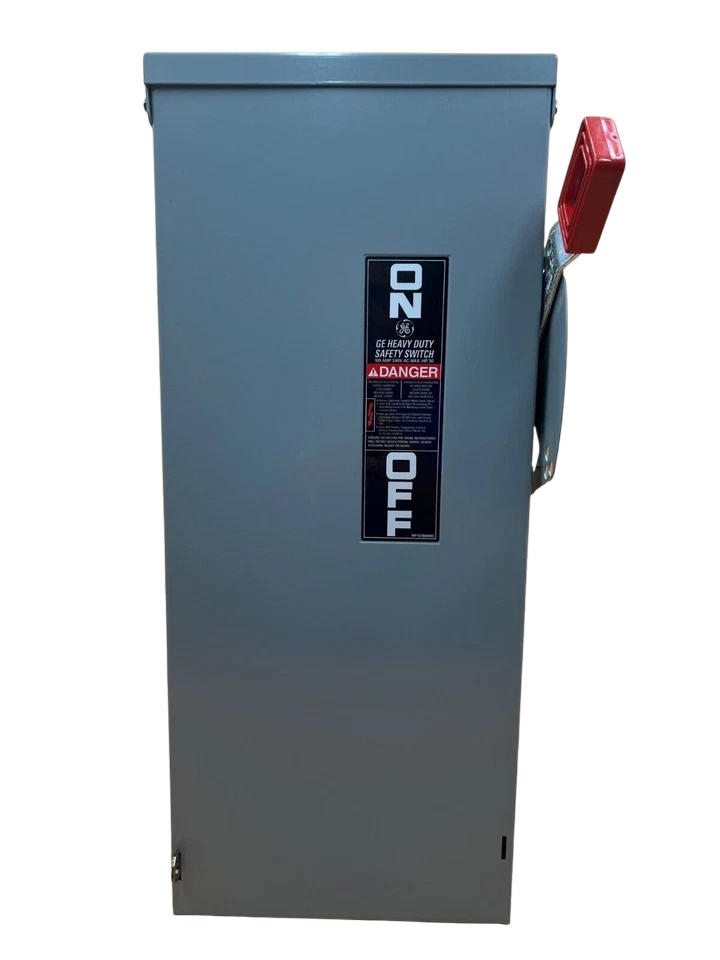

General Electric TH3223R - Fusible Disconnect Switch 100A 240V (NEMA 3R Enclosure)

General Electric TH3223R is a fusible safety disconnect switch designed for circuit isolation and protection in industrial applications. This 240V AC single-phase switch features a 100A current rating and 200kA interrupting capacity at 240V for reliable fault protection. The rugged NEMA 3R enclosure houses a two-pole configuration with Class R fuse compatibility, constructed for durable performance in demanding environments. Compliant with industrial safety standards, this Spec-Setter family device ensures proper circuit isolation and protection. Typical applications include industrial control panels, machinery disconnects, and electrical distribution systems requiring secure power interruption.

Key Features & Specifications

• Type: Fusible safety disconnect switch, TH series
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Single phase
• Poles: 2
• AIC Rating: 200kA@240V
• Fuse Class: R
• NEMA Rating: 3R
• Compatible Frames: FD
• Switch Style: Fusible
• Weight: 15 lb
• Family: Spec-Setter
• Item Subcategory: Disconnect

Product Identification

• UPC: 783164008982
• GTIN: 00783164008982
