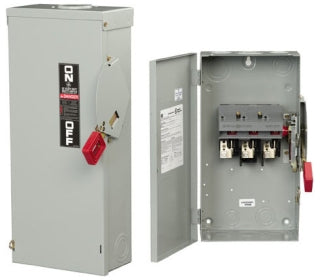

General Electric TH3223 - Fusible Disconnect Switch 240V 100A (200kA AIC)

General Electric TH3223 is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This single-phase unit features a 240V voltage rating and 100A current capacity with a 200kA interrupting rating at 240V for high-fault protection. The NEMA 1-rated enclosure houses a rugged 2-pole configuration with R-class fuse compatibility, constructed with a 25 lb steel frame for durability in demanding environments. Compliant with industrial safety standards, this Spec-Setter family device is engineered for FD frame compatibility in electrical distribution panels, motor control centers, and machinery disconnects.

Key Features & Specifications

• Type: Fusible disconnect switch with R-class fuse compatibility
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Single-phase, 2-pole
• AIC Rating: 200kA@240V
• NEMA Rating: NEMA 1
• Compatible Frames: FD series
• Weight: 25 lb
• Switch Style: Fusible safety disconnect

Product Identification

• UPC: 783164008999
• GTIN: 00783164000000
