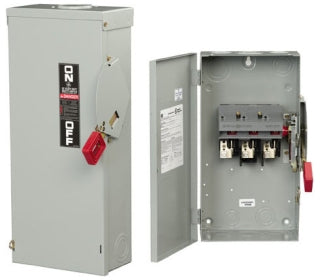

General Electric TH3222 - Fusible Disconnect Switch 60A@240V (200kA AIC NEMA 1)

General Electric TH3222 is a fusible safety disconnect switch designed for industrial power distribution protection. This single-phase switch features a 240V voltage rating and 60A current capacity with a 200kA interrupting rating at 240V for robust circuit protection. The NEMA 1-rated enclosure houses two poles in a compact 15 lb fusible configuration compatible with ED frames, using Class R fuses for enhanced safety. It meets industrial standards for electrical disconnects, providing reliable isolation in maintenance scenarios. Typical applications include motor control centers, HVAC systems, and industrial machinery requiring secure power interruption.

Key Features & Specifications

• Type: Fusible safety disconnect switch (Class R fuse compatibility)
• Voltage Rating: 240V AC
• Current Rating: 60A
• Configuration: Single-phase, 2-pole
• AIC Rating: 200kA @ 240V
• NEMA Rating: NEMA 1
• Compatible Frames: ED series
• Weight: 15 lb
• Standards: Industrial electrical safety compliance
• Applications: Motor controls, HVAC, industrial power distribution

Product Identification

• UPC: 783164008975
• GTIN: 00783164000000
