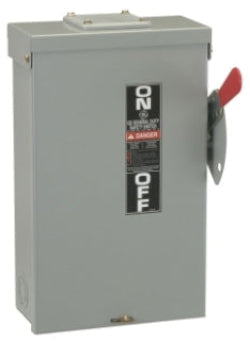

General Electric TGN3323R - Non-Fusible Disconnect Switch 100A 240V 3-Pole (NEMA 3R)

General Electric TGN3323R is a heavy-duty disconnect switch designed for industrial power isolation and safety applications. This 3-pole switch operates at 240V AC with a 100A current rating and features a 100kA interrupting capacity at 240V for reliable circuit protection. Constructed with a robust non-fusible design and NEMA 3R rated enclosure, it withstands harsh environmental conditions while maintaining 15 lb of durable industrial construction. The switch complies with UL and CSA safety standards, ensuring reliable performance in demanding industrial settings. Typical applications include motor control centers, industrial machinery, and electrical distribution systems requiring secure power isolation.

Key Features & Specifications

• Type: Non-Fusible Disconnect Switch, Spec-Setter Family, TGN Type
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Single
• Poles: 3
• Phase: 3-Phase
• AIC Rating: 100kA@240V
• NEMA Rating: NEMA 3R
• Standards: UL, CSA Certified
• Compatible Frames: ED Frame
• Weight: 15 lb
• Applications: Industrial power distribution, motor control centers, machinery isolation

Product Identification

• UPC: 783164008814
• GTIN: 00783164253375
