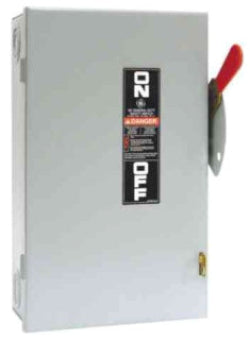

General Electric TGN3322 - Non-Fusible Disconnect Switch 240V 60A (100kA AIC @240V)

General Electric TGN3322 is a non-fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This 3-phase switch features a 240V voltage rating and 60A current capacity with a 100kA interrupting rating at 240V for robust short-circuit protection. The NEMA 1-rated enclosure houses three single-configuration poles in a compact 10 lb assembly compatible with ED frames. Compliant with industrial safety standards, this Spec-Setter family device is engineered for motor control centers, HVAC systems, and heavy equipment power management where manual disconnection is required.

Key Features & Specifications

• Type: Non-fusible disconnect switch, manual operation
• Voltage Rating: 240V AC
• Current Rating: 60A
• Configuration: Single
• Poles: 3
• AIC Rating: 100kA@240V
• Phase: 3
• NEMA Rating: NEMA 1
• Compatible Frames: ED
• Switch Style: Non-Fusible
• Weight: 10 lb

Product Identification

• UPC: 783164008807
• GTIN: 00783164000000
